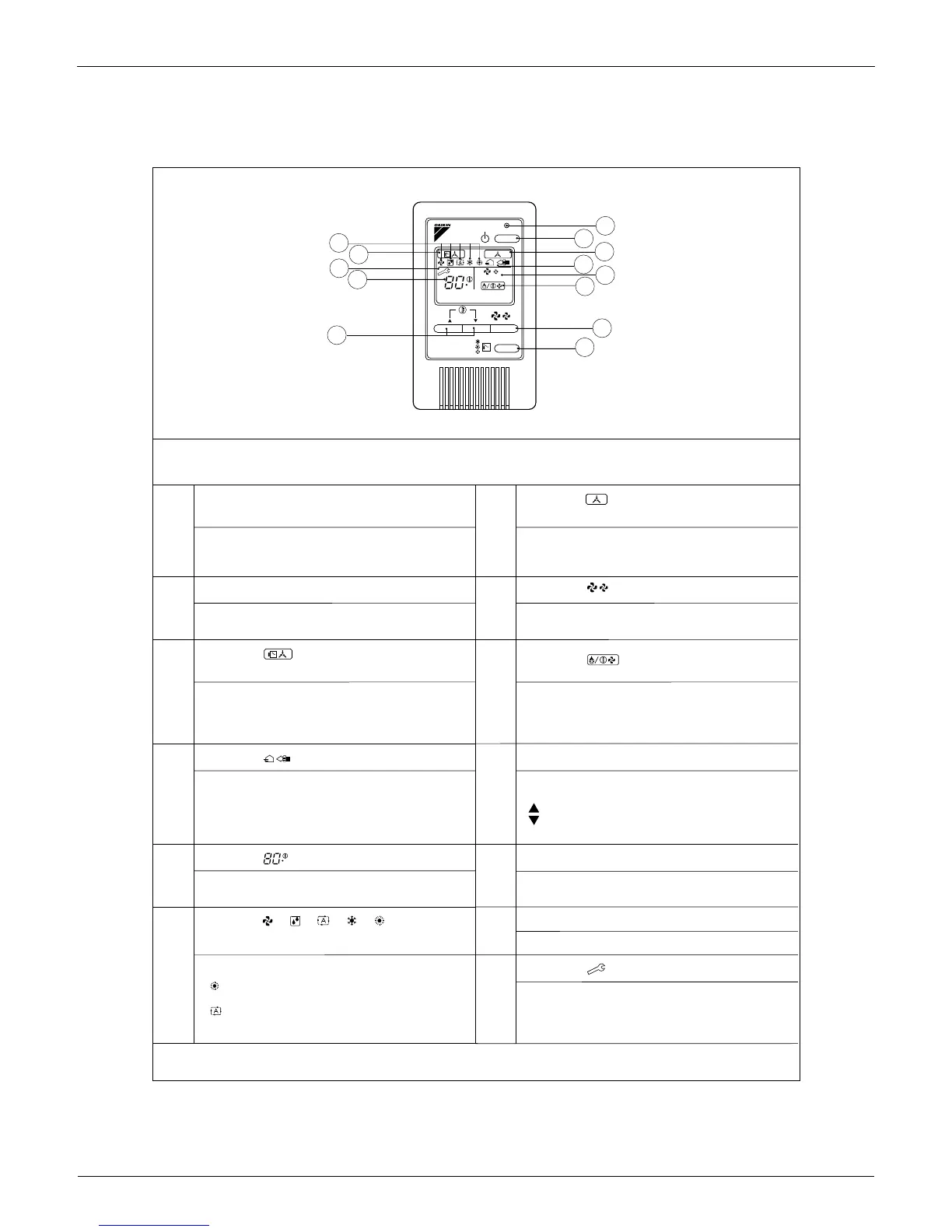

8. Capacity Tables
8.1 Cooling Capacity at Te: 43°F (6°C)
Model
Indoorairtemp.°FWB(°CWB)(Te:43°F(6°C))
61(16.1) 64(17.8) 67(19.4) 70(21.1) 72(22.2) 75(23.9)
TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
MBH MBH MBH MBH MBH MBH MBH MBH MBH MBH MBH MBH
FXHQ12MVJU 9.5 8.5 10.7 8.8 12.0 9.4 12.7 9.4 12.9 9.3 13.1 8.9
FXHQ24MVJU 18.9 15.3 21.5 16.6 24.0 17.1 25.5 17.4 25.8 17.1 26.3 16.2
FXHQ36MVJU 28.4 21.8 32.2 23.9 36.0 25.1 38.2 25.3 38.7 24.6 39.4 23.7
TC: Totalcapacity:MBH
SHC:Sensibleheatcapacity:MBH
Note:
1.ThesecapacitytablescanbeusedwhenselectingaVRVindoorunit.TheactualcapacityoftheVRVsystemdependsonfactorssuchasthe
selectedmodelofoutdoorunits,outdoorairtemperatureandpipinglength.PleaseconrmthatthecorrectedcapacityoftheVRVsystemsatises
therequiredheatload.
2.
showsratedcondition.
8.2 Heating Capacity
Model
Indoorairtemp.°FDB(°CDB)(Tc:115°F(46°C))
62(16.7) 65(18.3) 68(20.0) 70(21.1) 72(22.2) 75(23.9)
TC TC TC TC TC TC
MBH MBH MBH MBH MBH MBH
FXHQ12MVJU 14.9 14.7 14.0 13.5 13.0 12.3
FXHQ24MVJU 29.7 29.5 28.0 27.0 26.0 24.5
FXHQ36MVJU 44.6 44.2 42.0 40.0 39.0 36.8
TC:Totalcapacity:MBH
Note:
1.ThesecapacitytablescanbeusedwhenselectingaVRVindoorunit.TheactualcapacityoftheVRVsystemdependsonfactorssuchasthe
selectedmodelofoutdoorunits,outdoorairtemperatureandpipinglength.PleaseconrmthatthecorrectedcapacityoftheVRVsystemsatises
therequiredheatload.
2.
showsratedcondition.
8.3 Correction Factor for Cooling Capacity at Te: 48°F (9°C)
Refertothecorrectionfactortablebelowwhenamini-splitindoorunit
isconnectedtoaVRVHeatPumpsystemusingaBranchPortbox.
Model
Indoorairtemp.°FWB(°CWB)(Te:48°F(9°C))
57(13.9) 61(16.1) 64(17.8) 67(19.4) 70(21.1) 72(22.2) 75(23.9)
TC SHF TC SHF TC SHF TC SHF TC SHF TC SHF TC SHF
FXHQ12MVJU 0.71 1.09 0.69 1.18 0.74 1.13 0.78 1.09 0.81 1.07 0.82 1.05 0.84 1.04
FXHQ24MVJU 0.69 1.12 0.70 1.17 0.74 1.13 0.78 1.09 0.81 1.07 0.82 1.06 0.84 1.06
FXHQ36MVJU 0.69 1.12 0.70 1.17 0.75 1.12 0.79 1.08 0.82 1.06 0.83 1.06 0.85 1.06
TC: Totalcapacity
SHF:Sensibleheatfactor
