Daikin LX10F11B User Manual

2-14

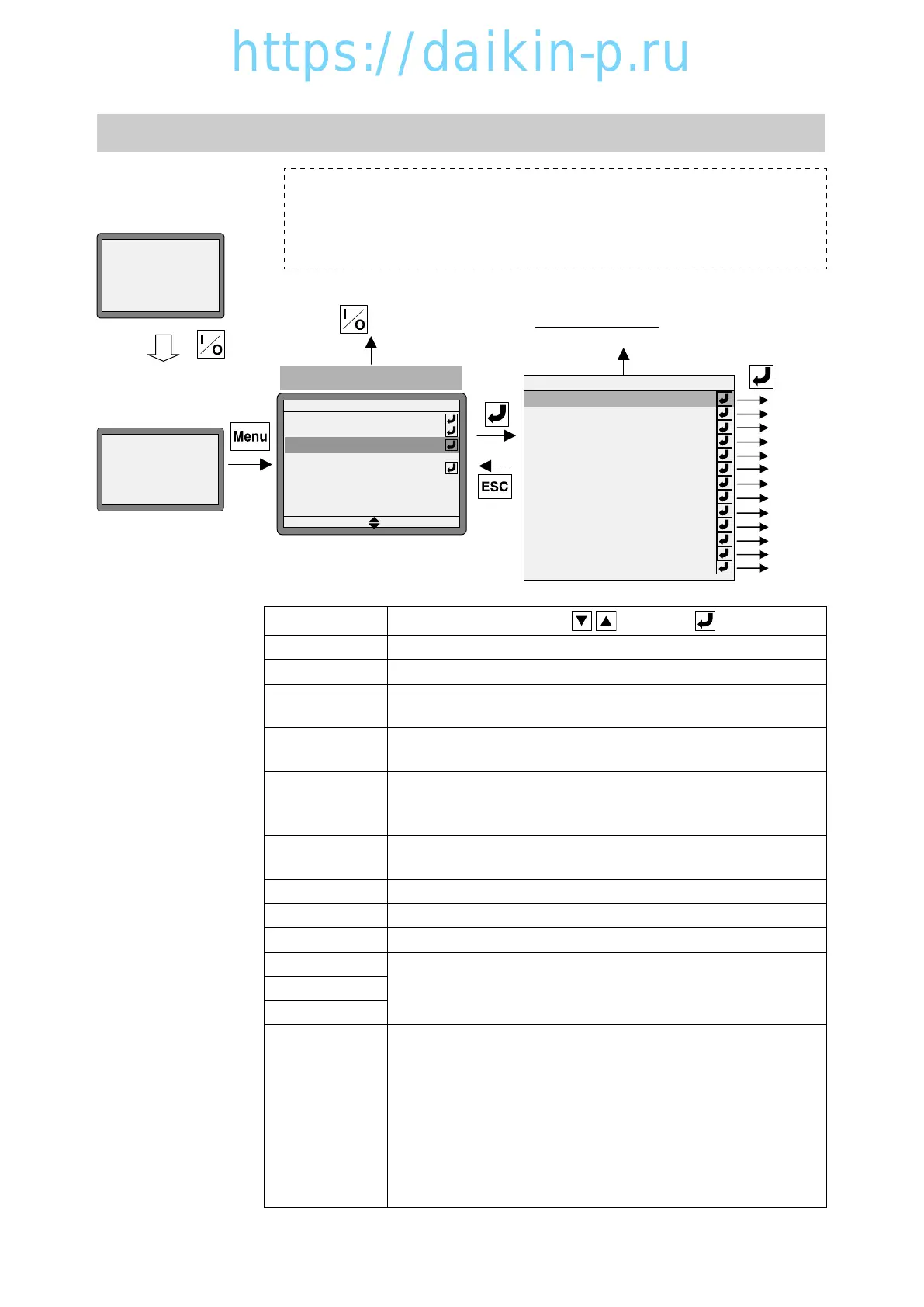

※12 Configuration Set
Circuit Breaker OFF after
setting change
UNIT OFF
ON
Initialize Menu
Manual Check
Config Set
Optional Function
PTI Menu
USB Menu
[Initialize Menu]
OFF
Preparation 10 sec.
System Check
10
Container ID DILU1234567
Controller Date DD/MM/YYYY
Controller Time 17 : 00
SoftwareVer. 3031
Config Set
Controller model
Log Interval
Reheat Coil
Ventilation (FA)
USDA Type
Container I.D.
Controller Date
Controller Time
DECOS
Va
60 min
ON
OFF
Type 2
DILU 1234567
DD/MM/YYYY
17 : 00
＊
12-1
＊
12-2
＊
12-3
＊
12-4
＊
12-5
＊
12-6
＊
12-7
＊
12-8
＊
12-9
H006
Temp Unit
C
Pressure Unit
kPa
Ventilation Unit
m3/h
Optional Sensor
ON
＊
12-10
＊
12-11
＊
12-12
＊
12-13
Caution !!
1. Optional function setting is done at factory. Normally, setting change at
field is not necessary.
2. Ensure the circuit breaker is switched OFF after Configuration Set change.
Title display Setting Charge ⇒ Enter
※12-1 Controller model Controller model DECOS Va or V
※12-2 Log Interval Log Interval 15, 30, 60, or 120 minutes
※12-3 Optional Sensor Optional Sensor
ON : DRS sensor fitted
OFF : DRS sensor not fitted
※12-4 Reheat Coil Reheat Coil
ON : Reheat coil fitted
OFF : DRS Reheat coil not fitted
※12-5 Ventilation (FA) Ventilation (FA)
LOW-FLY : With FA sensor (Ventilator with insect screen)
LOW : With FA sensor (Ventilator without insect screen)
OFF : Without FA sensor (Standard)
※12-6 USDA Sensor Type USDA Sensor Type
Type 1 : ST9702-1 type USDA sensor
Type 2 : NTC type USDA sensor (Standard)
※12-7 Temp Unit Temp Unit ℃（Centigrade）or 󱌞F（Fahrenheit）
※12-8 Pressure Unit Pressure Unit kPa , psi or bar
※12-9 Ventilation Unit Ventilation Unit m3/h or CFM
※12-10 Container I.D. Container I.D.
Mentioned in following page.※12-11 Controller Date Controller Date
※12-12 Controller Time Controller Time
※12-13 H006 H006
H006 function: Detect the time which temperature difference
between SS and DSS becomes 2℃ or over
OFF: Without H006 function
1: Time which temperature difference becomes 2℃ or over is more than 1 hour
2: Time which temperature difference becomes 2℃ or over is more than 2 hour
3: Time which temperature difference becomes 2℃ or over is more than 3 hour
4: Time which temperature difference becomes 2℃ or over is more than 4 hour
5: Time which temperature difference becomes 2℃ or over is more than 5 hour
10: Time which temperature difference becomes 2℃ or over is more than 10 hour
