FA Calibration
200 mm
Manual Check

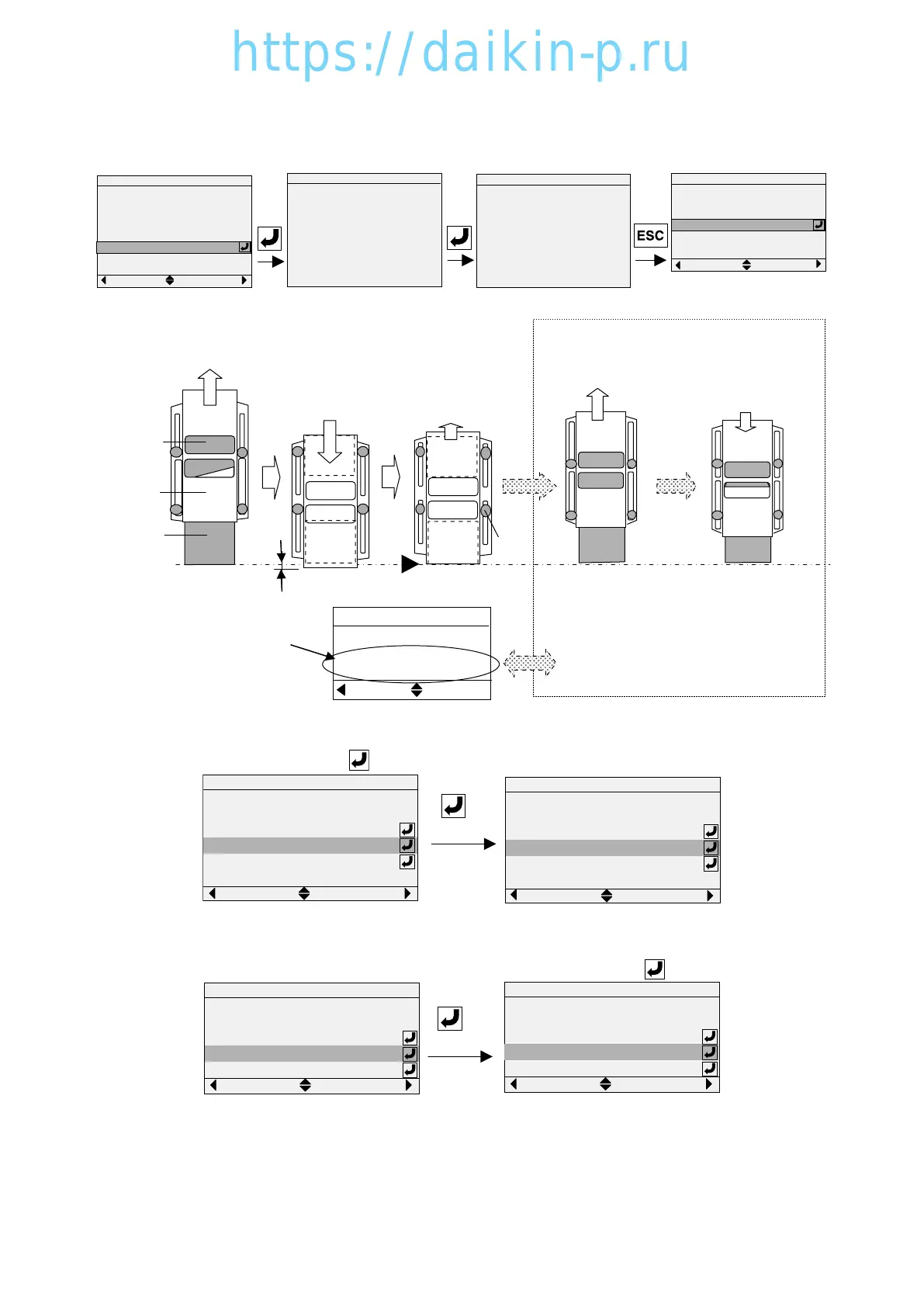

Step 1. Fully open Ventilation
cover
Step 2. Close ventilation
cover to zero point
Step 4 : Press ENTER
Manual Check
3 mm
ESC : Cancel
FA opening 0 mm
after calibration
NEXT
PREV
2/3
FA Calibration
0 mm
Manual Check
2/3
2/3
Complete
0mm
ESC : Return
Manual Check
Step 1.
Fully open
FA intake
air hole
Ventilation
cover
Step 2-2.
Lift up the cover a little
and tighten 4 wing bolts
after making the zero-
point adjustment.
Zero point
FA Discharge
air hole
Step 2-1.
Fully close
4 wing bolts
②Set ventilation
volume.
①Fully open
●After completing calibration,
set ventilation volume.
①Fully open ventilation cover
②Close it gradually until set value of the
ventilation volume is displayed. Then
tighten 4 wing bolts.
Ventilation volume is confirmed in the display
according to＊3 Sensor Information or battery
mode of ＊15 Data Information in paragraph 2.3.
Setting value of
ventilation volume
Sensor Information
PREV
50 m3/h
Ventilation Volume
3/3
※18 FA Calibration (Option)
Go to FA Calibration in Manual Check first, then set ventilation volume.
※19 Trip Start Time
Go to Trip Start reset by pressing key for 3 seconds.
※20 Comp. Running Hrs
1. Current Compressor Running Hrs is 1000 Hr as example below.
2. When compressor is replaced, it's recommended to reset 0 Hr by pressing key for 3 seconds.
Follow the same procedure for EFH, EFL, CFH and CFL running hrs.
※21 EFH Running Hrs
※22 EFL Running Hrs
※23 CFH Running Hrs
※24 CFL Running Hrs
NEXT
PREV
2/3
3mm
FA Calibration
Trip Start Time
Comp Running Hrs
1000Hr
7Day12Hr
Manual Check
3 seconds
NEXTPREV
2/3
3mm
FA Calibration
Trip Start Time
Comp Running Hrs
1000Hr
0Hr
Manual Check
NEXT
PREV
2/3
Trip Start Time
Comp Running Hrs
EFH Running Hrs
1000Hr
600Hr
7Day12Hr
Manual Check
NEXT
PREV
2/3
Trip Start Time
Comp Running Hrs
EFH Running Hrs
0Hr
600Hr
7Day12Hr
Manual Check
3 seconds
