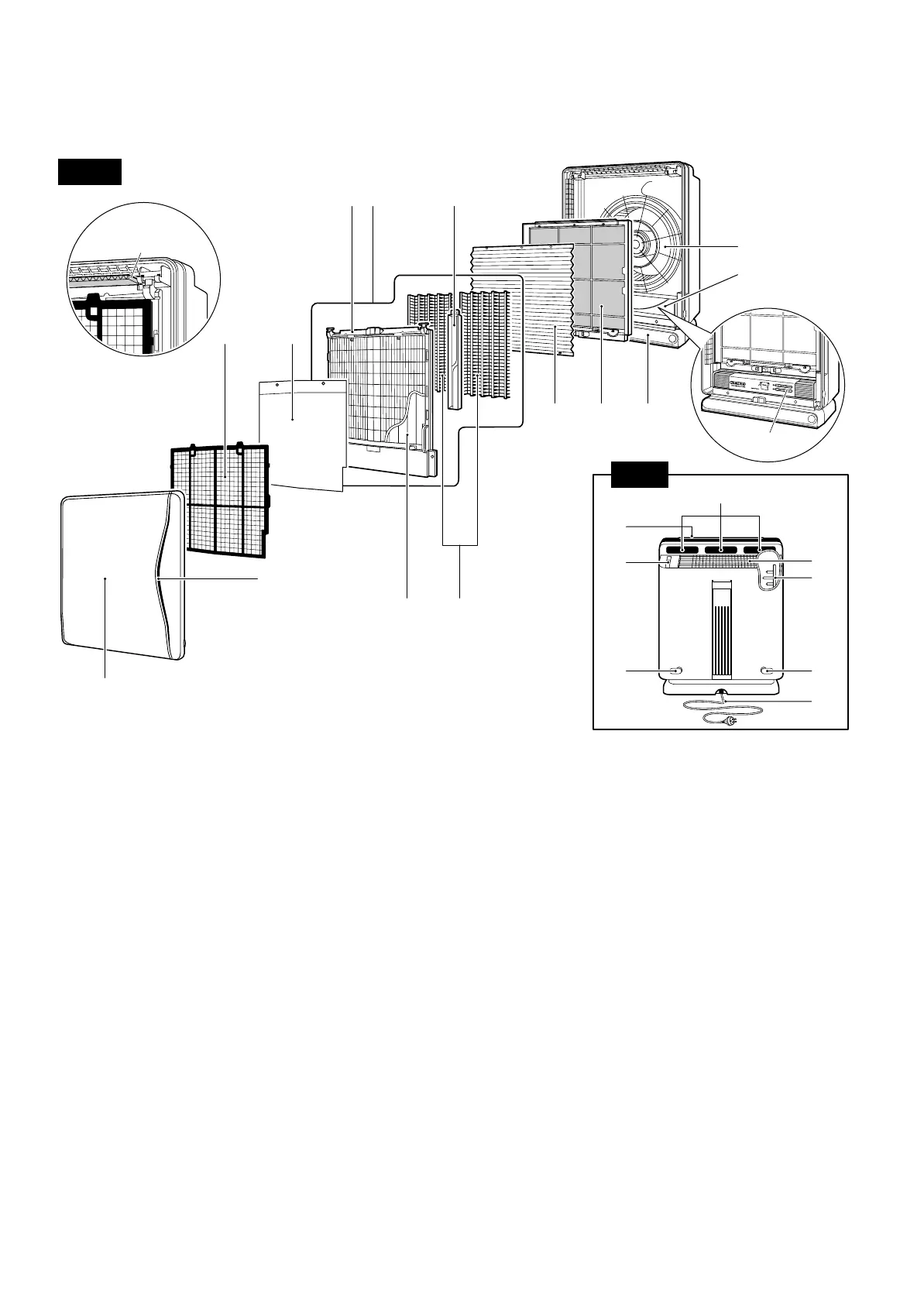

Names and Operation of each Part
Main unit
1 Front panel
2 Main unit display
(page 4.)
Shows operation status.
3 Pre-filter (green)
Removes comparatively large material and dust.
4 Plasma ionizer
5 Bio-antibody filter (white)
Absorbs viruses.
6 Ionizing frame
7 Ionized wire
Small dust particles which are not captured by the pre-filter are
positively charged to that they can be more easily absorbed by the
negatively-charged pleated filter.
8 Streamer discharger
9 Opposing pole plates
10 Pleated filter (front: white, back: blue)
Absorbs dust particles using the principle of static electricity.
11 Deodorizing catalyst (black)
Absorbs and decomposes elements which could not be removed
before returning the air back to the room.
Note: cannot be washed with water.
12 Filter container
Six replacement pleated filters are included.
13 Ventilation fan
14 Air inlet
15 Remote controller storage slot
Stores the accessory remote controller.
16 Handle
Use when moving the main unit.
17 Air outlet
18 Negative ionization assembly
Generates negative ions. Functions to combine positively charged
toxic substances in a room and neutralize and transform them.
• If static electricity is applied, the amount of negative ions
generated will be temporarily reduced.
19 Power supply cord hook
Winds the power supply cord when storing the main unit.
Do not wind the cord during operation.
20 Power supply cord
15
16
19
14
19
18
20
17
Rear
Front
35
64 8
10 11
13
12
2
1
79
14
Shock-absorbing
material (cardboard)
Be sure to remove the
shock-absorbing material
before operating. (page 5.)
