Daikin MC70LBFVM User Manual

English
10

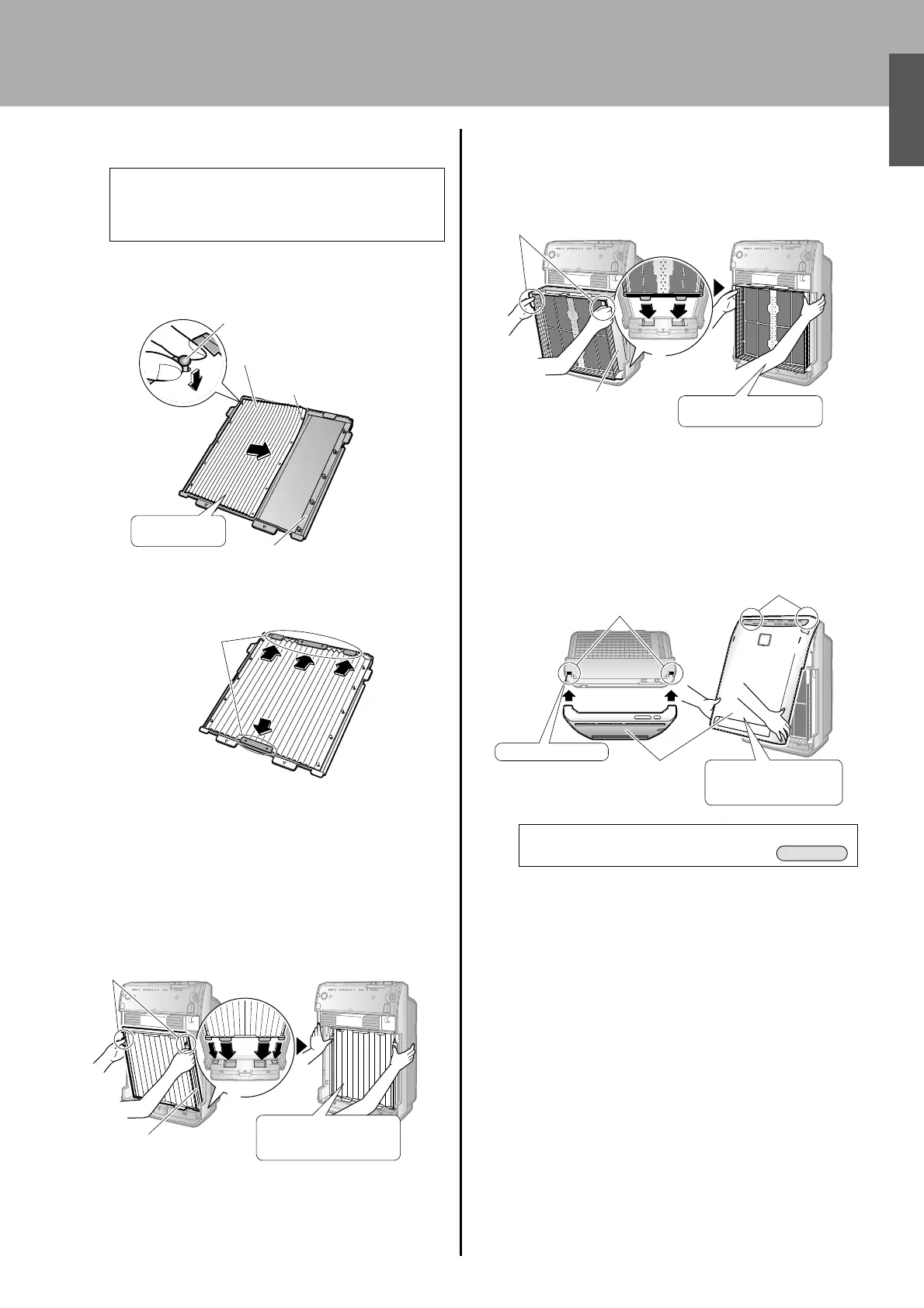

Attach the pleated fi lter. 4
Make sure to set the prefi lter (green) and the pleated fi lter
(front: white, rear: blue) in place.
If you operate the unit without them, the unit may be
damaged.
Fit the holes (5 each on the right and left) of the pleated 1)
fi lter to the fi xing lugs (5 each on the right and left) of the
deodorising catalyst unit.
Holes
(5 each on right and left)
Pleated fi lter
Deodorising catalyst unit
Face the white
side to the front.
Projection
(5 each on right and left)
Insert the pleated fi lter underneath the tabs (4 locations) 2)
at the top and bottom of the deodorising catalyst unit.
Top and bottom
tabs (4 locations)
Unit performance drops if the pleated fi lter is attached •
backward.
Attach the deodorising catalyst unit. 5
Holding the deodorising catalyst unit by the handles, fi t the •
projections into the grooves (4 locations) at the bottom of
the main unit and press the deodorising catalyst unit into
the main unit.
2) Press the deodorising
catalyst unit until you
hear clicking sound.
Deodorising catalyst unit
Handles
1)
Fit here.
Attach UNIT1.6
Holding UNIT1 by the handles, fi t the projections into the •
grooves (2 locations) at the bottom of the main unit, and
press UNIT1 into the main unit.
Handles
UNIT1
1)
Fit here.
2) Press UNIT1 until you
hear clicking sound.
Attach the front panel.7
Fasten the top hooks (2 locations) of the front panel to the •
top grooves (2 locations) of the main unit and then close
the front panel.
Front panel
Top hooks
(2 locations)
2) Press the front panel
until you hear clicking
sound.
1) Fasten the hooks.
Top grooves
(2 locations)
[View from above]
If the front panel is improperly set, the safety switch
may be activated. Operation may not start. Page 16. ►
