Preparation before Operation

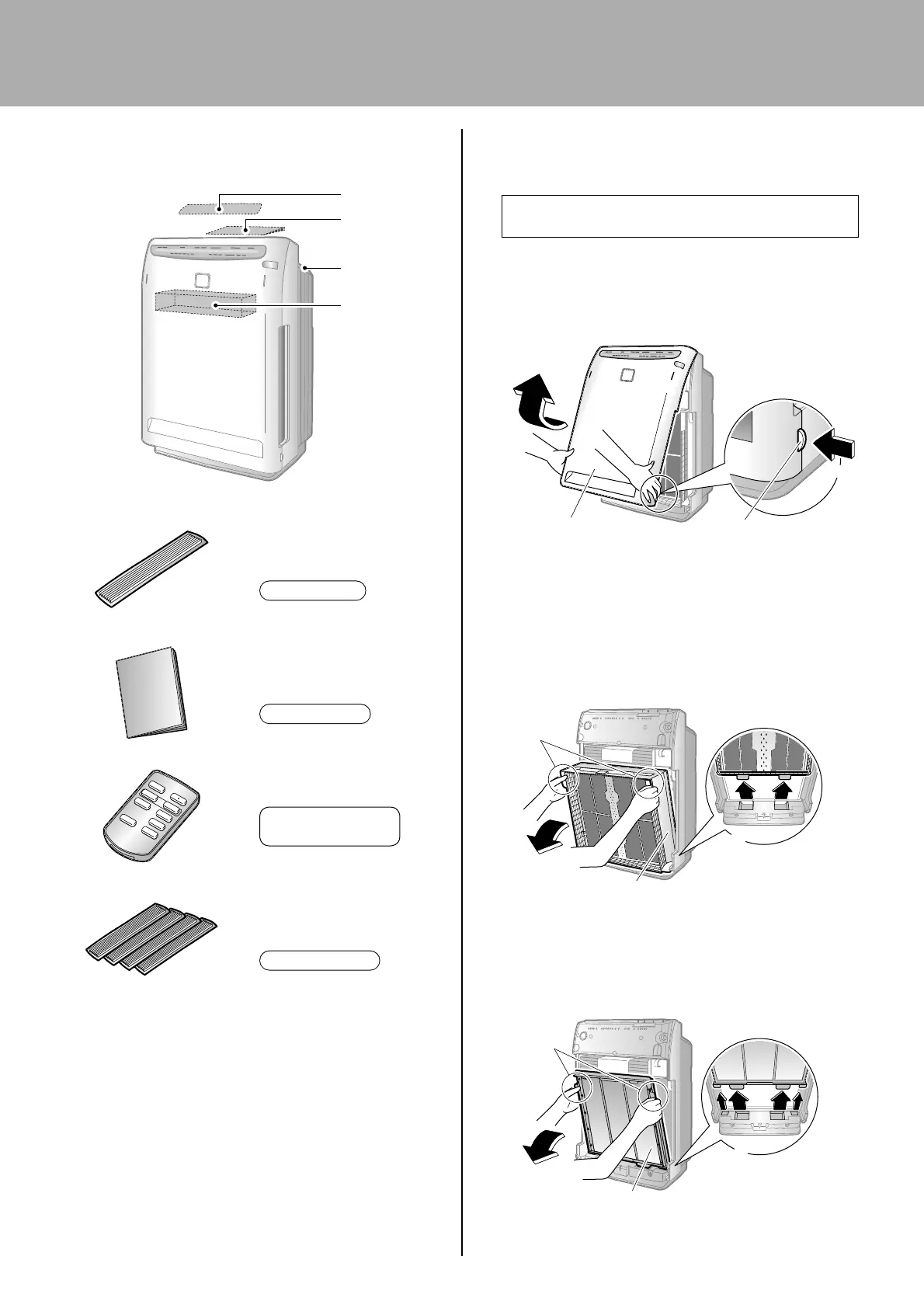

Accessories check 
Confi rm all the accessories are included.
A
B
C
D
A: Pleated fi lter…1 sheet
< For initial installation >
Inside cushion
B: Operation manual…1 book
(This booklet)
Inside package
C: Remote controller…1 unit
In remote controller
storage slot
D: Pleated fi lters…4 sheets
< Replacement fi lters >
In fi lter container
How to attach the pleated 
fi lter
Make sure to attach the pleated fi lter before starting
operation.
Remove the front panel.1
Push the 2 clips (right and left), and pull the front panel •
upward and remove it.
Push
Clip
(1 each on right and left)
Front panel
Remove UNIT1.2
Holding UNIT1 by the handles, pull UNIT1 upward and •
remove it.
Handles
UNIT1
1)
Pull
2)
Up
Remove the deodorising catalyst unit.3
Holding the deodorising catalyst unit by the handles, pull •
the deodorising catalyst unit upward and remove it.
Handles
Deodorising catalyst unit
1)
Pull
2)
Up
