Pleated fi lter
6
Deodorising catalyst unit
7
Main unit or air inlet
for sensor
Pleated fi lter
Deodorising
catalyst unit
Face the white
side to the front.
Do not rinse
with water.
Do not rub the
front surface.
Air inlet for odour sensor
Air inlet for
air quality sensor

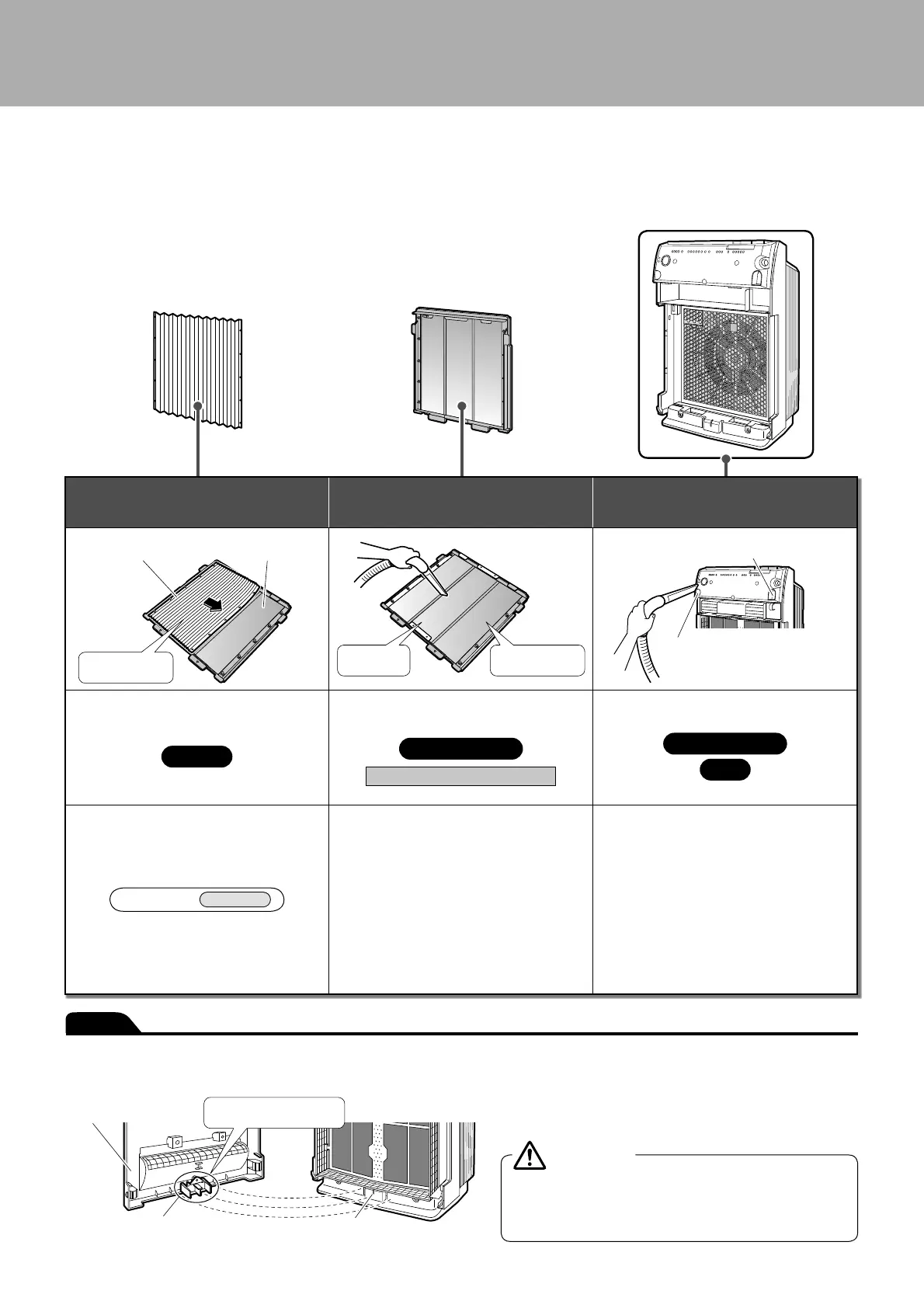

If the fi lter lamp lights up or blinks
Replace
About once a month, or if the odour or
marking is a concern
Vacuum cleaner
Can not be rinsed in water
If it is clogged
Vacuum cleaner
Wipe
Replacement Page 21.
►
Use a vacuum cleaner to remove the dust.•
If the deodorising catalyst unit frame •
becomes dirty, wipe off the dirt with a cloth
slightly moistened with water. In the case of
heavy dirt, wipe it off with a cloth moistened
with neutral detergent.
Do not wash with water. (If the unit is •
washed with water, it will be deformed and
become unusable.)
If the main unit or the air inlet for the air •
quality / odour sensor is clogged with dust,
use a vacuum cleaner to remove the dust.
For the main unit, wipe off the dirt with a •
cloth slightly moistened with water.
NOTE
Be careful not to scratch the surface of the front panel or damage the projections on the rear of it after it is removed. •
The projections on the rear work as a safety switch that shuts power off when the front panel is opened.
If they are damaged, operation can not start.
Rear of front panel
Bottom hole
Be careful not to damage
these projections.
Projections
Do not touch the inside of the hole at the bottom of the unit. •
(Electric shock may occur.)
Consult your dealer if the unit is damaged and does not •
operate.
WARNING
