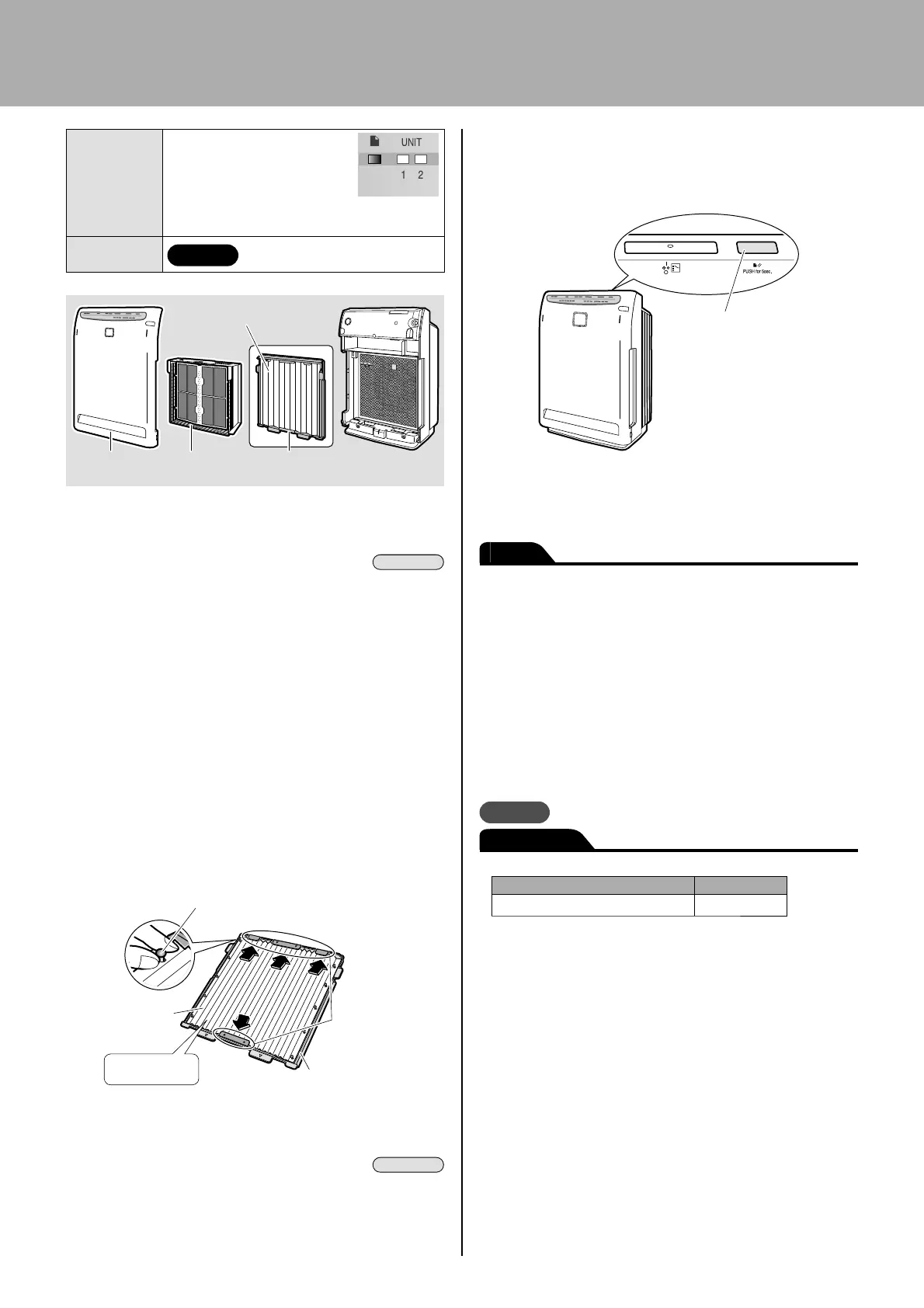

21
Time for
cleaning
When the fi lter lamp in the
display lights up or blinks
It is not necessary to replace the pleated fi lter
until the fi lter lamp lights up or blinks.
Cleaning
method
Replace
Deodorising
catalyst unit
Front panel UNIT1
Pleated fi lter
Remove the front panel and UNIT1. 1
Page 17.
►
Replace the pleated fi lter with a new 2
fi lter.
Remove the used pleated fi lter.1)
Release the pleated fi lter from the projections •
(5 each on the right and left) of the deodorising catalyst
unit (front side).
Take out a new pleated fi lter from the fi lter 2)
container and then attach it to the deodorising
catalyst unit.
Fit the holes (5 each on the right and left) of the •
pleated fi lter onto the tabs on the right and left of the
deodorising catalyst unit.
Insert the pleated fi lter underneath the tabs •
(4 locations at the top and bottom) of the deodorising
catalyst unit.
Projection
(5 each on right and left)
Pleated fi lter
Deodorising
catalyst unit
Top and
bottom tabs
(4 locations)
Face the white
side to the front.
Attach UNIT1 and the front panel. 3
Page 17.
►
Connect the power plug.4
Press the fi lter reset button on the upper 5
part of the front panel for 5 seconds.
(The fi lter lamp goes off with a short beep sound.)
Filter reset button
Even if the pleated fi lter is replaced, the fi lter lamp does •
not go off unless you press the fi lter reset button for
5 seconds.
NOTE
Order the pleated fi lter for replacement from your dealer.•
Replace the pleated fi lter when the fi lter lamp lights up or blinks •
even if the fi lter looks clean. The amount of visible dirt does not
represent the capacity of the fi lter.
The replacement interval for the pleated fi lter varies according to •
how the unit is used and where it is located.
The fi lter lamp lights up after about 2 years if the unit is used
every day in a house where 10 cigarettes per day are smoked.
(The replacement interval shortens when the unit is used where
the air is particularly dirty.)
When you have replaced the pleated fi lter before the fi lter lamp •
lights up because of visible dirt or generation of odour, press the
fi lter reset button for 5 seconds.
Options
ATTENTION
For replacement pleated fi lters contact the service shop.•
Part Model
Pleated fi lter 5 pcs. KAC017A4E
If the unit is used with dirty parts•
Air is not cleaned.•
Odors are not removed.•
Unnecessary odors may be generated.•
Discard of the pleated fi lters as noncombustible waste.•
Replacement of the Pleated Filter
01_EN_3P276413-3C.indd 2101_EN_3P276413-3C.indd 21 9/27/2011 1:27:33 PM9/27/2011 1:27:33 PM
