18
Wear rubber gloves to remove and attach the opposing pole plates. Hands can be cut on the opposing pole plates and ionised wires.
CAUTION

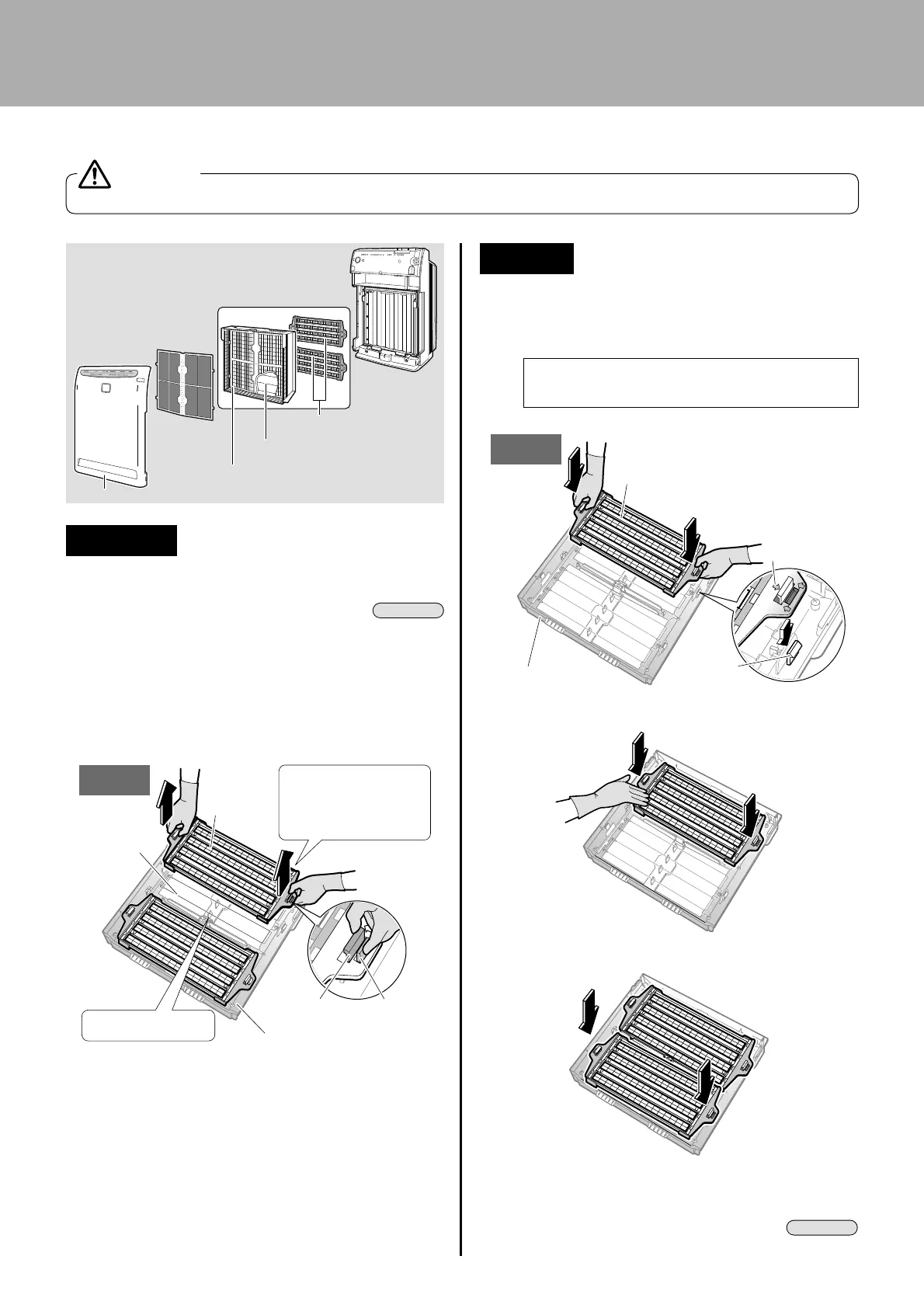

Removing and attaching the opposing pole plates
UNIT1
Opposing pole plates
Ionised wire
Ionising frame
Front panel
Remove
Remove the front panel and UNIT1. 1
Page 17.
►
Remove the opposing pole plates from 2
the rear of UNIT1.
Pinching together the white and green knobs (2 sets on •
the right and left), lift the opposing pole plate up and
remove it.
Ionised wire
Ionising frame
Pinching the sets of knobs
on the right and left at the
same time makes it easier
to remove the opposing
pole plate.
Be careful not to cut the
internal ionised wires.
Opposing
pole plates
Knob
(green)
Knob
(white)
Wear rubber
gloves.
Attach
Attach the opposing pole plates.1
Fit the opposing pole plate over the knobs (2 sets on the 1)
right and left) on the ionising frame.
The opposing pole plates have no difference between the
upper and the lower, or between the right and the left.
Attach them so that the arrow is visible.
Ionising frame
Opposing
pole plates
Arrow
Knob
(white)
Wear rubber
gloves.
Insert securely until it clicks.2)
Attach the other opposing pole plate.3)
Attach UNIT1 and the front panel.2
Page 17.
►
