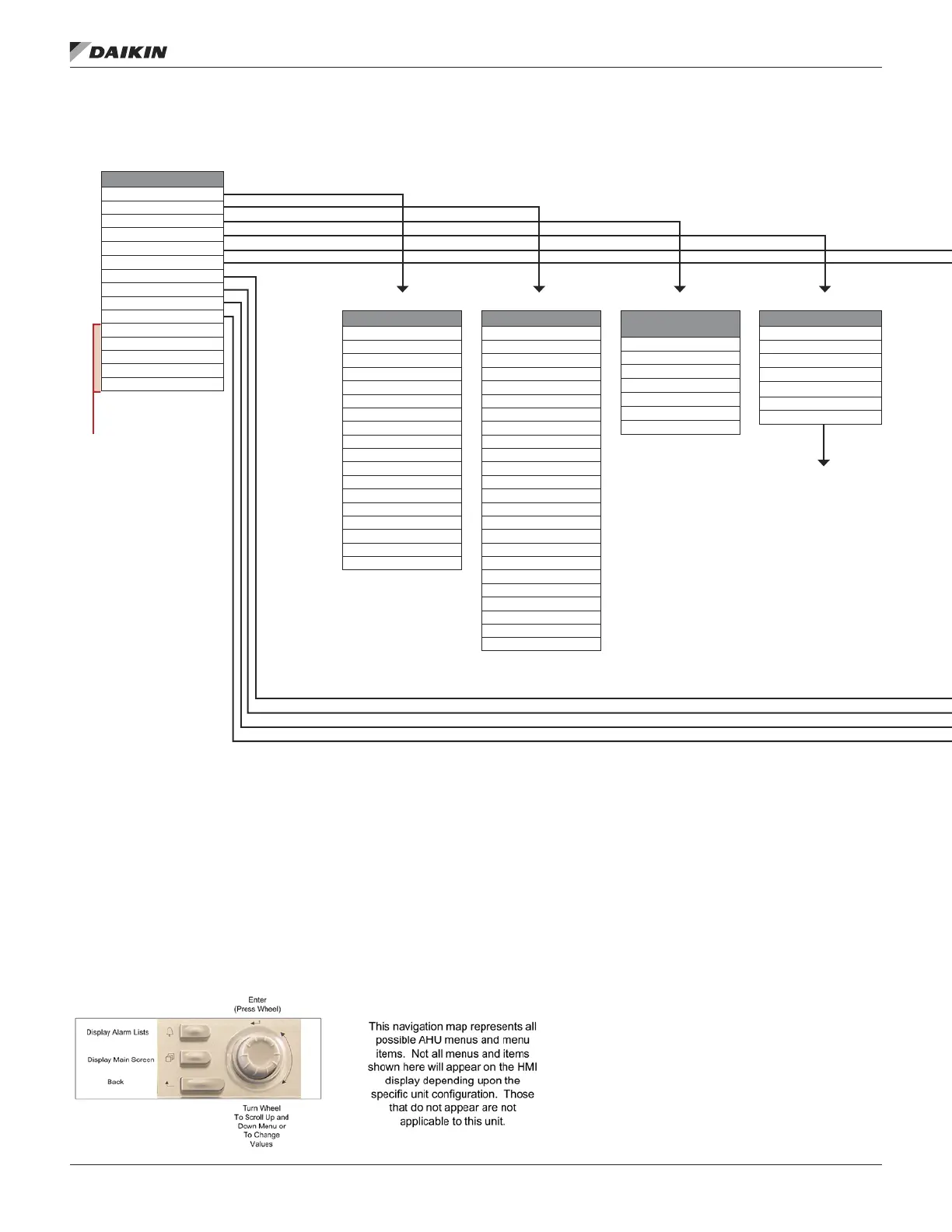

Figure 7: Service Menu – Keypad/Display Menu Structure
See page 69
Operating Hours
Supply Fan= XXXXXh
Ret/Exh Fan= XXXXXh
Exh Out1= XXXXXh
Exh Out2= XXXXXh
Mech Cool= ___________
Var Comp= ___________
Comp # 1= XXXXXh
Comp # 2= XXXXXh
Comp # 3= XXXXXh
Comp # 4= XXXXXh
Comp # 5= XXXXXh
Comp # 6= XXXXXh
Comp # 7= XXXXXh
Comp # 8= XXXXXh
Cmp Cooling= _________
INV Comp= ___________
Comp 3= _____________
Heating= XXXXXh
Cmp Heating= _________
Economizer= XXXXXh
Tnt Override= XXXXXh
Dehumid= XXXXXh
Reheat= _____________
ER Wheel= XXXXXh
See page 62
Active Alarms
Alm Count: xx Clr Alms= No
+Alarm 1: Alarm Type
►
+Alarm 2: Alarm Type
►
●
●
●
+Alarm 10: Alarm Type
►
See page 62
Save/Restore
Settings
Save Params= No
Rstr Params= No
Rstr Factory= No
SaveToCard= No
LoadFromCard= No
CreateTrace= No
Trace To SD= No
See page 62 – 68
Service Menus
Timer Settings
►
Operating Hours
►
Save/Restore Settings
►
Active Alarms
►
Alarm Log
►
Alarm Conguration
►
Analog Input Status
►
Universal I/O Status
►
Digital Input Status
►
Digital Output Status
►
Network Input Status
►
Modbus Status
►
D3 Input Status
►
Sensor Offsets
►
Reset Counte= XXXX
See page 33 – 34
Timer Settings
Service Time= 0min
Start Up= 180s
Recirculate= 180s
Zero OA Time= 0min
Tnt Override= 120min
Post Heat= 0s
Pwd Timeout= 10min
Low DAT= 6min
ClgStateDelay= 300s
Clg Stg Time= 5min
Htg Stg Time= 5min
Air Flw Ign= 120s
MinExStrtTm= 120s
MinExStopTm= 120s
ER Whl Stg Tm= 5min
ER Whl Off Tm= 20min
Srvc Time Inc= 20s
OffHtCIDelay= 120s
3
List continues
on, page 18
