Software
NOTE:
all BACnet network parameters to default values.
proceeding.
1. Connect the J-Link hardware between the USB port on
the computer and the 20-pin connector on the BACnet
communication module. The notch on the J-Link cable
BACnet communication module (Figure 33).

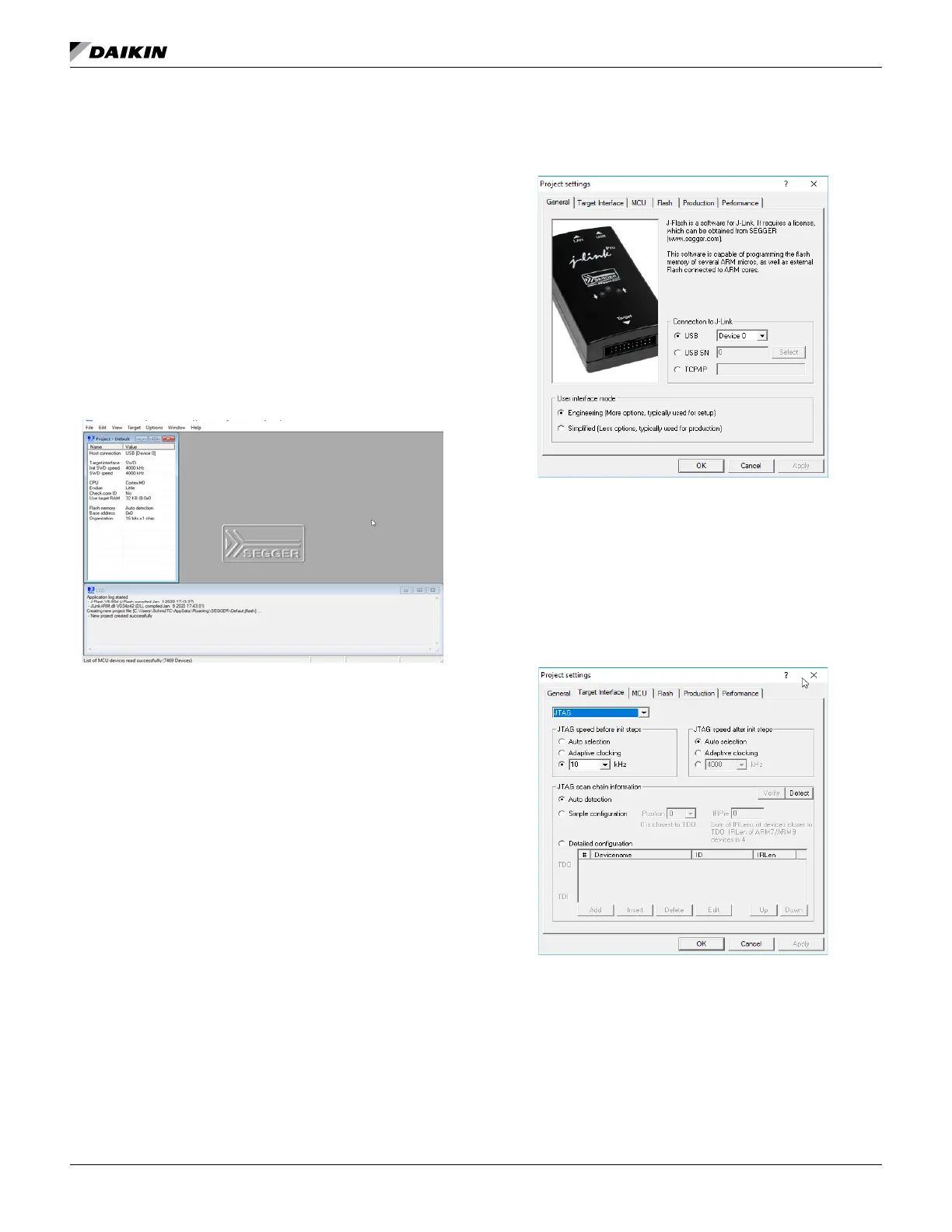

2. Launch J-Flash ARM software. The screen shown in
Figure 35 appears.
Follow the below to establish the proper hardware settings if
1. Navigate to the Options menu and select Project
Settings.
2. Select USB Device 0 from the General tab (Figure 36).
3. Select Engineering for the User interface mode, then
click Apply.
4. Click on the Target Interface tab (Figure 37).
a. Select JTAG from the drop-down box.
b. Select 10kHz from the JTAG speed before init
steps drop-down box.
c. Choose Auto Selection from the JTAG speed after
init steps section and then click Apply.
Target Interface Tab
6. Click on the MCU tab (Figure 38).
