spaCe TemperaTure seTpoInT meThods

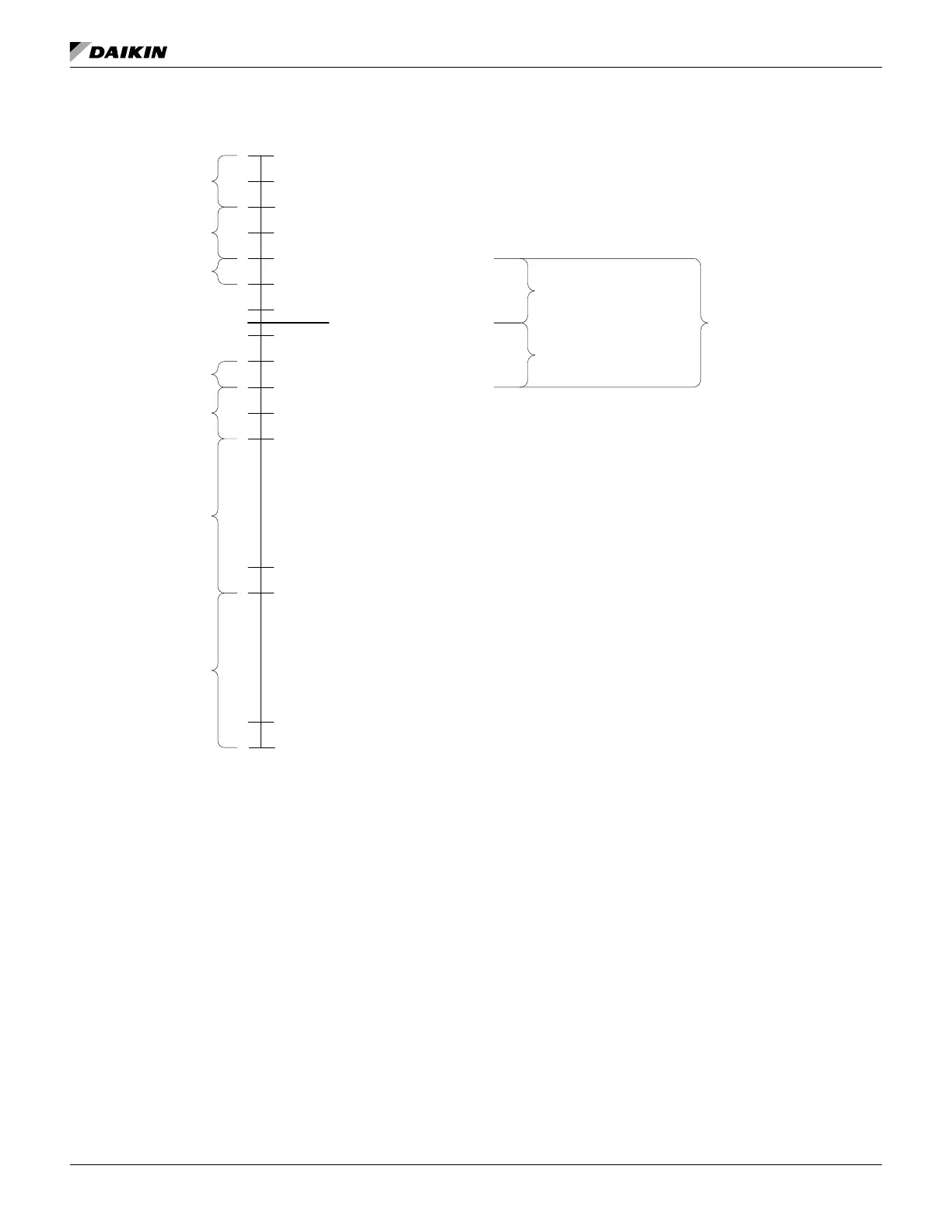

Figure 2: Space Temperature Setpoint Operation
75 Effective Cool Stage 1 ON SP
73
72
Reference Setpoint Effective Deadband
74 Effective Cool Stage 1 OFF SP
71 Effective Heat Stage 1 OFF SP
70 Effective Heat Stage 1 ON SP
0.5 (Effective Deadband)
0.5 (Effective Deadband)
nciOccDiff
nciOccDiff
79 Effective Cool Stage 3 ON SP
76 Effective Cool Stage 2 OFF SP
78 Effective Cool Stage 3 OFF SP
77 Effective Cool Stage 2 ON SP
68 Effective Heat Stage 2 ON SP
69 Effective Heat Stage 2 OFF SP
62 Effective Heat Stage 3 ON SP
63 Effective Heat Stage 3 OFF SP
57 Effective Heat Stage 4 OFF SP
56 Effective Heat Stage 4 ON SP
nciStg2SptDiff
nciStg2SptDiff
nciStg2SptDiff
nciStg3SptDiff
nciStg4SptDiff
