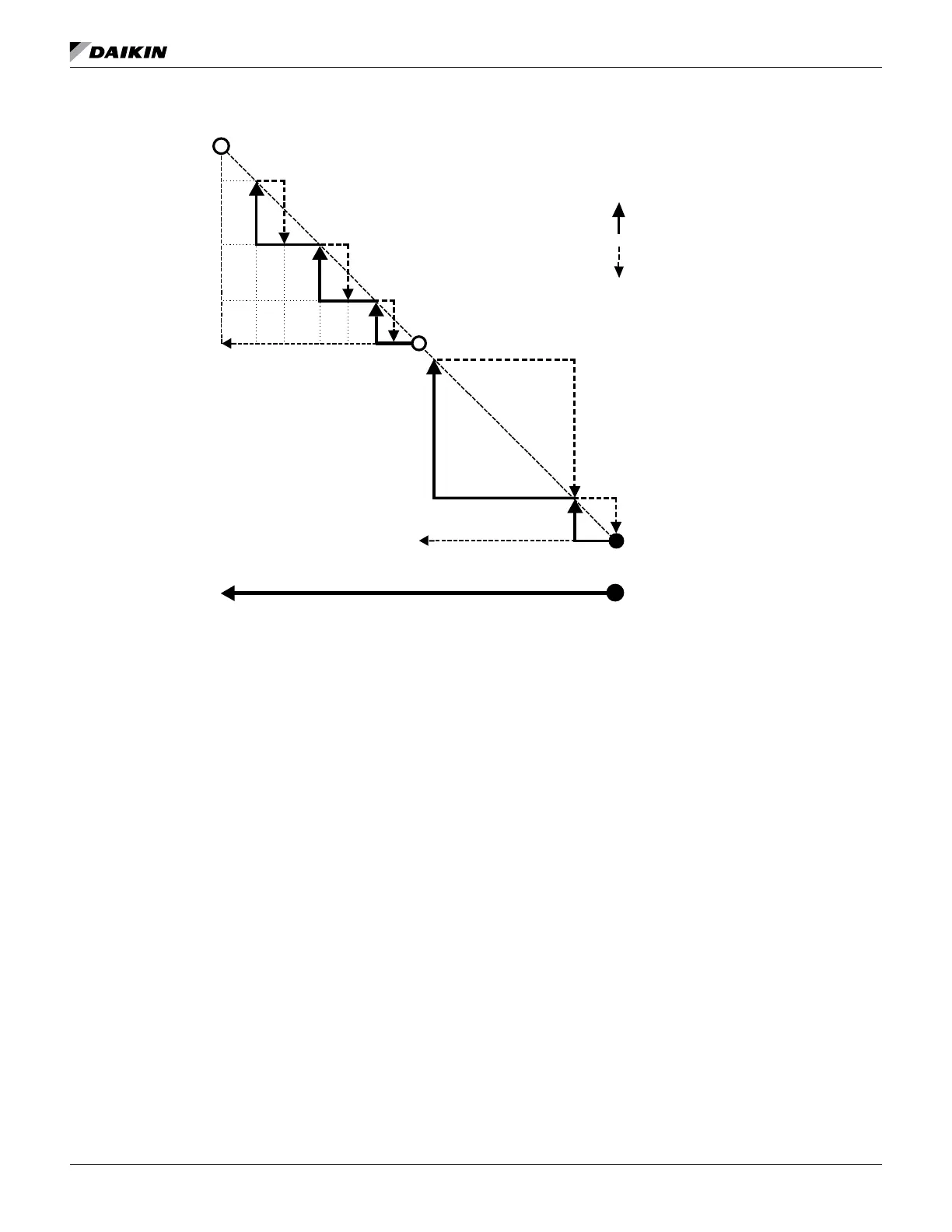

Figure 7: Heat State Operation - Compressor and Electric Heat
-Electric Heat Stage 1, 2 and 3 On
-Compressor Heat Stage 2 On
-Electric Heat Stage 1 On
-Compressor Heat Stage 2 On
-Compressor Heat Stage 1 On
Staging
Down
Staging
Up
Satisfied
Discharge Air
Degrees Below
Setpoint and Time
Primary
Heating
Capacity
100%
75% 65% 45% 35% 5% 1%
-Compressor Heat Stage 2 On
-Electric Heat Stage 1 and 2 On
-Compressor Heat Stage 2 On
0%
Secondary
Heating
Capacity
0%
