Daikin R60BV1 - Removal of Outer Panels; Top Panel Removal; Front Panel Removal; Service Cover Removal

Removal of Outer Panels Si01-779
2 Removal Procedure

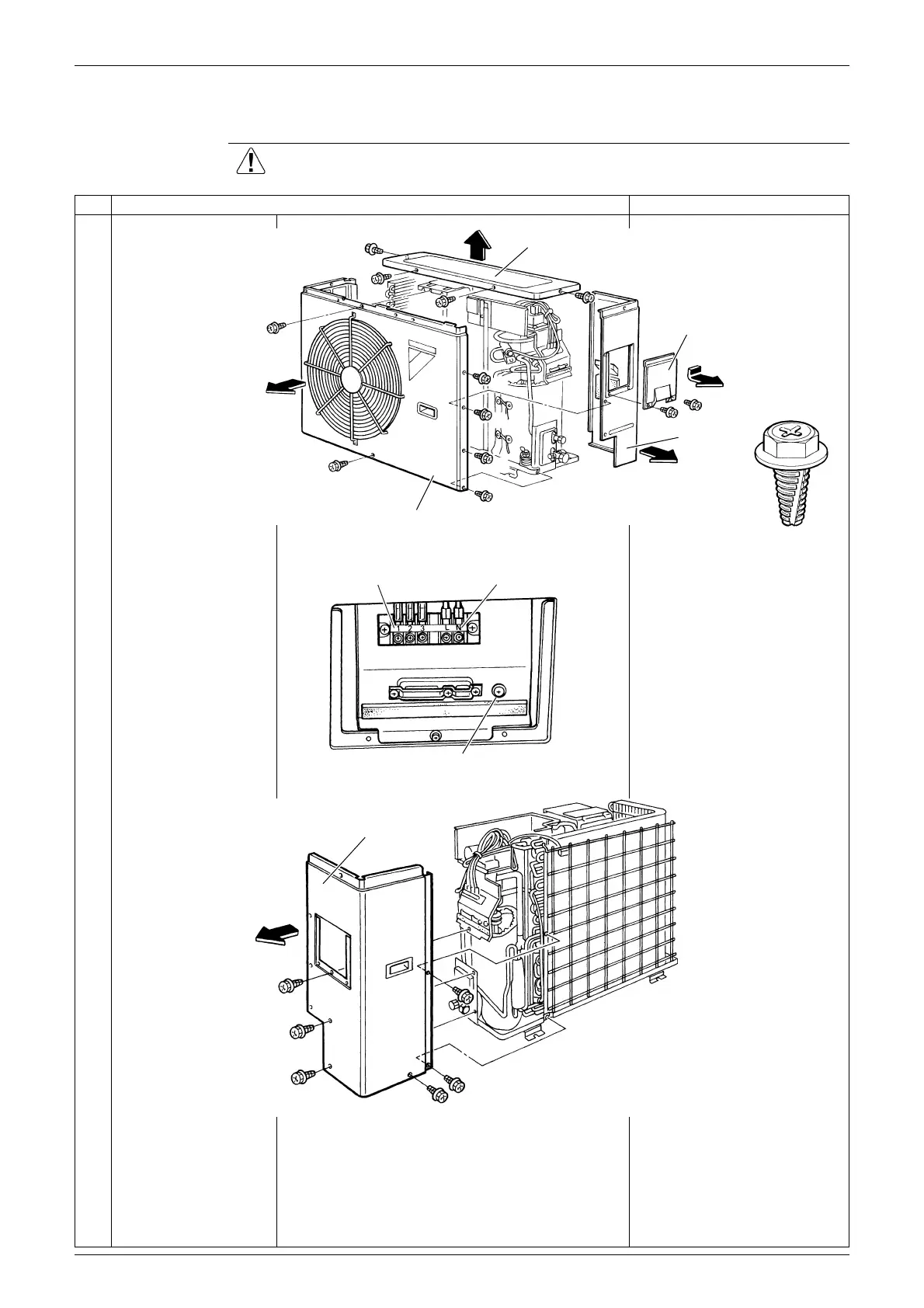

1. Removal of Outer Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
Remove the 4 screws
(A) and remove the
top panel.
2
Remove the 6 screws
(B) and remove the
front panel.
3
Remove the 2 screws
and remove the service
cover.
4
Remove the 6 screws
(C) and remove the
side panel.
(R2307)
(B)
(B)
(B)
(A)
(A)
(A)
(A)
(B)
(B)
(B)
Front panel
Top panel
Service cover
Side
panel
(R2292)
Earth terminal
Interconnecting
wire terminal
Power supply
terminal
Screw with washer
(R2291)
(R2295)
(C)
(C)
(C)
(C)
(C)
Side plate
