IM 962-2 9
Electrical Data
Electrical Data
Power Wiring
Table 6: RCS 06F – 20F Electrical Data
Model
RCS
06F 07F 10F 11F 12F 15F 20F
Compressor Motor
Voltage 208/230 460- 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575
Phase and hertz 3 – 60
Number of compressors Single Tandem
Operating Current
Rated load amps (each)
1
22.4 10.6 7.7 25.0 12.2 9.0 30.1 16.7 12.2 17.6 9.6 6.1 22.4 10.6 7.7 25.0 12.2 9.0 33.3 17.9 12.8
Locked rotor amps (each)
1
149 75 54 164 100 78 225 114 80 123 64 40 14 75 54 164 100 78 239 125 80
Condenser Fan Motors
Voltage 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575 208/230 460 575
Phase Single
Full load amps (each) 2.2 1.3 1.0 2.2 1.3 1.0 2.4 1.4 1.0 2.4 1.4 1.0 2.4 1.4 1.0 2.4 1.4 1.0 2.4 1.1 0.8
System characteristics
Unit full load amps
2
24.6 11.9 8.7 27.2 13.5 10.0 34.9 19.5 14.2 40.0 22.0 14.2 49.6 24.0 17.4 57.2 28.6 21.0 73.8 39.1 28.0
Minimum circuit ampacity 31.0 15.0 11.0 34.0 17.0 13.0 43.0 24.0 18.0 45.0 25.0 16.0 56.0 27.0 20.0 64.0 32.0 24.0 83.0 44.0 32.0
Maximum fuse size (amps)
or HACR circuit breaker
ampacity
3
50 25 15 50 25 20 60 40 25 60 30 20 70 35 25 80 40 30 110 60 40
Disconnect size 60 30 30 60 30 30 60 40 25 60 30 30 60 30 30 100 60 60 200 60 60
Note:
1 Each compressor
2 Conditions at 45° suction and 95° ambient
3 Local codes take precedent over recommended fuse size

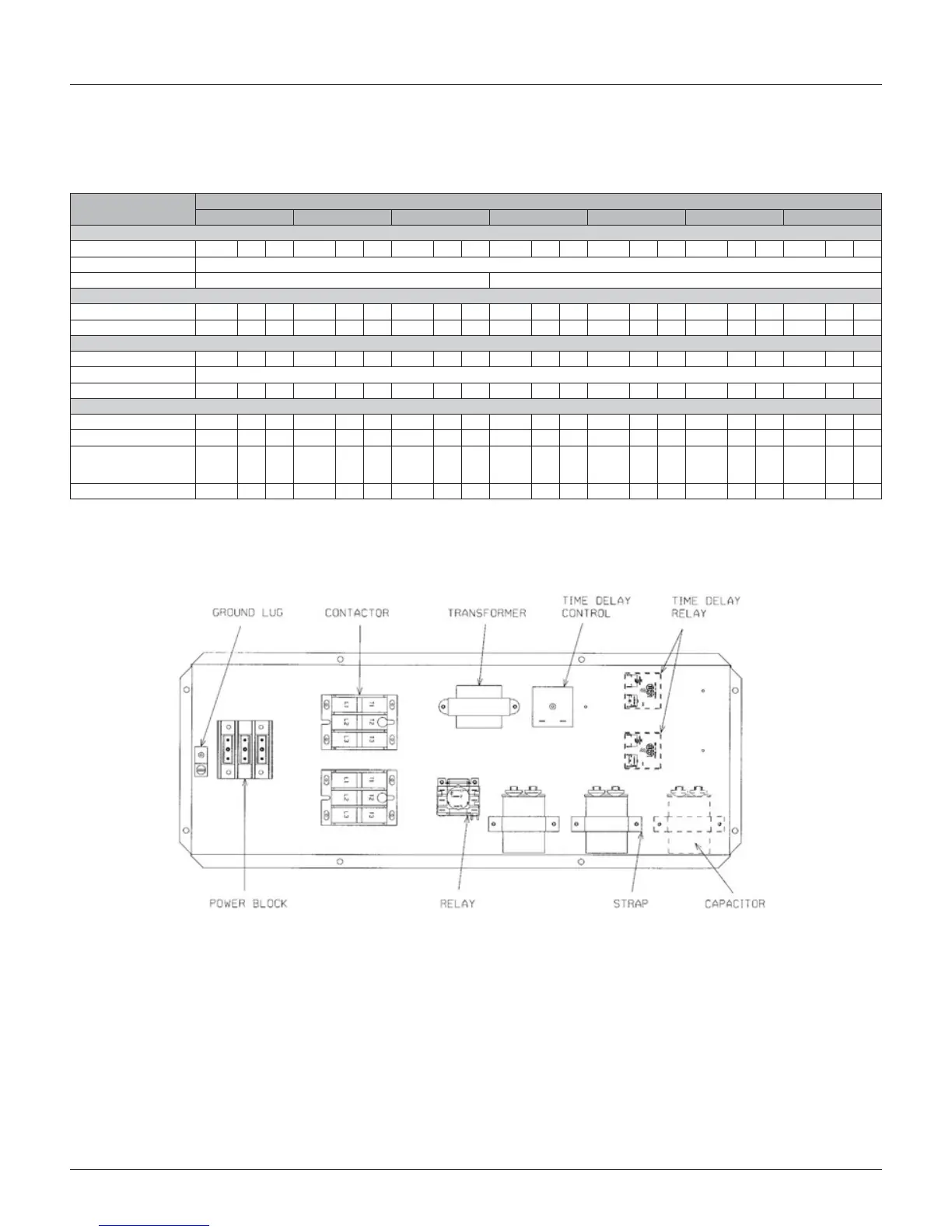

Figure 7: Control Box Example – RCS 10F Through 20F
