www.DaikinApplied.com 45 IM 1287-6 • REBEL APPLIED ROOFTOP

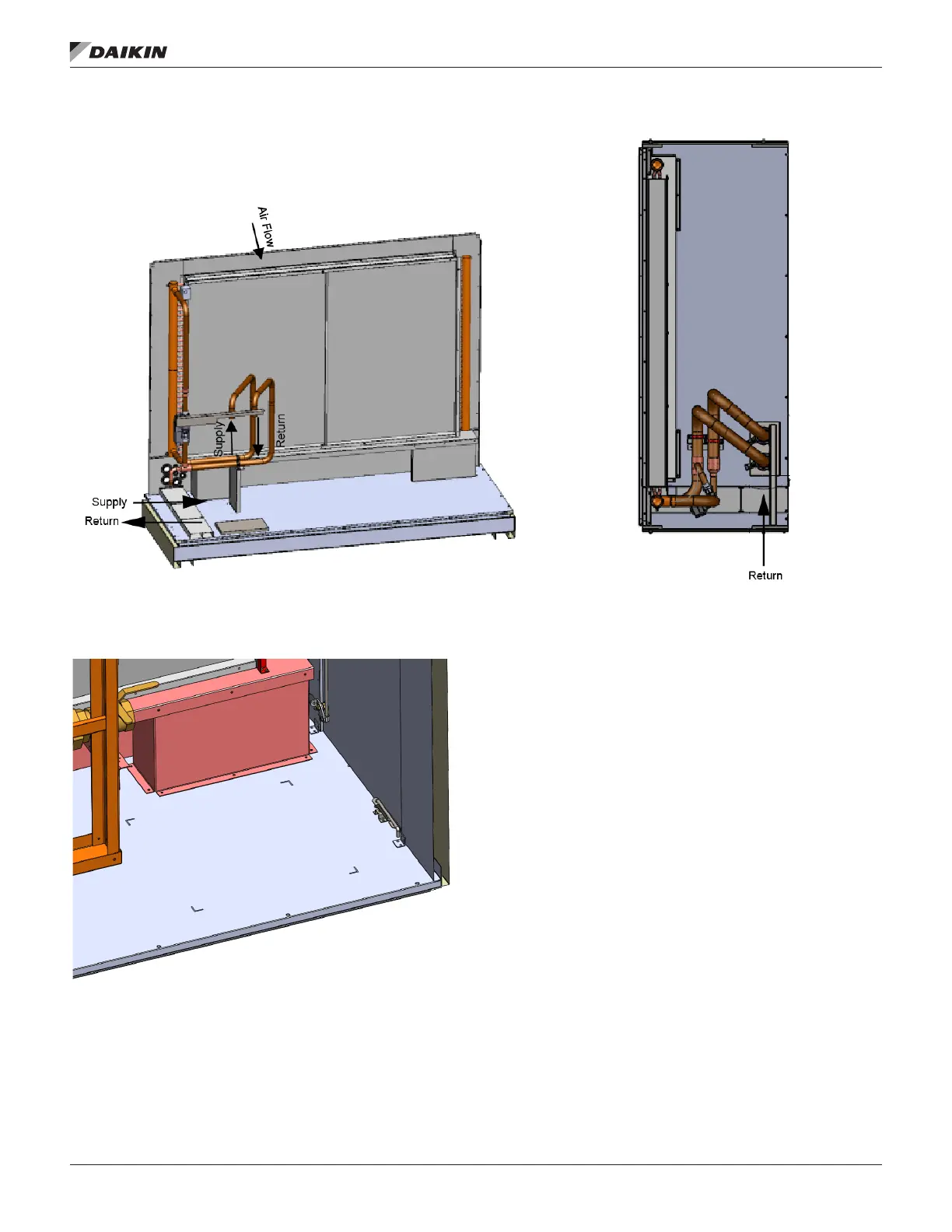

Figure 84: B-Cabinet Hot Water Heat Section (Shown with Factory Valve and Piping, no Bypass)
NOTE: Horizontal Supply and Return will be through the xed panel in line with the pipe connections.
Figure 85: C-Cabinet Floor Marking (Piping)
