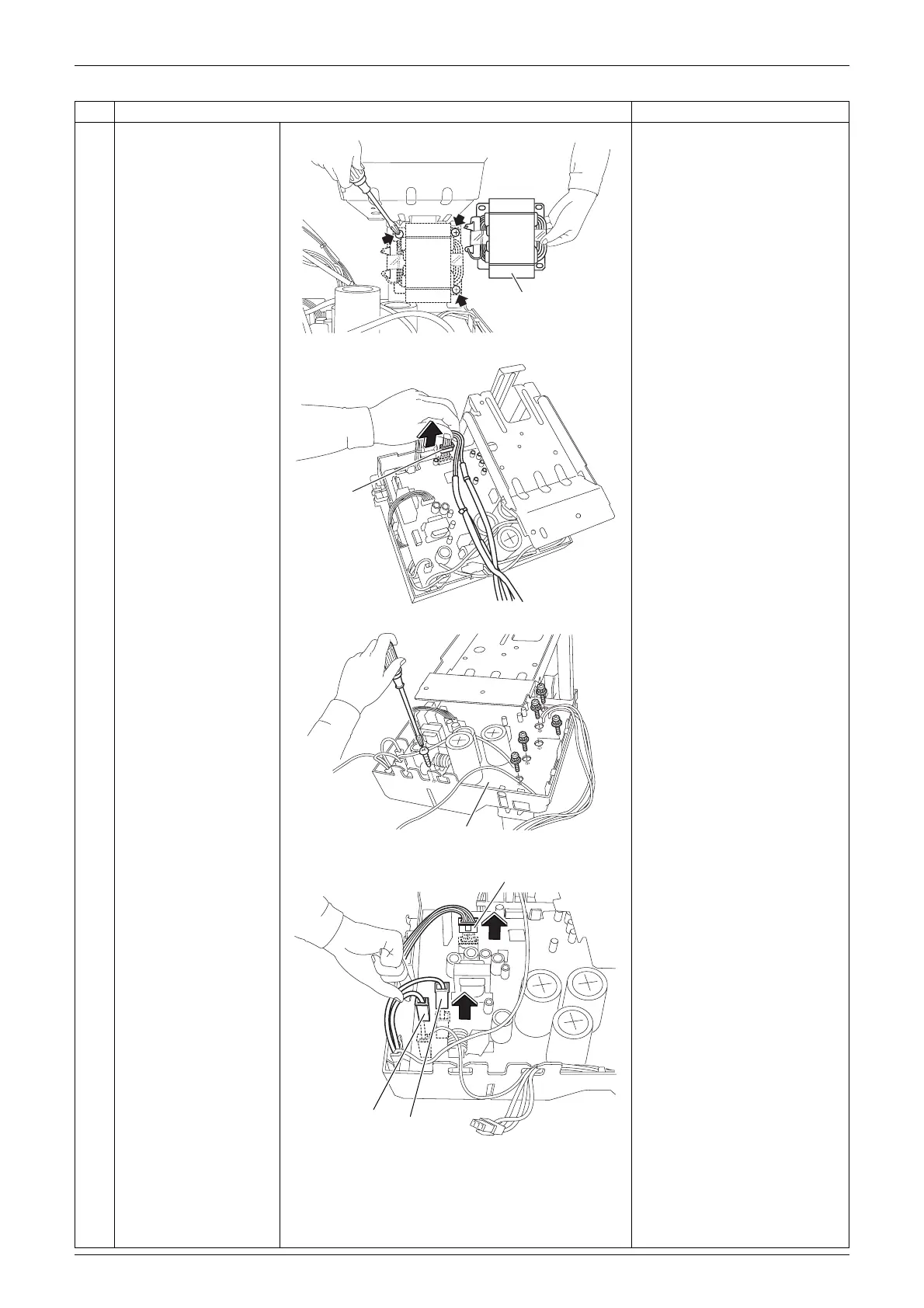

Si00-874 Removal of Electrical Box / PCBs
Removal Procedure 11
5
Remove the 3 screws
to remove the reactor.
6
Disconnect the
connector [S90].
[S90]: thermistors
7
Remove the 6 screws.
8
Disconnect the 3
connectors [S10] [HL3]
[HN3].
[S10] [HL3] [HN3]: filter PCB
Step
Procedure Points
Reactor
(R15862)
[S90]
(R15863)
Main PCB
(R15864)
[S10]
(R17309)
[HN3]:
blue
[HL3]:
orange
