Si00-874 Removal of Four Way Valve
Removal Procedure 17
6. Removal of Four Way Valve
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

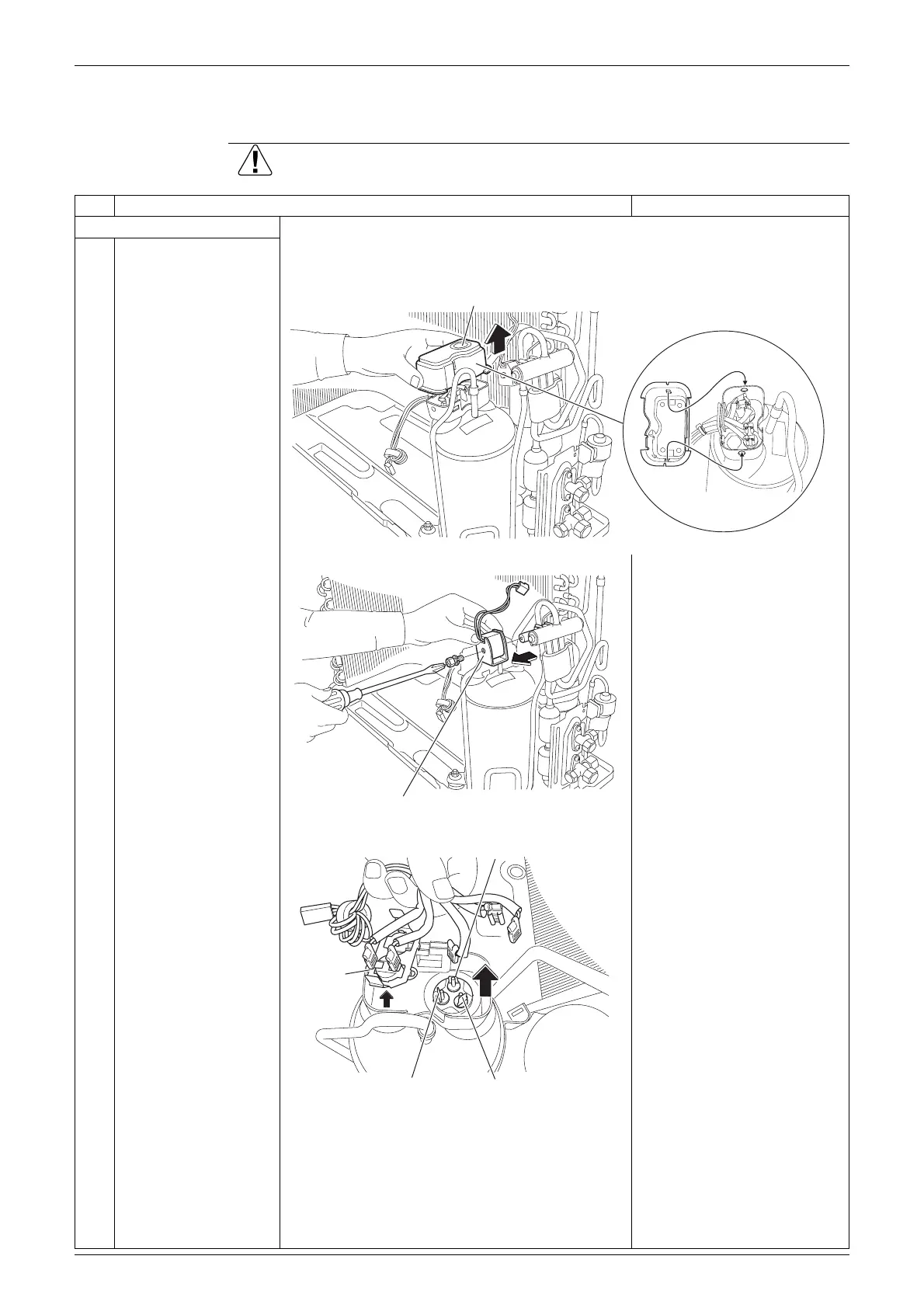

Step Procedure Points
1. Remove the peripheries.
1
Remove the terminal
cover.
2
Remove the screw and
remove the four way
valve coil.
3
Disconnect the
terminals of the
compressor.
4
Remove the overload
protector.
(R15005)
Terminal cover
(R12653)
The cooling only models do
not have a four way valve.
There are 2 hooks at the inner
side of the terminal cover.
(R11799)
Four way valve coil
(R14529)
U (red)
V (yellow) W (blue)
Overload
protector
