Removal of Sound Blankets Si00-874
14 Removal Procedure
4. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

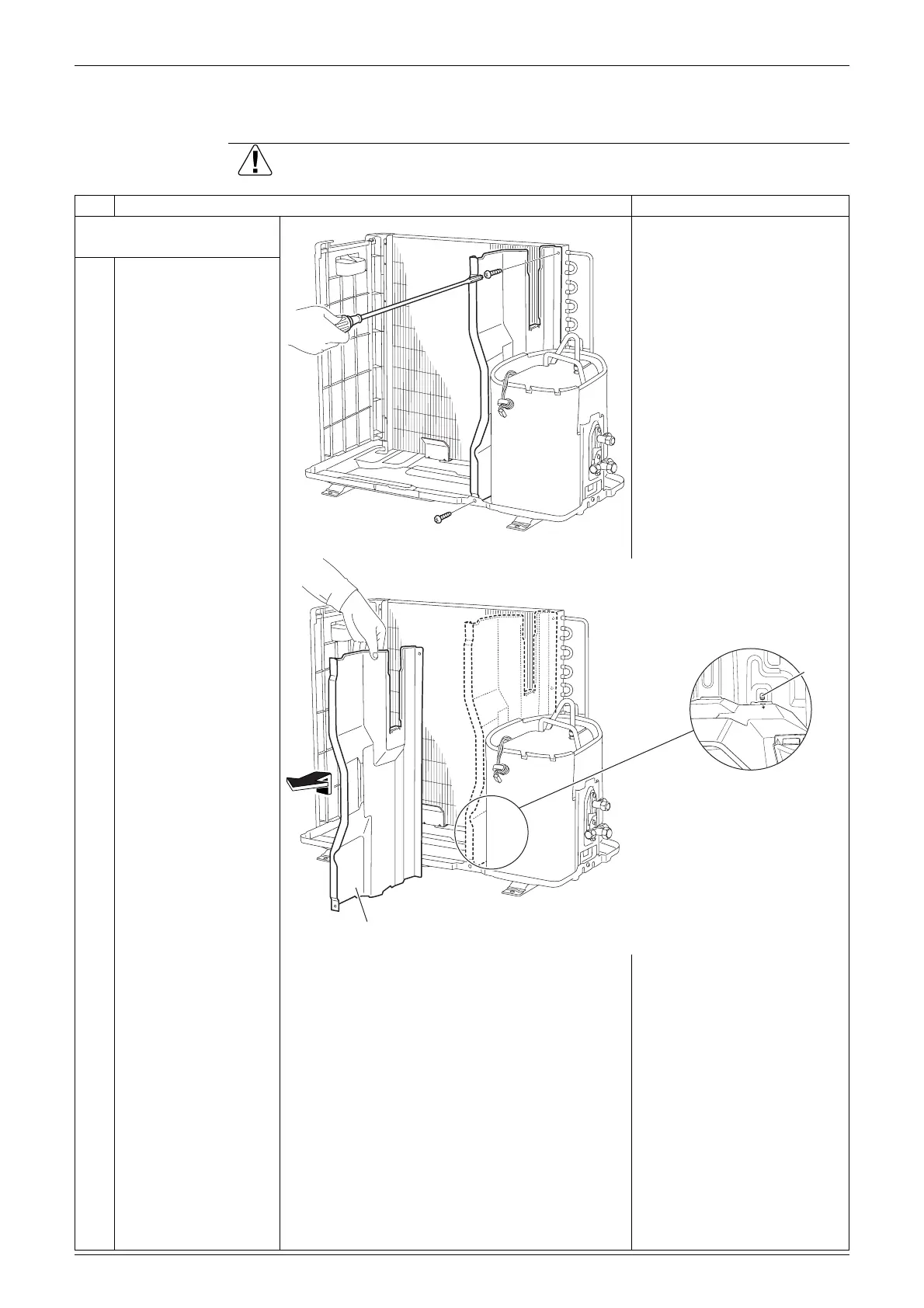

1. Remove the partition
plate.
Some models have 3
screws.
1
Remove the 2 screws.
2
The partition plate has
a hook on the lower
side. Lift and pull the
partition plate and
remove it.
When reassembling, fit the
lower hook into the bottom
frame.
(R17286)
(R14821)
Partition
plate
Hook
To Next Page
