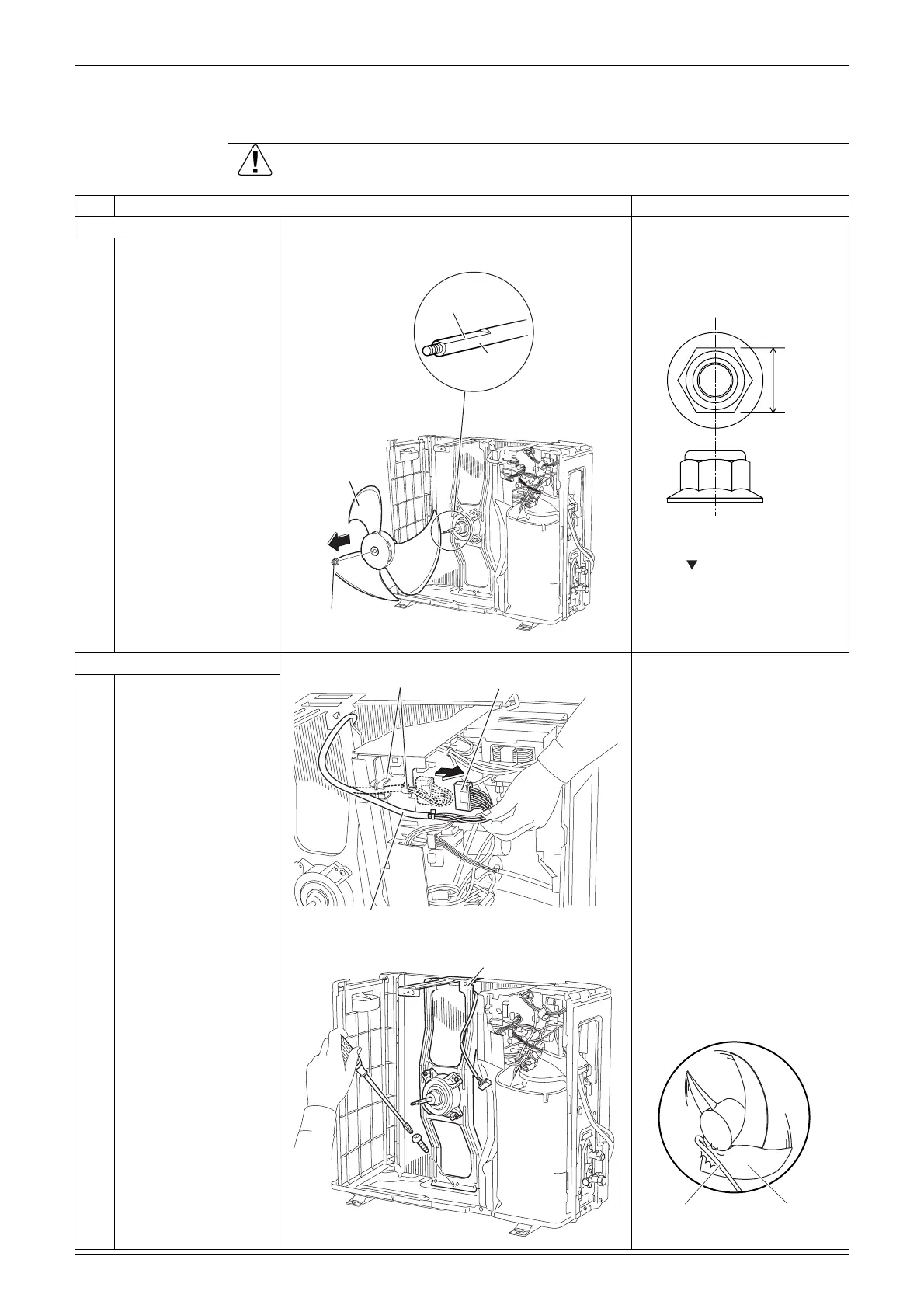

Removal of Outdoor Fan / Fan Motor Si00-874
4 Removal Procedure
2. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan. Preparation
Remove the panels
according to the “Removal
of Outer Panels”.
Nut size: M6
1
2
Remove the nut of the
outdoor fan.
Remove the outdoor
fan.
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
2
Release the fan motor
lead wire from the
hooks.
3
Remove the screw and
remove the fan motor
fixing frame.
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
(R17341)
Shaft
D-cut
Nut
Outdoor
fan
10 mm
(R12236)
(R17338)
Hook
Fan motor lead wire
[S70]
(R17284)
Fan motor fixing frame
(R3249)
Lead wire Outdoor fan
To Next Page
