Si00-874 Removal of Outer Panels
Removal Procedure 3
2

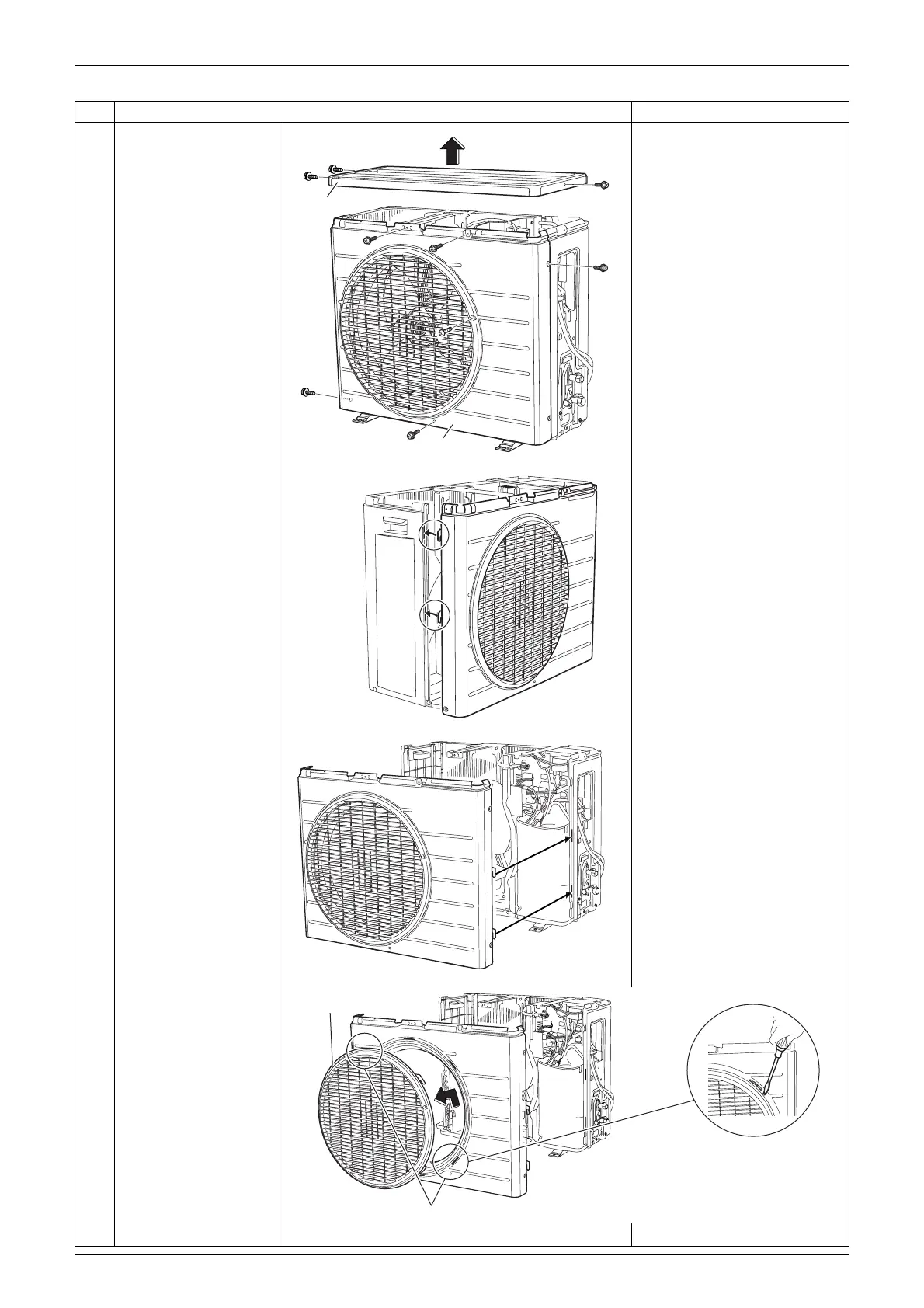

Remove the 3 screws
(right: 1 screw, left: 2
screws) and remove the
top panel.
3
Remove the 6 screws
of the front panel.
4
Lift up the left side and
unfasten the hooks.
5
Unfasten the right side
hooks and remove the
front panel.
6
The discharge grille has
2 projections to prevent
its rotation. Press the
projection from the rear
side and rotate the
discharge grille to
remove it.
Step
Procedure Points
Top panel
Front panel
(R16331)
(R17304)
(R17306)
(R17307)
Projection (rear side)
Discharge grille
