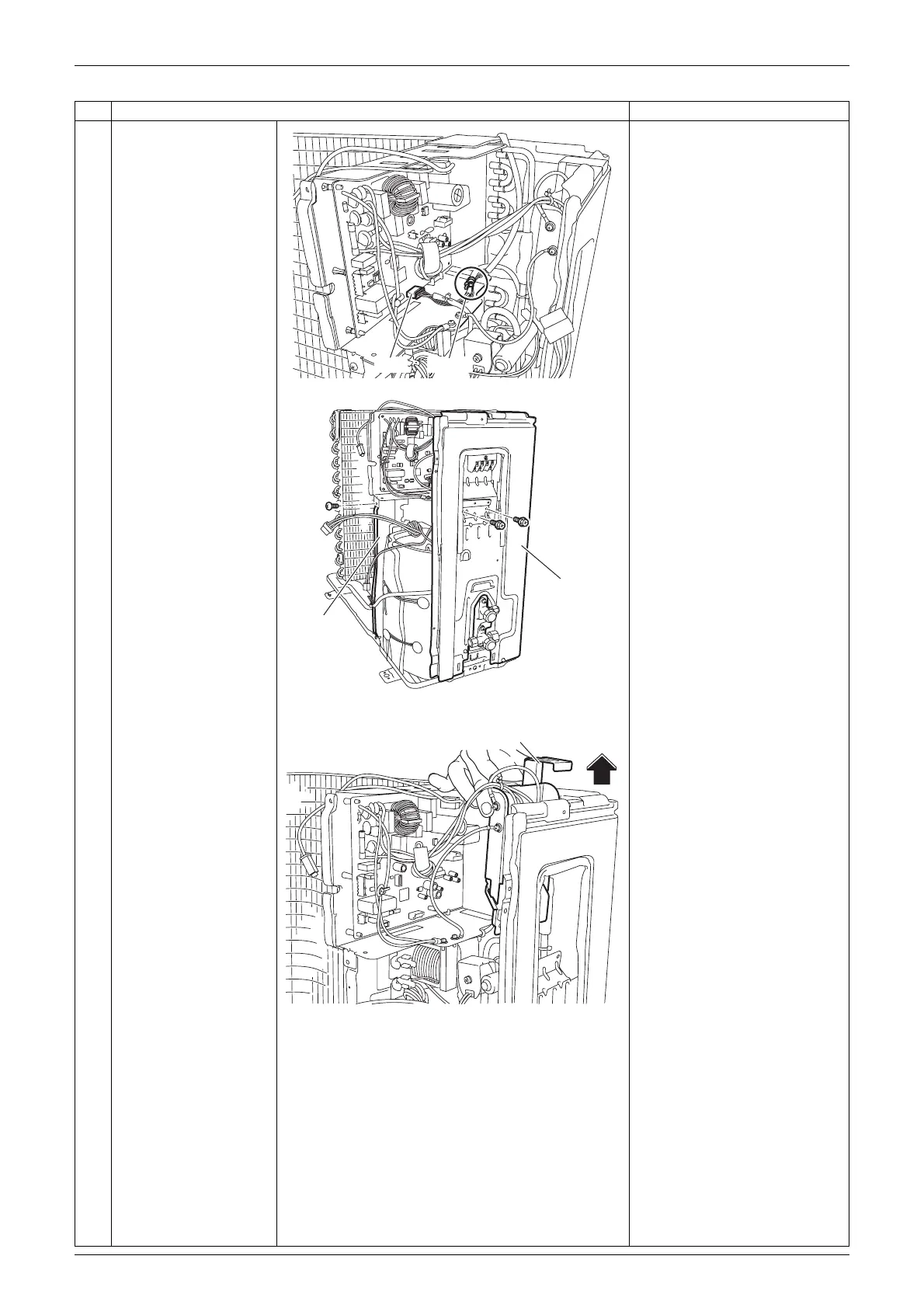

Electrical Box Si001560EB
8 Removal Procedure
8 Disconnect the
connector [S90] and
remove the clamp.
[S90]: thermistors
9 Remove the 2 screws
on the right side panel,
and then the screw on
the partition plate.
10 Lift up the terminal
board mounting plate
from the right side
panel.
Step Procedure Points
[S90]
Clamp
(R22396)
Partition
plate
Right side
panel
(R22397)
Terminal board mounting plate
(R22398)
