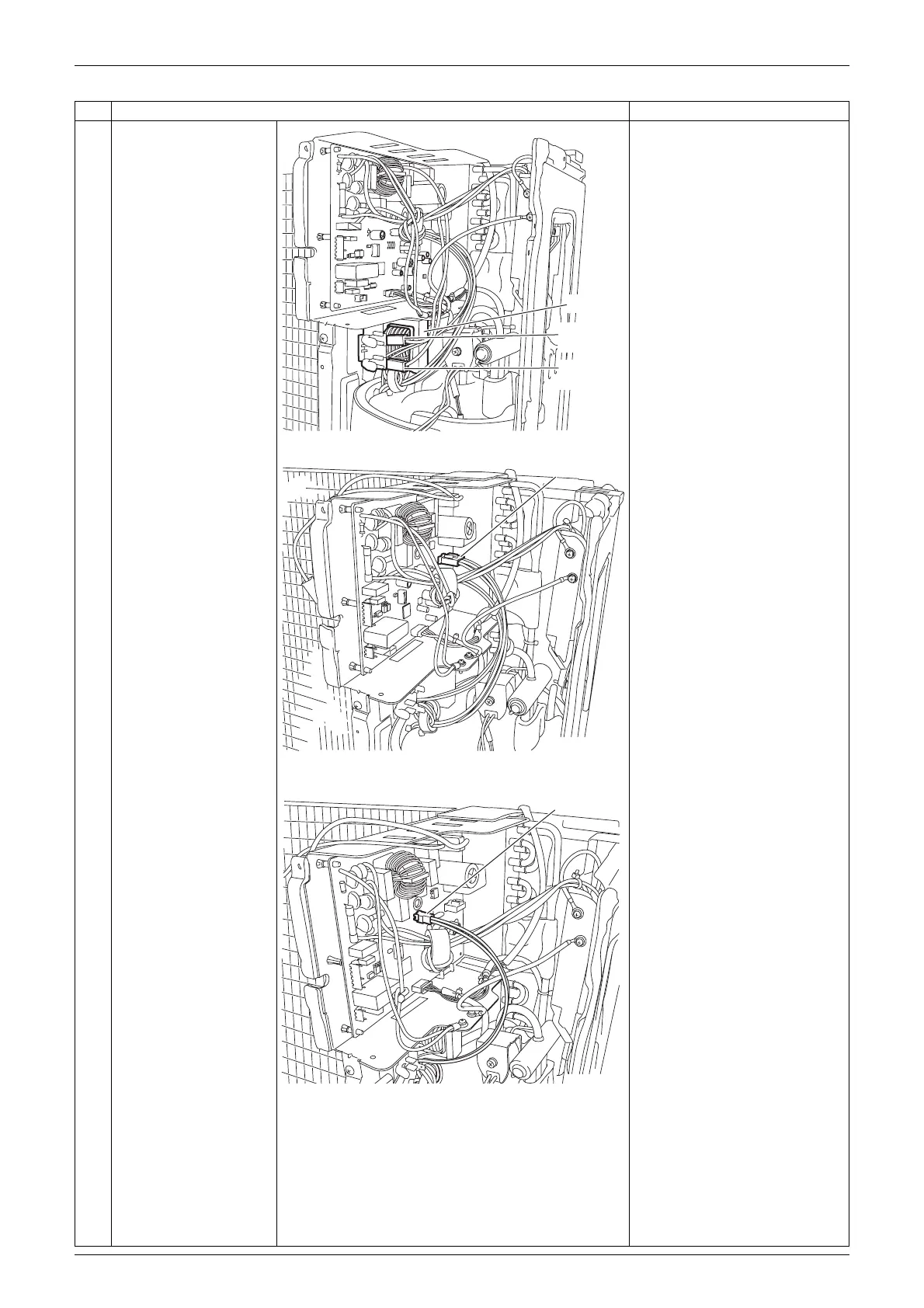

Si001560EB Electrical Box
Removal Procedure 7
5 Disconnect the 2
connectors from the
reactor.
6 Disconnect the
connector [S30].
[S30]: compressor
7 Disconnect the
connector [S40].
[S40]: overload protector
Step Procedure Points
Reactor
Connector
(brown)
Connector
(orange)
(R22393)
[S30]
(R22394)
[S40]
(R22395)
