Daikin RXP20L2V1B - Outdoor Unit Installation Details; Installing the Outdoor Unit

6 Installation
Installer reference guide
12
(A)RXP20~35L2V1B + RXF20~35A2V1B
R32 split series
4P513661-2 – 2017.11
300
470
192
(mm)
192
>300

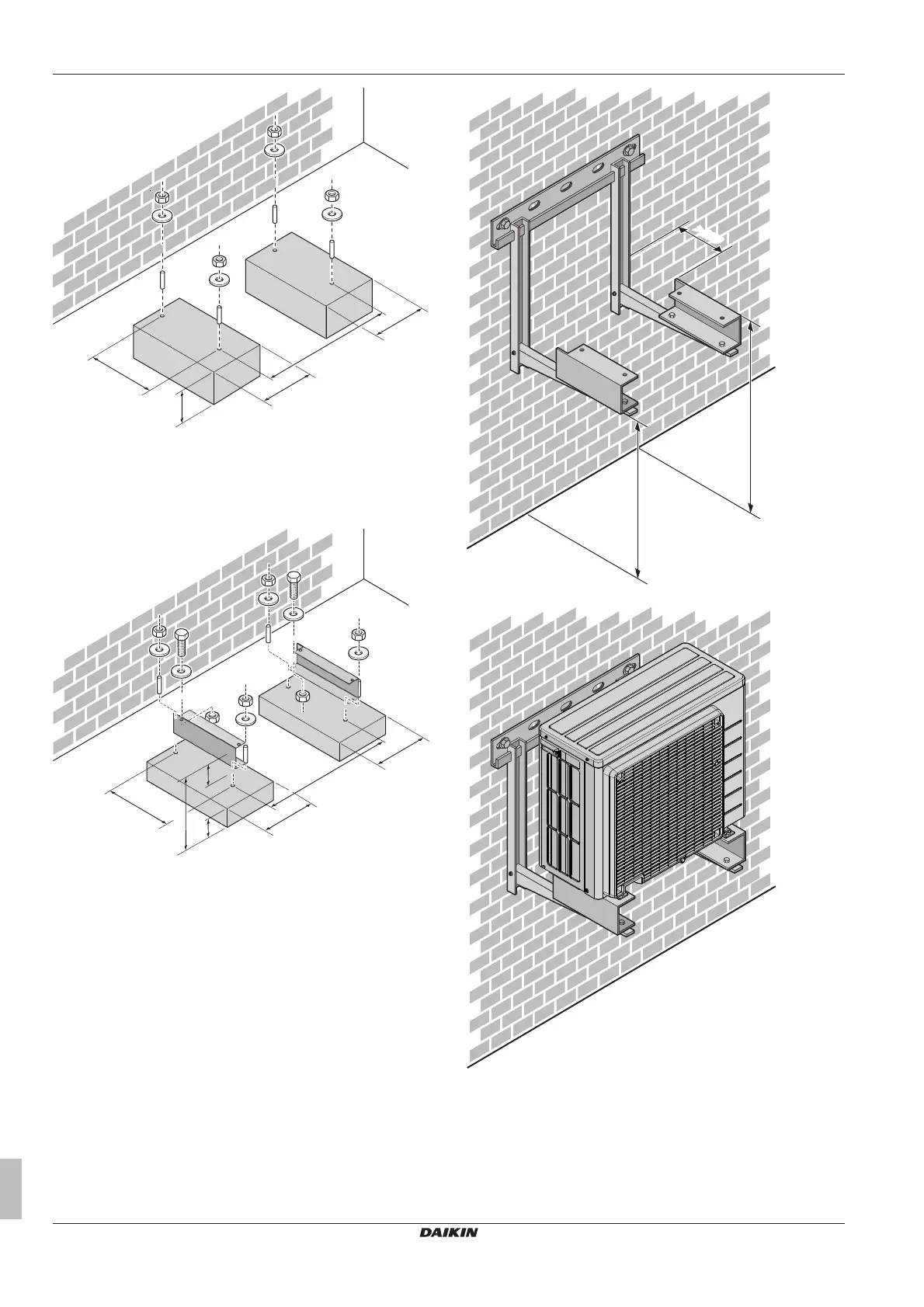

In any case, provide at least 300mm of free space below the unit.
Additionally, make sure the unit is positioned at least 100mm above
the maximum expected level of snow. In this case, it is
recommended to construct a pedestal.
300
470
192
192
(mm)
>300
100
a
a Maximum snowfall height
If the unit is installed on brackets to the wall, install the unit as
follows:
>250
>300
>100
(mm)
a
a Maximum snowfall height
