Removal Procedure 181
2.2 Removal of Front Grille
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembly work.
Step
Procedure Points

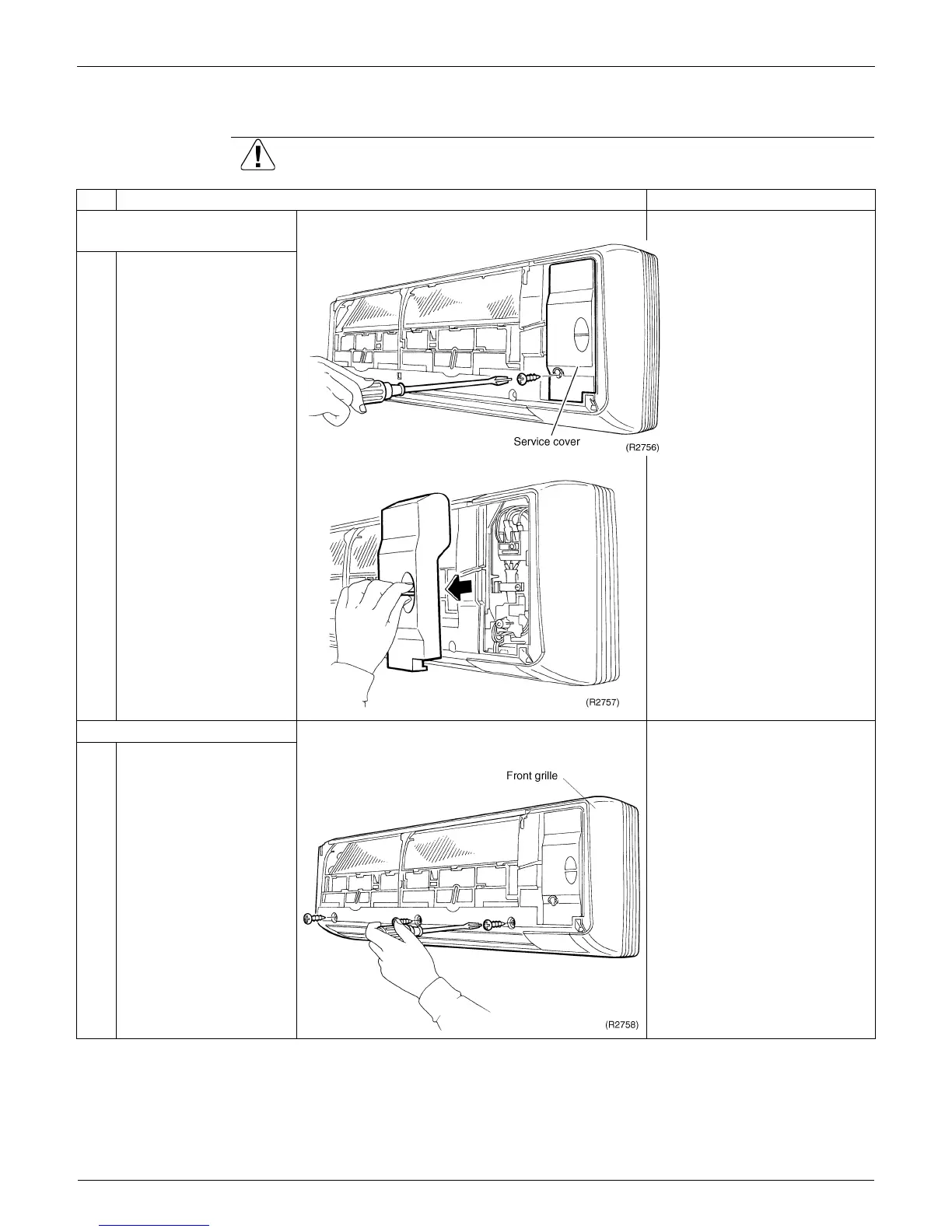

1. Removal of the service
cover.
1
Loosen the screw and
remove the service cover
by the knob.
No field setting switch is
inside it.
You can remove the front
grille without detaching the
service cover.
2. Removal of the front grille.
1
Loosen the 3 fixing
screws of the front grille.
It has no fixing screws inside
blades, though previous
models had them.
To Next Page
