Main Functions SiUS04-904
30 Function and Control
1.8 INTELLIGENT EYE
This function detects movement in the room by a motion sensor (INTELLIGENT EYE), reducing
capacity when the room is empty in order to save electricity.

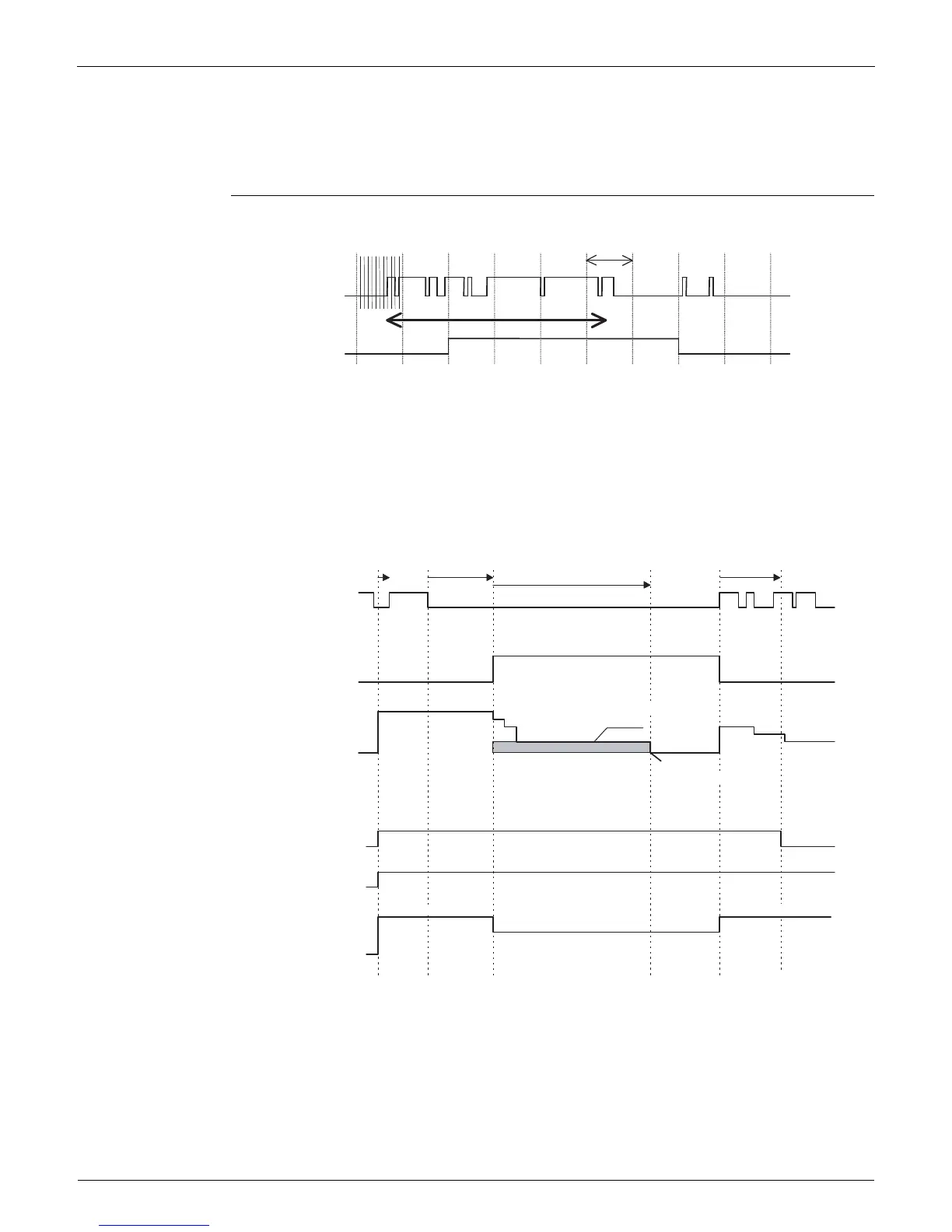

Processing 1. Detection method by INTELLIGENT EYE
This sensor detects human motion by receiving infrared rays and displays the pulse wave
output.
A microcomputer in the indoor unit carries out a sampling every 20 msec. and if it detects 10
cycles of the wave in one second in total (corresponding to 20msec. 10 = 200msec.), it
determines that there is movement in the room as the motion signal is ON.
2. The motions (for example: in cooling)
When a microcomputer does not have a signal from the sensor in 20 minutes, it detects that
nobody is in the room and operates the unit at a temperature shifted 3.6°F(2°C) from the set
temperature. (COOL : 3.6°F(2°C) higher, DRY: 1.8°F(1°C) higher, AUTO : according to the
operation mode at that time.)
1 In case of FAN mode, the fan speed reduces by 50 rpm.
If the sensor detects the outputs 10 times/sec.
or more, it judges humans exist.
1sec
sampling (20 msec)
High
Low
ON
OFF
Sensor output
(Human motion)
Human detection
signal
(R2821)
ON
OFF
RESET.
C/O Set temp. + Δ3.6˚F
H/P Set temp. - Δ3.6˚F
Human detection
signal
20 min. 20 min.
within 20
minutes.
40 min.
MaxHz
MinHz
0Hz
Compressor
speed
The lower limit by detecting
human.
(Prohibition of thermostat-off)
ON
OFF
ON
OFF
Operation
OFF
Fan speed (1)
Set speed - 50 rpm
Set speed Set speed
in case of
thermostat-off
Frequency at set temp. + Δ3.6˚F
Set temp.
(R0272)
Remote controller
INTELLIGENT EYE
button
