Daikin RXS35G2V1B9 User Manual

Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B SiENBE04-808_A
233 Removal Procedure
3.6 Removal of Four Way Valve
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

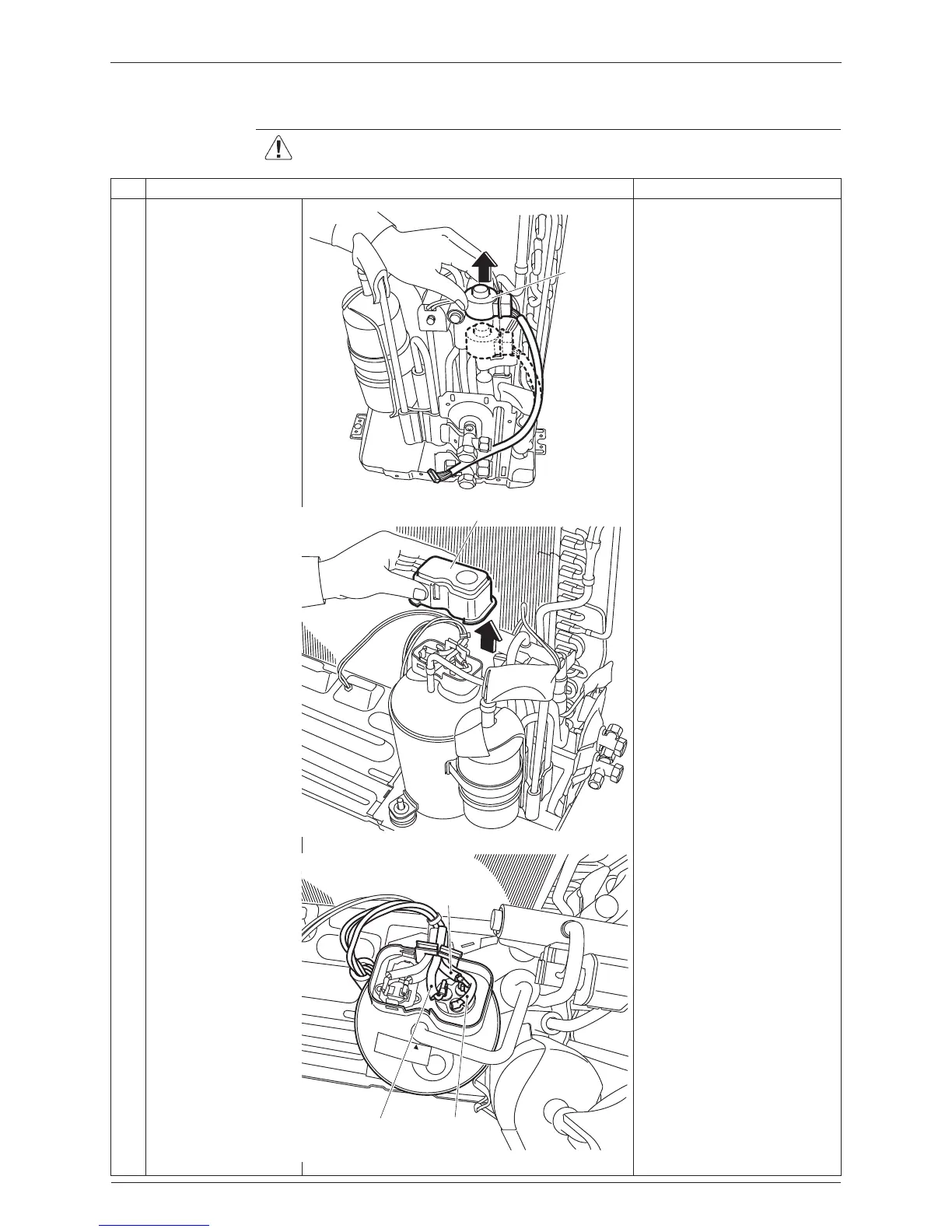

1
Pull out the electronic
expansion valve coil.
2
Remove the terminal
cover.
3
Disconnect the lead
wires of the
compressor.
(R7233)
Electronic
expansion
valve coil
(R7234)
Terminal cover
V
W
U
(R7235)
Red (U)
Yellow (V) Blue (W)
