SiENBE04-808_A Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B

Removal Procedure 278

5.5 Removal of Sound Blanket / Thermistors

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step

Procedure Points

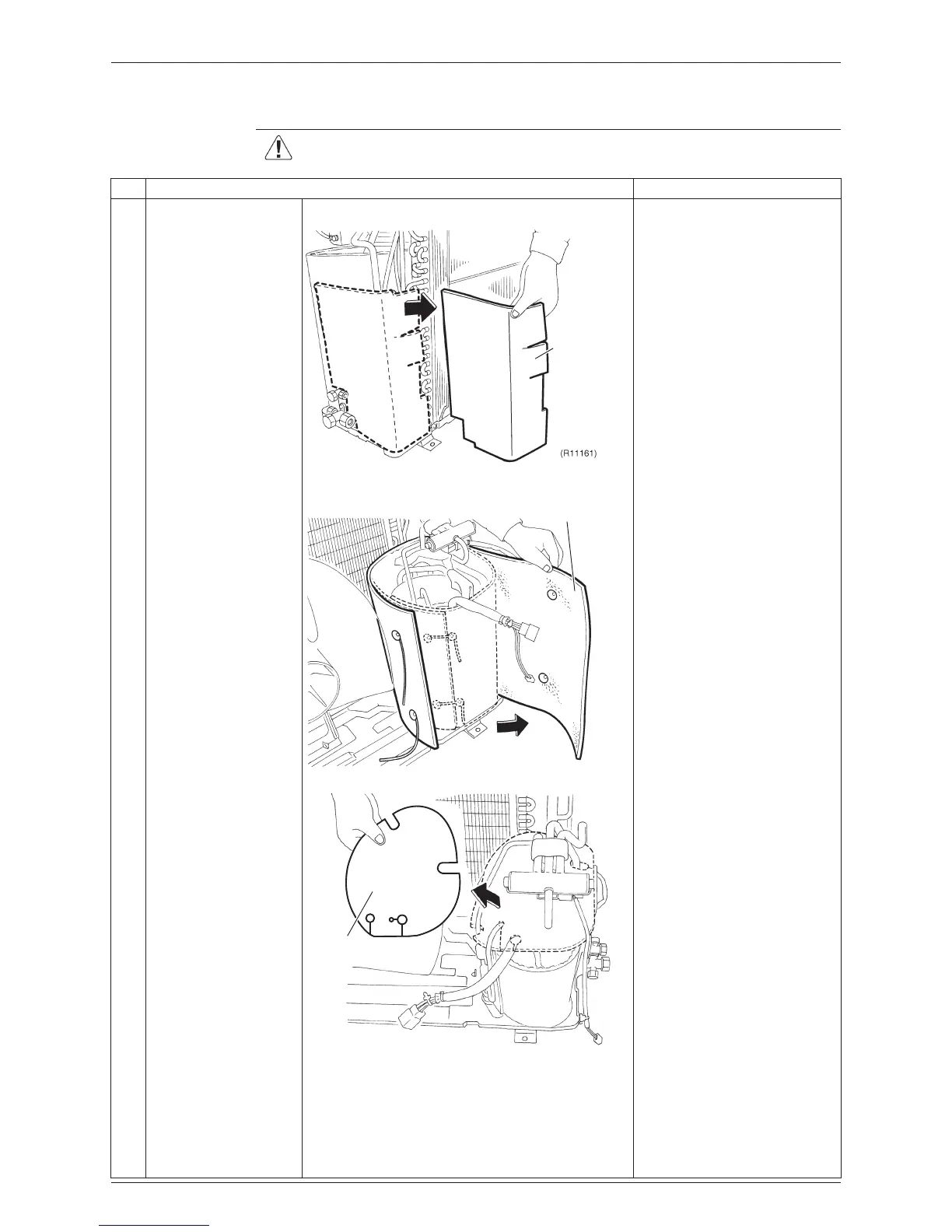

Remove the sound

blanket (back).

Remove the sound

blanket (outer).

 Since the piping ports are

torn easily, remove the

sound blanket carefully.

Remove the sound

blanket (top upper).

Sound blanket

(back)

(R5293)

Sound blanket

(outer)

(R5294)

Sound blanket

(top upper)
