Si-71A For FAY71F (A)
Removal Procedure 165

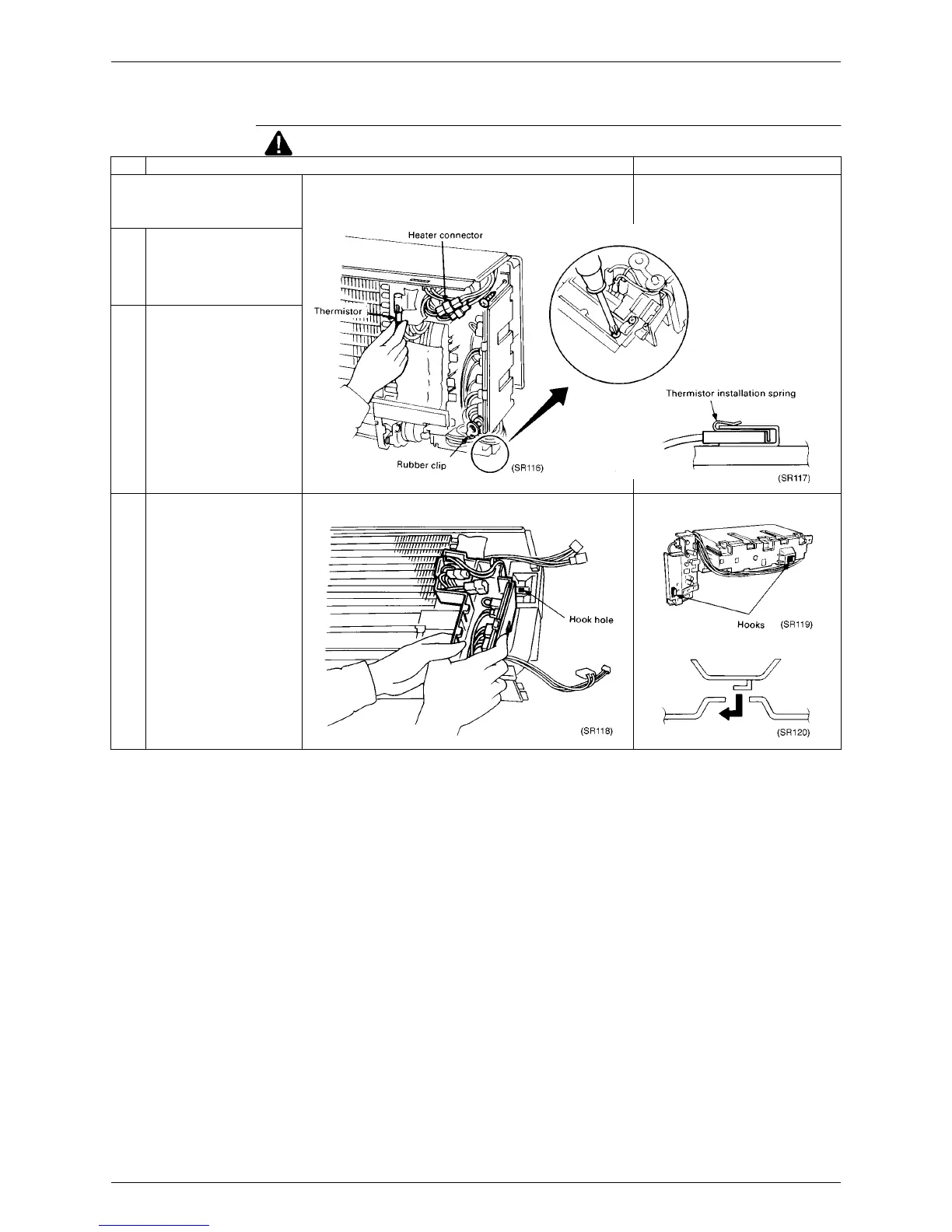

4.3 Removal of Electrical Parts Box
Procedure
Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
∗
Remove the left and right side
panels, operation display cover and
front grille according to the
procedures for their removal.
The left and right side panels have to
be taken off in order to remove the
front grille.
1 Remove the
(1) thermistor,
(2) heater connector
and
(3) rubber clip
connected to the PC board.
2 Remove the 2 screws
fastening the electrical parts
box to the units.
3 Lift the electrical parts box
and remove by moving
toward the right.
To Next Page
