SiBE121021_C SA Indoor Unit - FFQ, FCQ, FDBQ, FBQ, FHQ Series
Operation Manual 229
10 English
Liquid Crystal Display

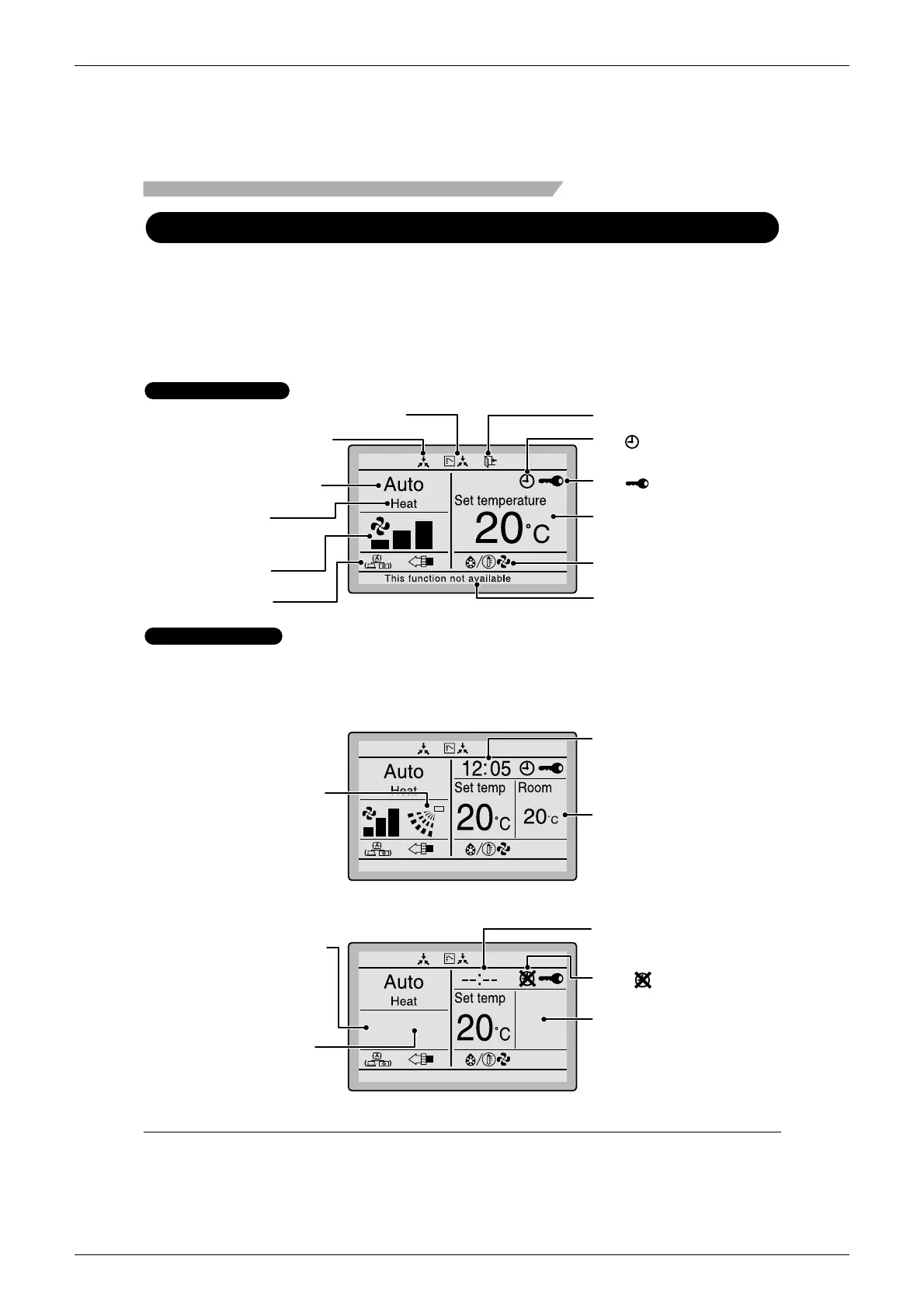

Standard display
<Standard display example>
7. Ventilation
3. Fan speed
1. Operation mode
12. Home Leave
8. ( ) display
5. Defrost/Hot start
6. Message
11. Changeover under control
9. ( ) display
Detailed display
Return Setting
15.Detailed selection
13.Airflow direction
<Detailed display example 1>
A
Return Setting
<Detailed display example 2>
3.Fan speed display
Detailed selection
Clock display
(with no clock settings)
16. ( ) display
Names and Functions
10.Under centralized
control
2. Automatic
operation mode
4. Set temperature
display
(Displayed only when
the air conditioner is in
operation.)
14. Clock (24 hours
real time clock)
(with room
temperature settings)
(with no detailed items
selected)
(with no fan speed
control function)
Airflow direction
display
(with no airflow direction
settings)
îš„ The airflow direction, clock, and detailed selection items appear
on the detailed display screen in addition to the items appearing
on the standard display.
• Two types of liquid crystal display (LCD) are available. The standard display is by
default set.
•
To go to the detailed display, select the detailed display in the main menu. (See page 46.)
• The displayed contents of the screen vary with the operation mode of the equipment
interlocked. (The following display will appear when the air conditioner is in automatic
heating operation.)
