Daikin Super Multi NX FFQ35B8V1B

SiBE121021_C Outdoor Unit - 50~75 Class
Removal Procedure 399
1.9 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step

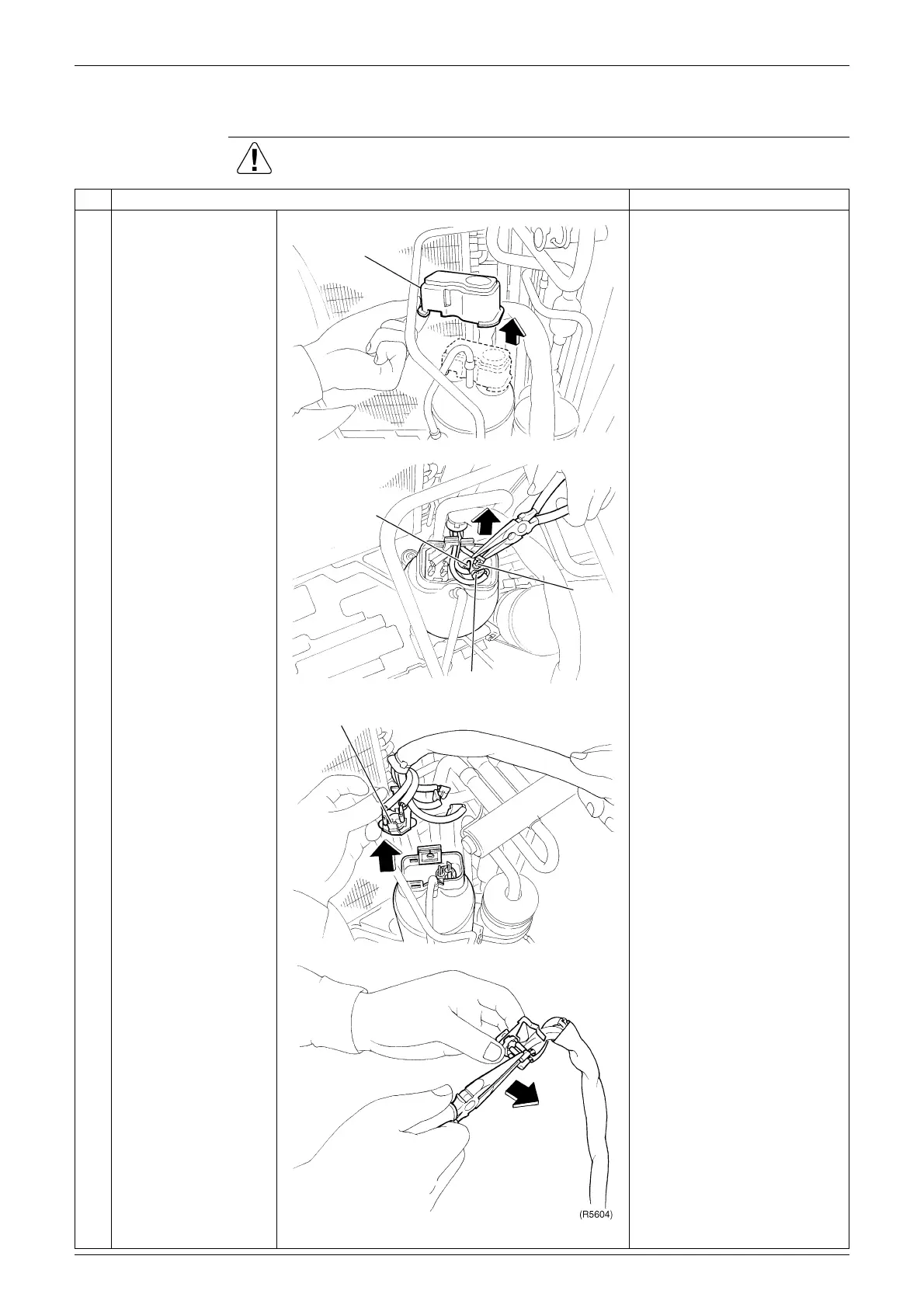

Procedure Points
1
Remove the terminal
cover.
2
Disconnect the
compressor lead wires.
3
Detach the overload
protector.
(R12914)
Terminal cover
V(yellow)
U(red)
W(blue)
(R5602)
(R12916)
Overload protector
