Daikin Super Multi NX FFQ35B8V1B

SiBE121021_C Outdoor Unit - 80/90 Class
Removal Procedure 417

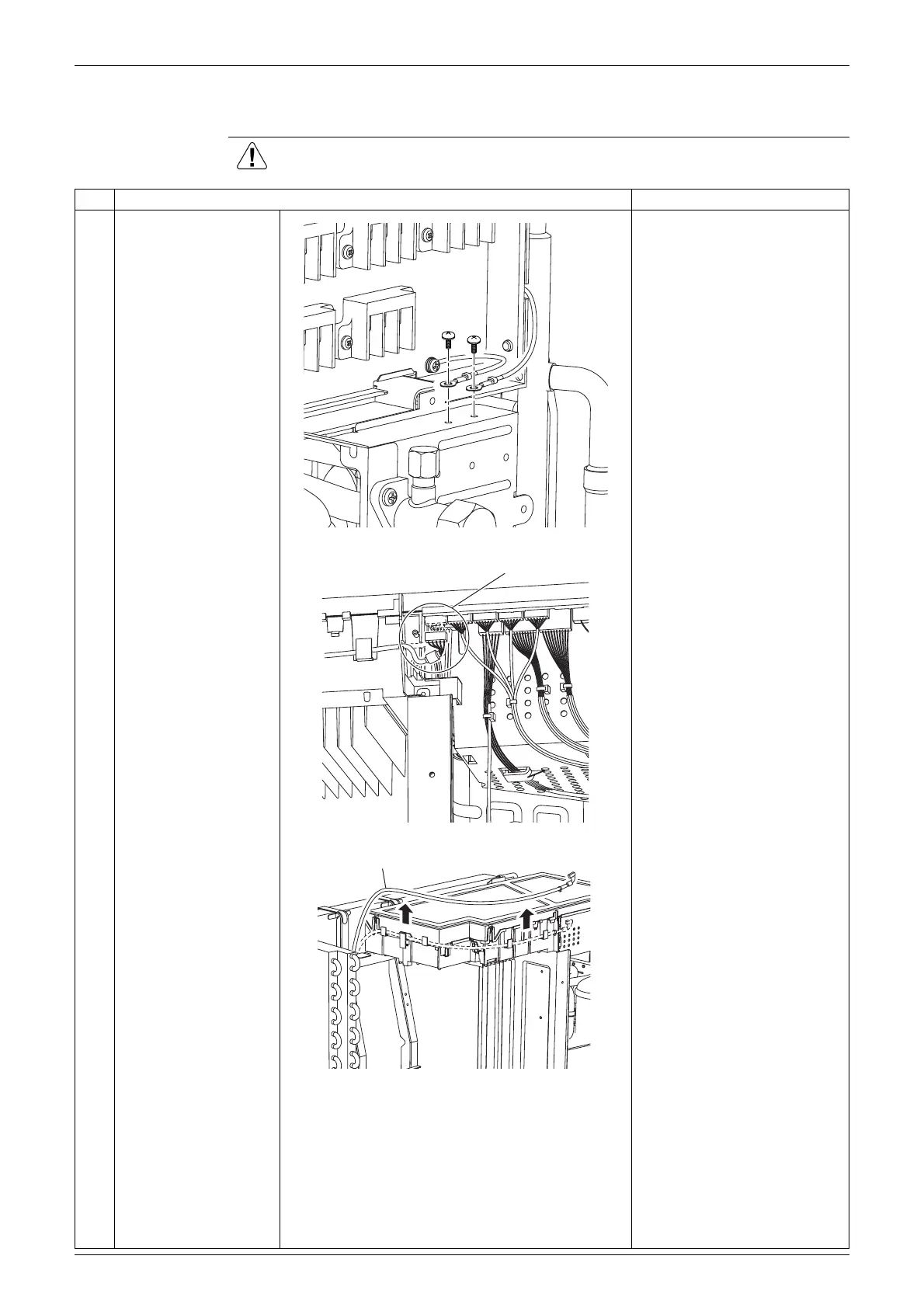

2.2 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the 2 screws
to detach the earth
wires.
2
Disconnect the
connector for the fan
motor [S70].
3
Release the fan motor
lead wire.
(R10396)
[S70]
(R10397)
(R12919)
Fan motor lead wire
