SiBE121021_C Outdoor Unit - 50~75 Class

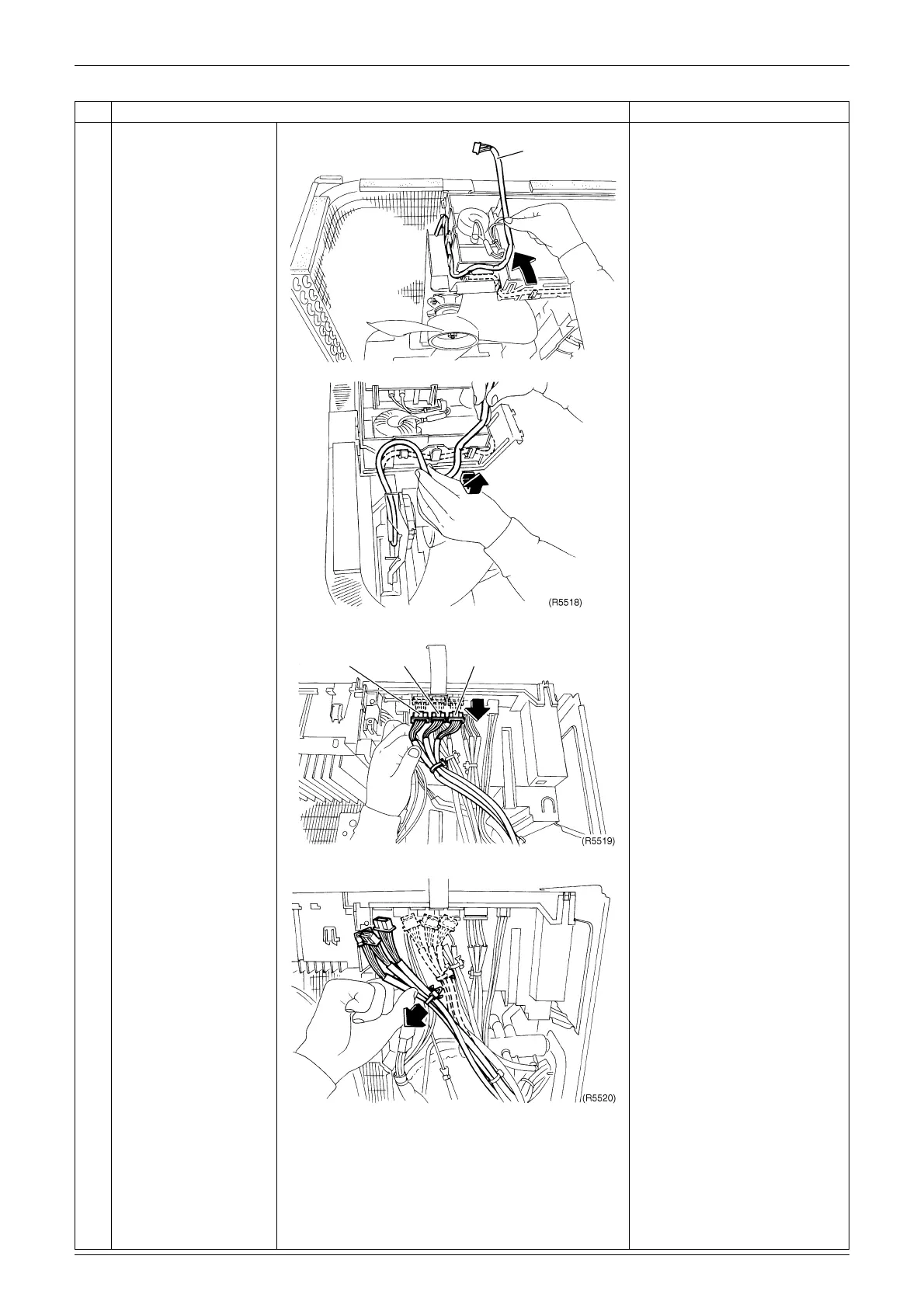

Removal Procedure 377
6
Release the fan motor
lead wire from the
hooks.
7
Disconnect the
connectors for the
electronic expansion
valve coils.
[S20] (white) : room A
[S21] (red) : room B
[S22] (blue) : room C

4 room models also have
[S23] (yellow) for room D.
8
Pull out the clamp.
Step
Procedure Points
Fan motor
lead wire
(R12903)
[S20]
[S21] [S22]
