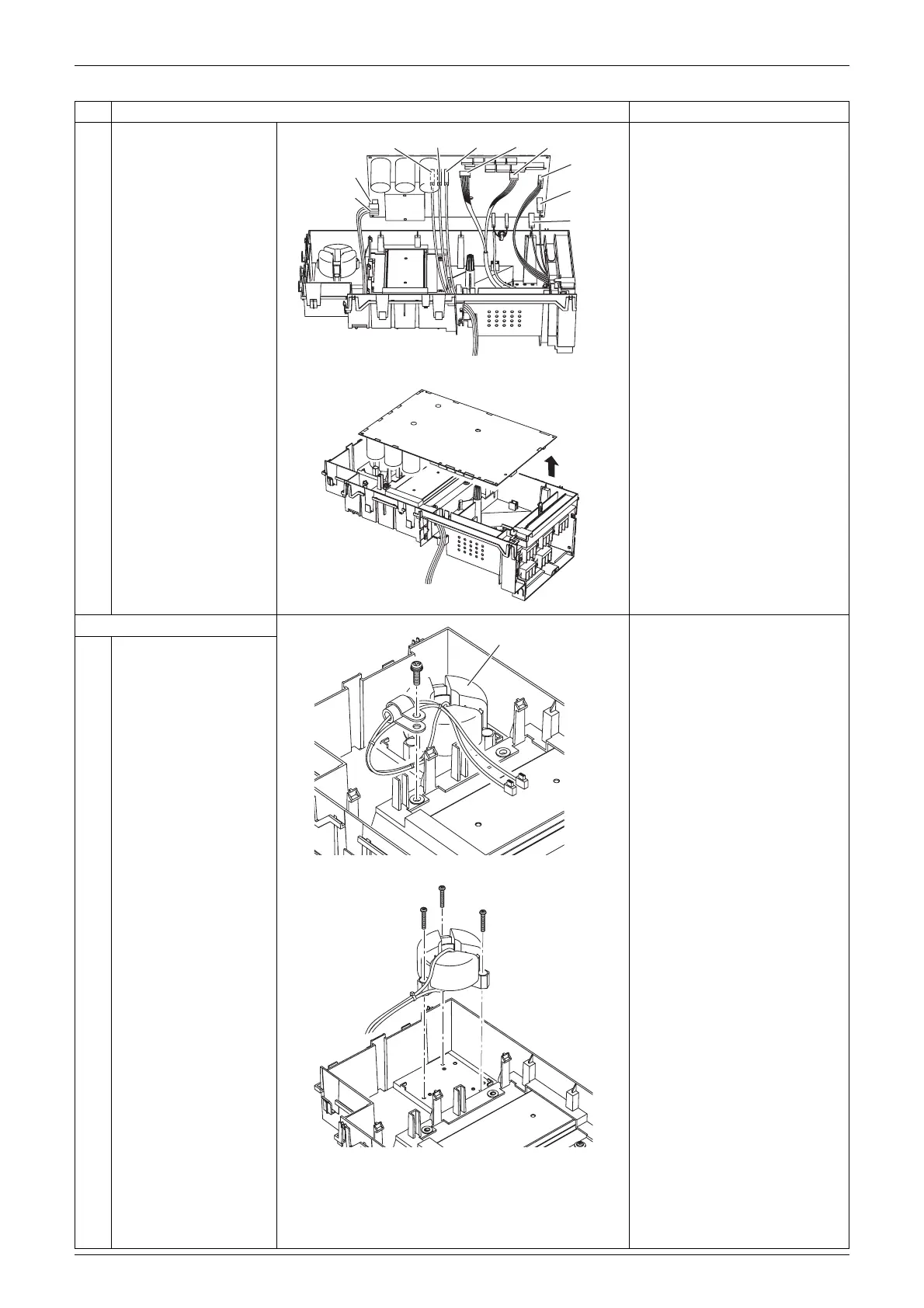

424 Removal Procedure
5
Disconnect the
connectors.

[S51] [S101] : service
monitor PCB

[S10] : terminal board
(transmission)

[HR1] [HR2] : reactor

[AC1] [AC2] : terminal board
(power supply)

[U] [V] [W] : compressor

Refer to page 82 for detail.
6
Remove the main PCB.
2. Remove the reactor.
1
Remove the screw.
2
Remove the 3 screws
and lift the reactor
upward to remove it.
Step
Procedure Points
(R10407)
[S10]
[S101]
[S51]
W(blue)V(yellow)
U(red)
[HR2](blue)
[HR1](white)
[AC2]
(blue)
[AC1]
(brown)
(R10408)
(R10409)
Reactor
(R6434)
