SiBE121021_C Remote Controller
Printed Circuit Board Connector Wiring Diagram 77
2.1.2 BRC1E51A7
Connectors and
Other Parts

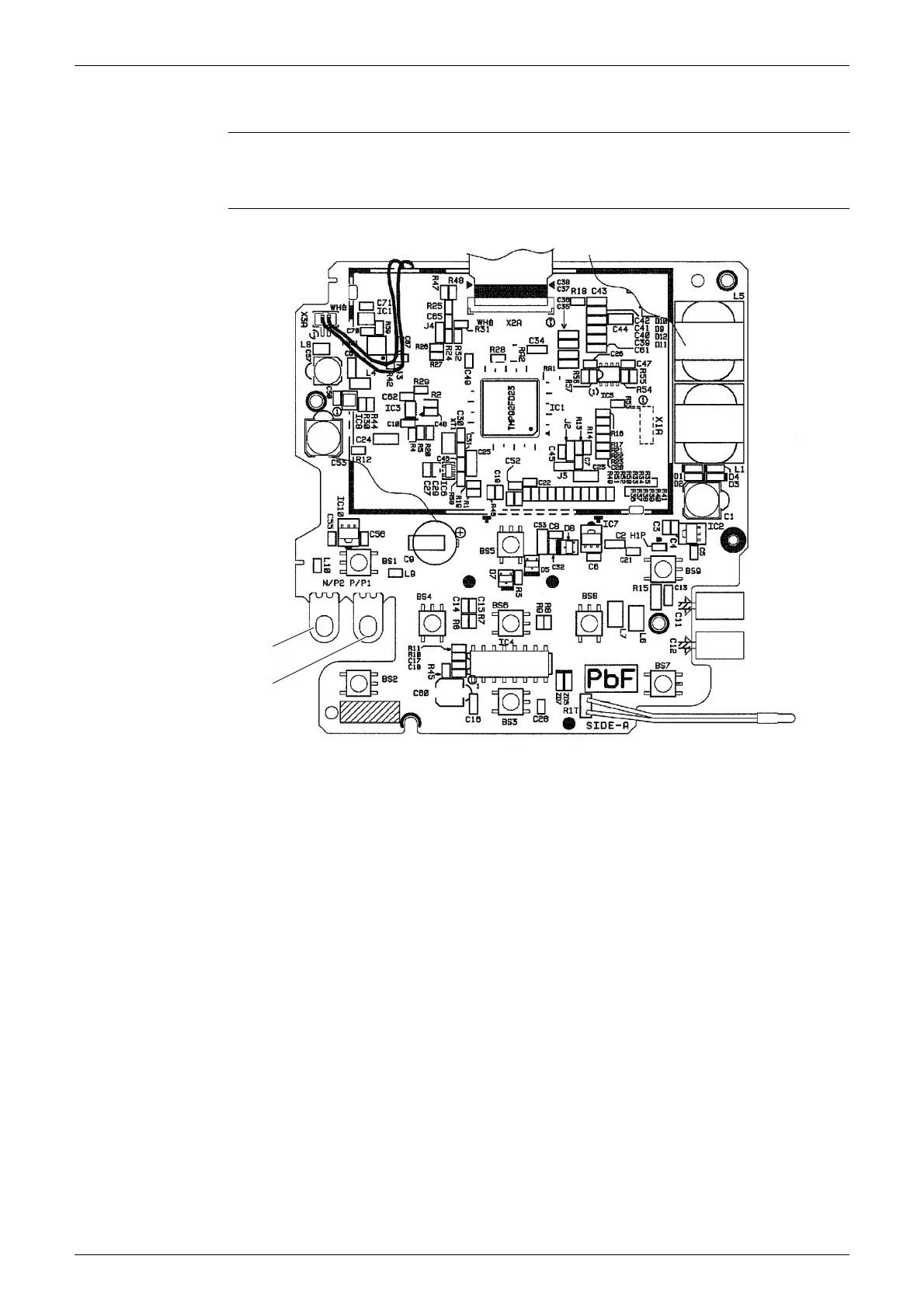

PCB Detail
1) P1, P2 Terminal for indoor unit
2) R1T Room temperature thermistor
P2
R1T
P1
2P243326-1
