dImensIonal drawIngs
www.DaikinApplied.com 23 IM 1137-4 • TEMPLIFIER
®
MODEL TGZ
NOTE: For optional left-hand connections, reverse the images below.

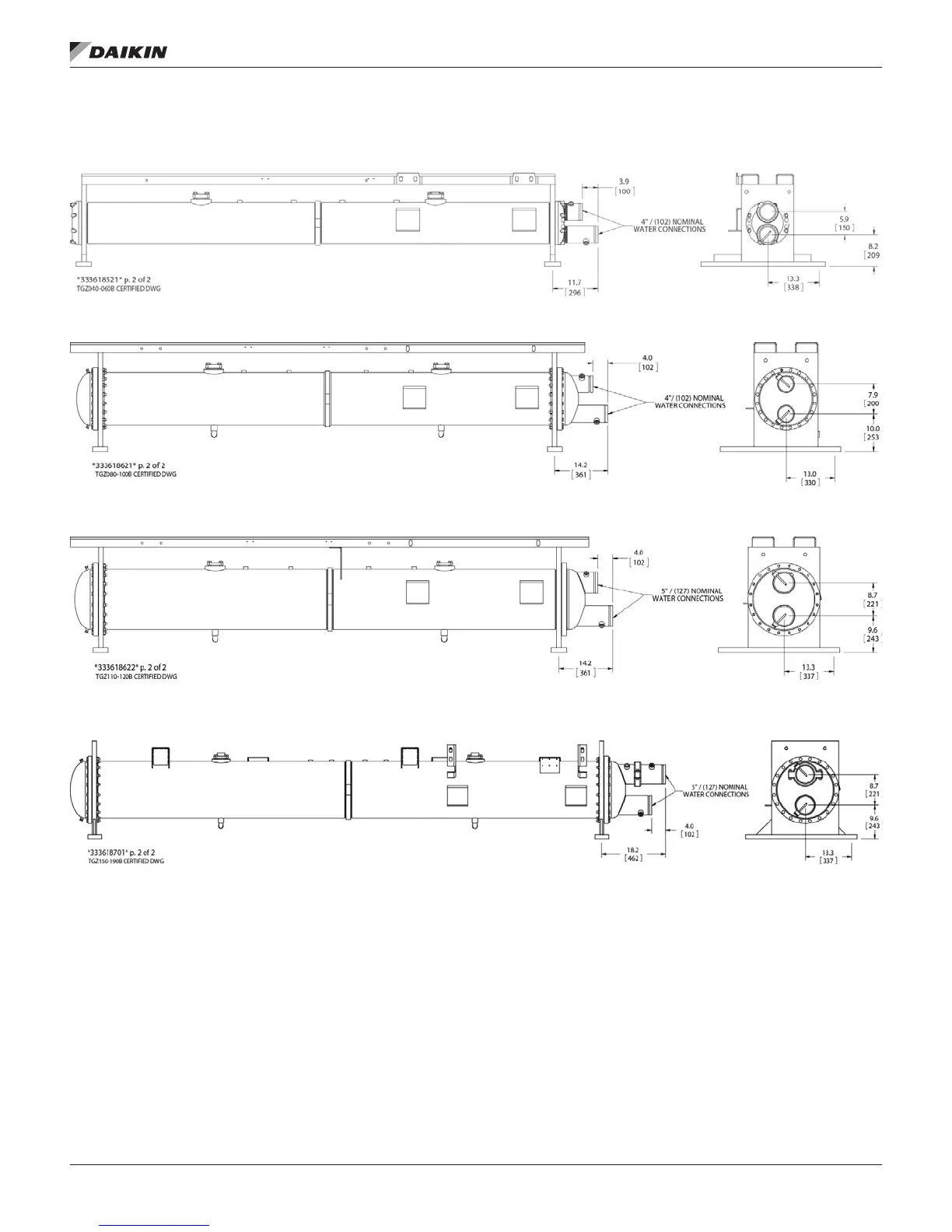

Figure 21: Dimensions, TGZ040B – TGZ060B, Optional 2-Pass condenser
Figure 22: Dimensions, TGZ080B –TGZ100B, Optional 2-Pass Condenser
Figure 23: Dimensions, TGZ110B – TGZ120B, Optional 2-Pass Condenser
Figure 24: Dimensions, TGZ150B – TGZ190B, Optional 2-Pass Condenser
NOTE: Tube sheet-to-tube sheet dimensions are the same
for a 4-pass condenser.
