IM 1137-4 • TEMPLIFIER
®
MODEL TGZ 24 www.DaikinApplied.com
dImensIonal drawIngs
Weights
NOTE: Refer to Figure 25 for lifting and mounting point’s physical location.

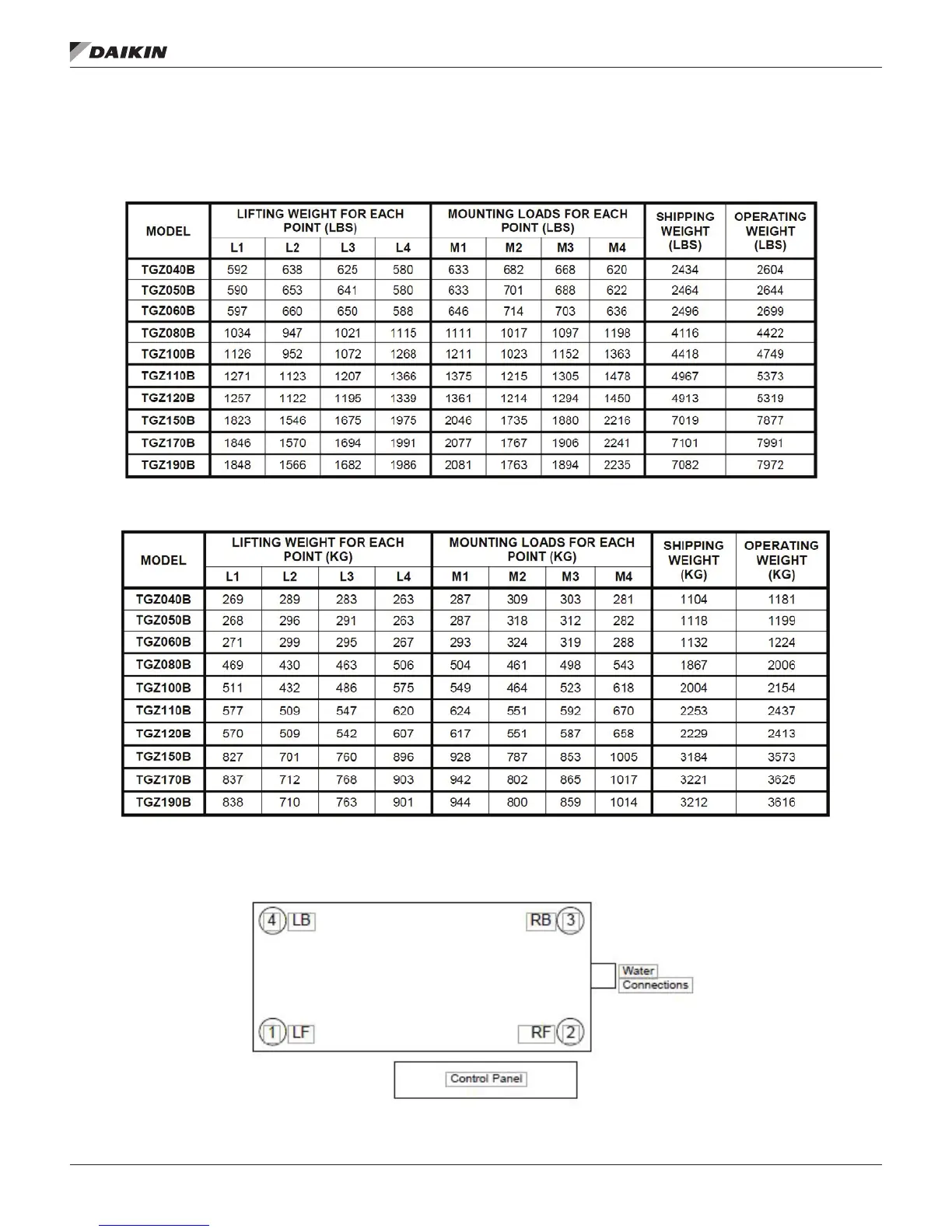

Table 12: TGZ Lifting, Mounting, and Total Weights, Inch-Lbs Units
Table 13: TGZ Lifting, Mounting, and Total Weights, SI Units
Figure 25: Lifting and Mounting Points Location
