eleTrICal daTa
www.DaikinApplied.com 31 IM 1137-4 • TEMPLIFIER
®
MODEL TGZ
Circuit Breakers
The circuit breaker used in the High Short Circuit panel option may have a higher trip rating than the unit Maximum Overload Protection (MOP)
value shown on the unit nameplate. The circuit breaker is installed as a service disconnect switch and does not function as branch circuit
protection, mainly that the protection device must be installed at the point of origin of the power wiring. The breaker (disconnect switch) is oversized
to avoid nuisance trips at high ambient temperature conditions.
Field Wiring Diagram

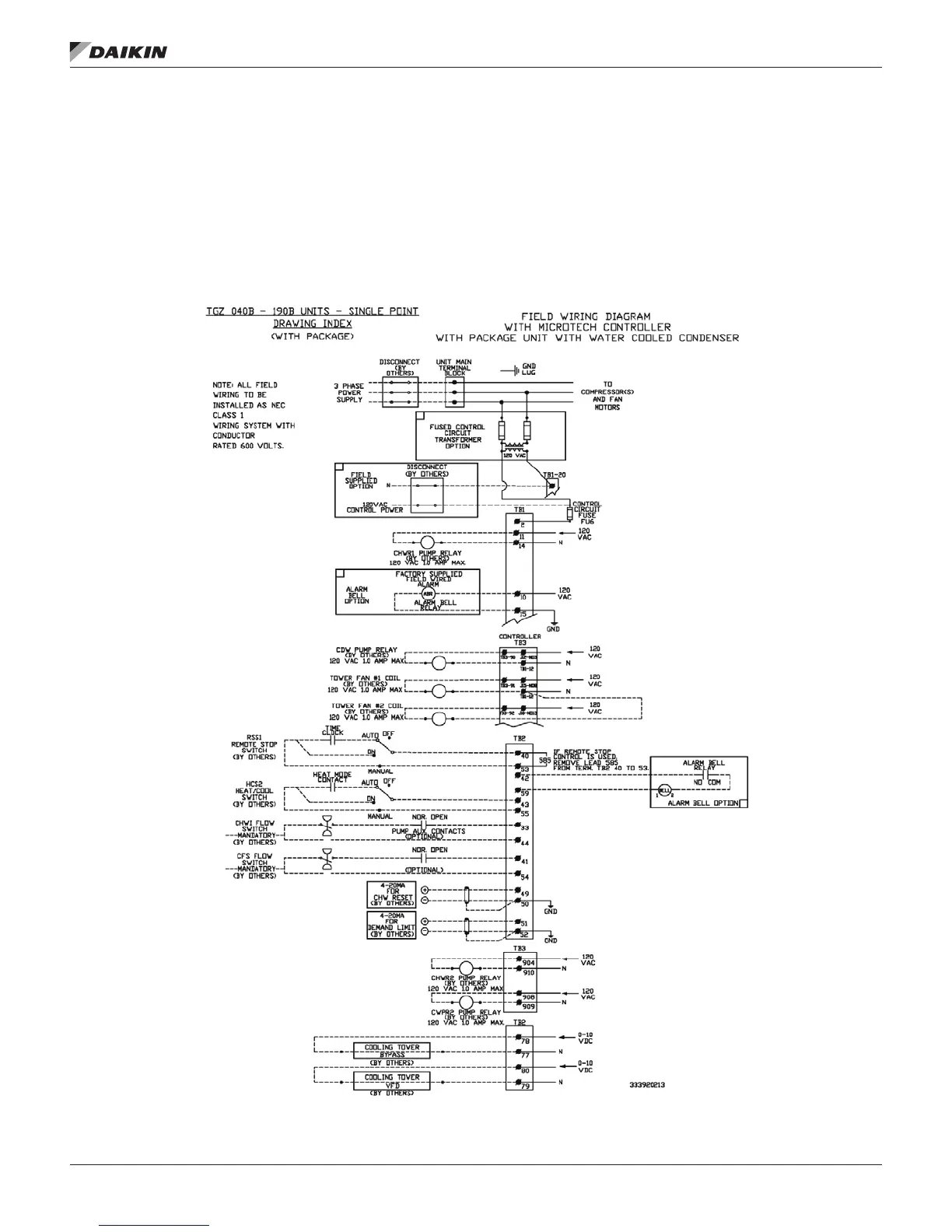

Figure 28: Field Wiring Diagram
To Next Page
