Functions

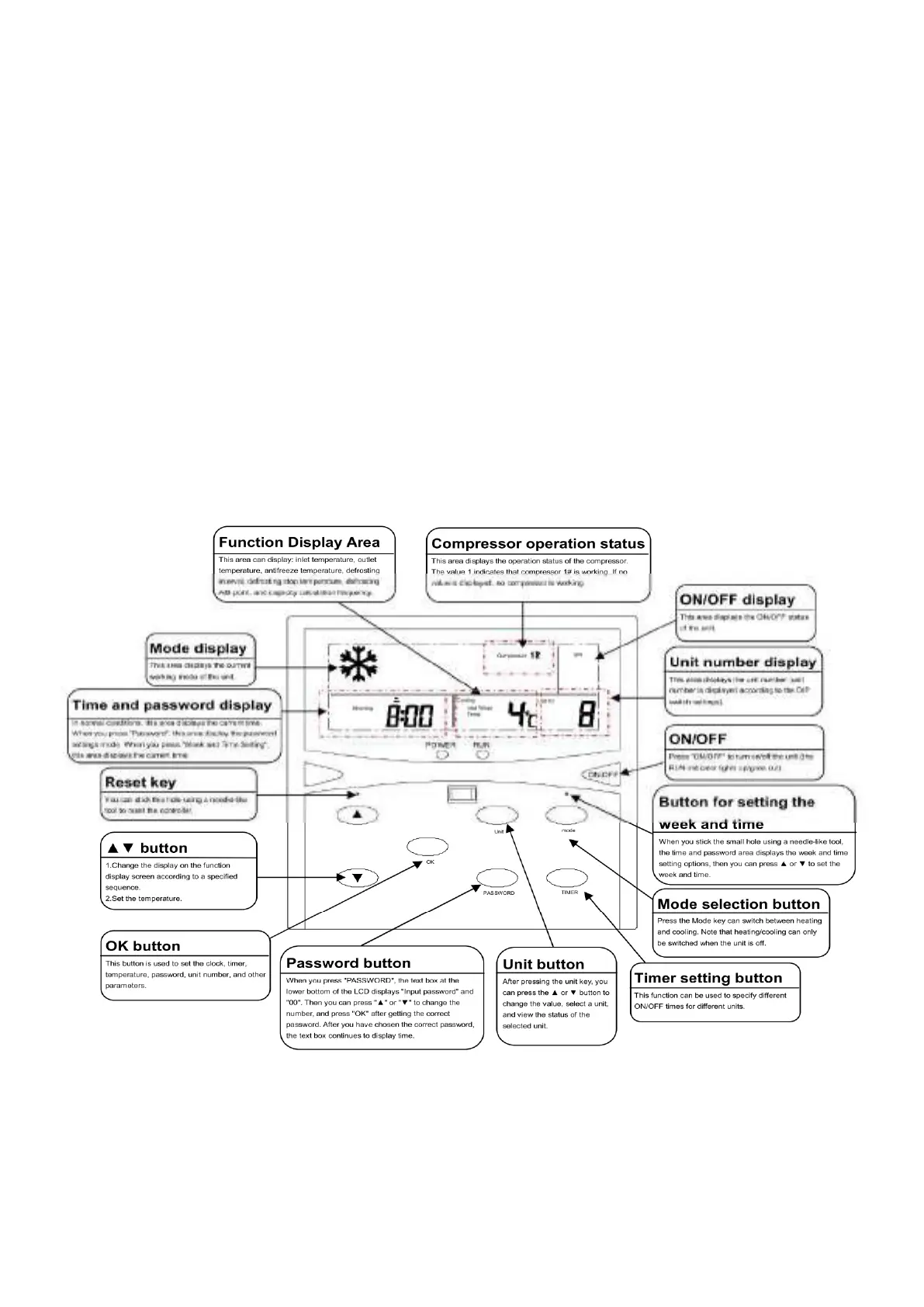

MC305 is a wall-mounted LCD controller which directly controls air conditioners through keys on its panel.
Features
Two operation modes: heating/cooling (note: operation modes can only be switched when the unit is off)
Temperature setting range for inlet water: cooling 9°C - 25°C; heating 25°C - 50°C; Temperature setting range for
inlet water: cooling 9°C - 25°C (-10°C - 10°C for units with low water temperature);heating 25°C - 50°C.
● Temperature setting range for anti-freeze: 2°C - 5°C.
● A LED is used to indicate the status of the unit (ON/OFF).
● Timed ON/OFF: a timing schedule can be set for a maximum of 7 days with up to 4 timed actions each day.
● Real-time clock.
● Error code display speeds up diagnosis.
● Blue back light will shine 8 second if any key is pressed, it makes sure that we can browse or modify parameters
even in dark.
Use Specication
