18

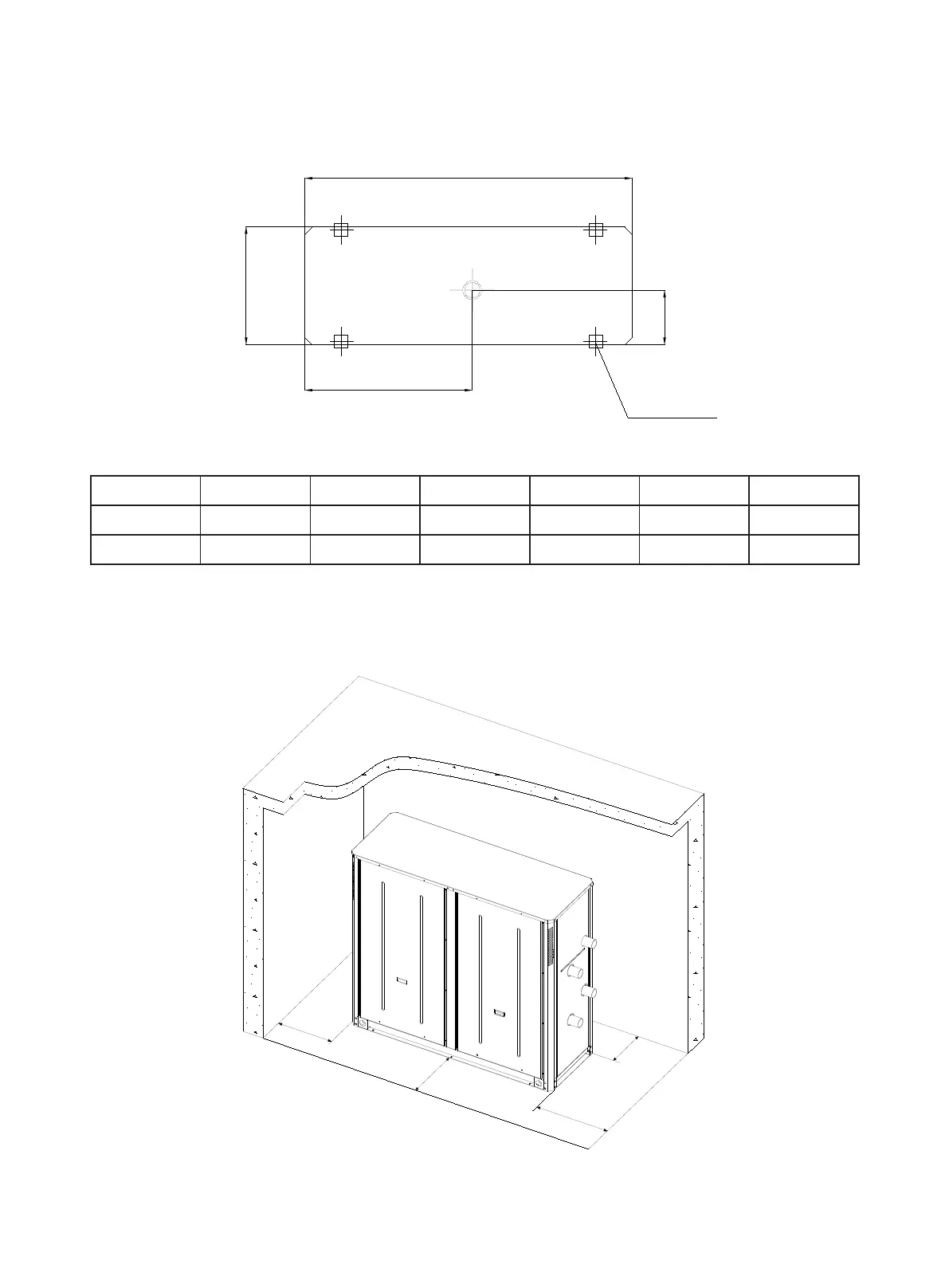

Unit Barycenter And Bearing
Space Allocated for A Single Chilled Water Unit
X
Y
A B
C D
1800
650
FRONT OF UNIT
INSTALLATION
POSITION
BARYCENTER
UNIT OPERATION BARYCENTER AND POINT BEARING (TOP VIEW)
Model X(mm) Y(mm) A(kg) B(kg) C(kg) D(kg)
WGZ030B5 910 300 163 168 192 197
WGZ040B5 920 300 197 209 233 246
≧
1600
≧
400
≧
600
≧
200
UNIT：mm
