Daikin WSC113 - Page 47

IM 1044-2 Centrifugal Chillers 47

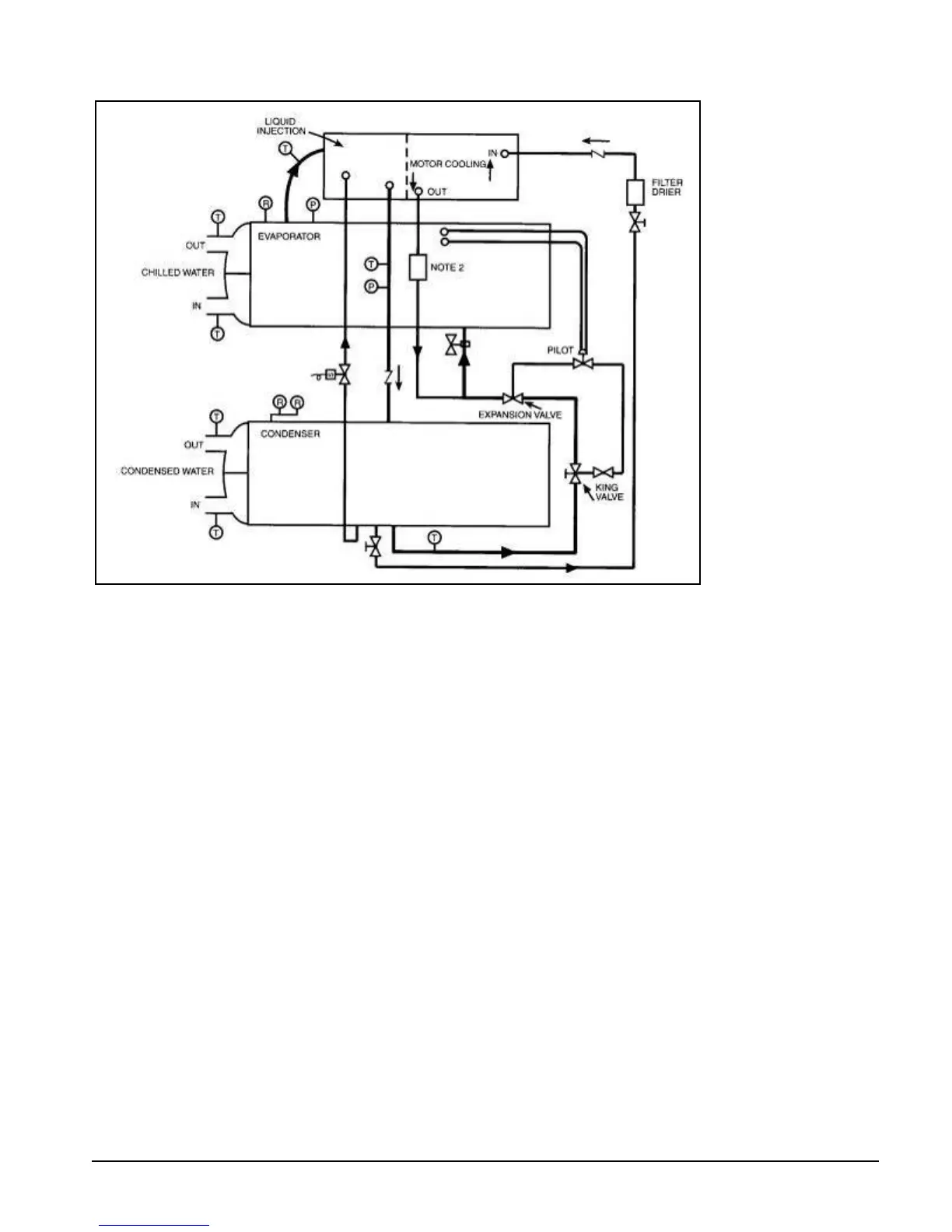

Figure 8. Typical Refrigerant Flow Diagram
1. Connections are not necessarily in correct relative location.
2. Filter is for burnout protection of the refrigerant.
