FRONT BUMPER - STEPS
REMOVAL
(1) Remove fascia. (Refer to 13 - FRAME &
BUMPERS/BUMPERS/FRONT FASCIA -
REMOVAL)
(2) Remove the bolts and remove the steps. (Fig.
1)
INSTALLATION
(1) Install step and bolts.
(2) Tighten bolts to 20 N·m (15 ft. lbs.).
(3) Install fascia. (Refer to 13 - FRAME &
BUMPERS/BUMPERS/FRONT FASCIA - INSTAL-
LATION)
FRONT FASCIA
REMOVAL
(1) Remove the screws and cover. (Fig. 2)
(2) Remove push pin fasteners.
(3) Remove fascia screws.
(4) Pull bumper forward off support brackets.
(5) Disconnect electrical connector.
INSTALLATION
(1) Connect outside temperature sensor electrical
connector.
(2) Slide fascia onto the support brackets.
(3) Install fascia screws and tighten to 23 N·m (17
ft. lbs.).
(4) Install push pin fasteners.
(5) Install cover and screws.
REAR BUMPER - STEP
REMOVAL
(1) Remove rear fascia. (Refer to 13 - FRAME &
BUMPERS/BUMPERS/REAR FASCIA - REMOVAL)
(2) Remove frame bolts/nuts. (Fig. 3)
(3) Remove the remaining support bolts.

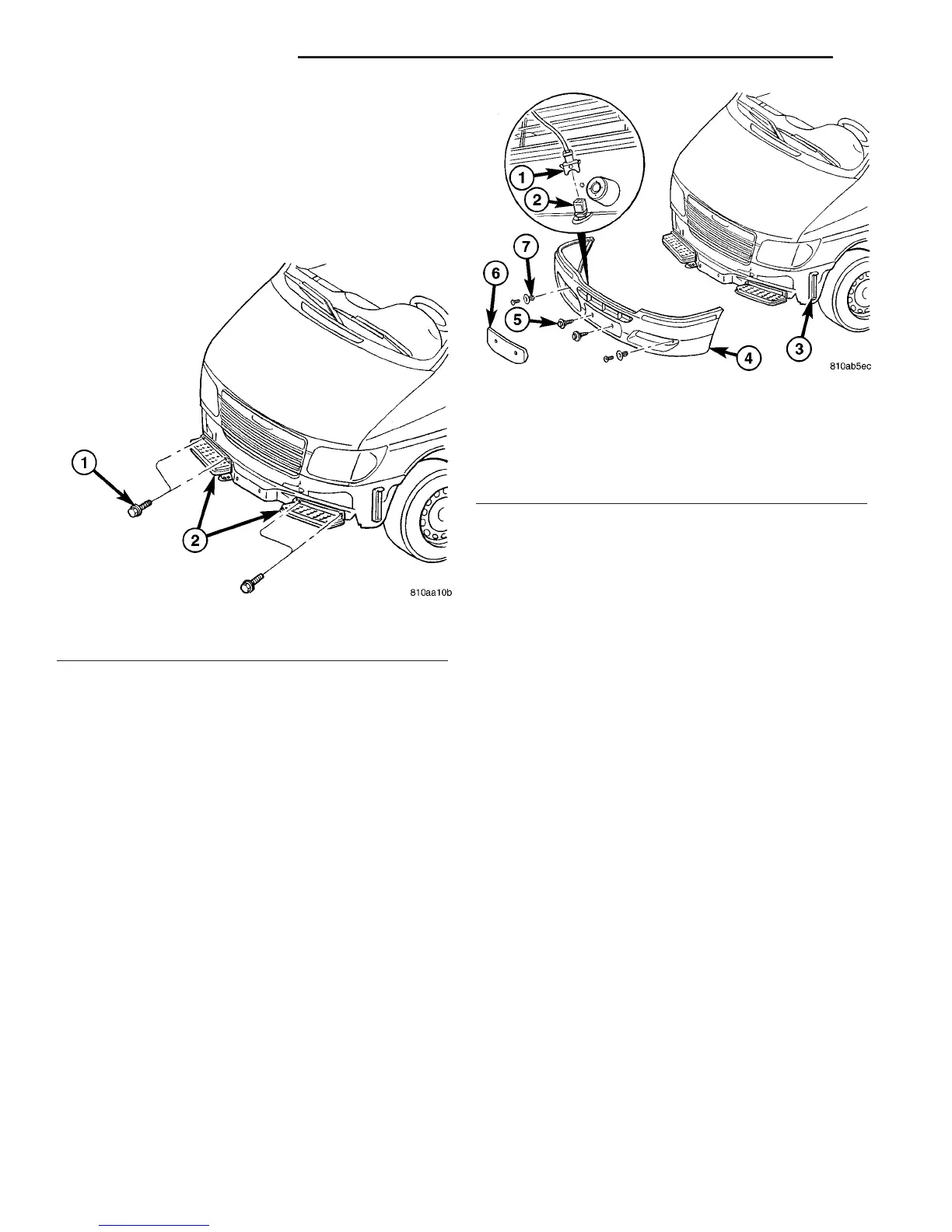

Fig. 1 BUMPER STEPS
1 - BOLTS (2 PER STEP)
2 - STEPS
Fig. 2 FRONT FASCIA
1 - ELECTRICAL CONNECTOR
2 - OUTSIDE TEMPERATURE SENSOR
3 - FASCIA SUPPORT BRACKET
4 - FASCIA
5 - SCREWS (2)
6 - COVER
7 - PUSH PIN FASTENERS
