TWO / THREE - PIECE PROPELLER SHAFT
The procedure to measure the propeller shaft
angles involved with a two/three-piece (Fig. 5) propel-
ler shaft is the same as those for a one-piece propel-
ler shaft.

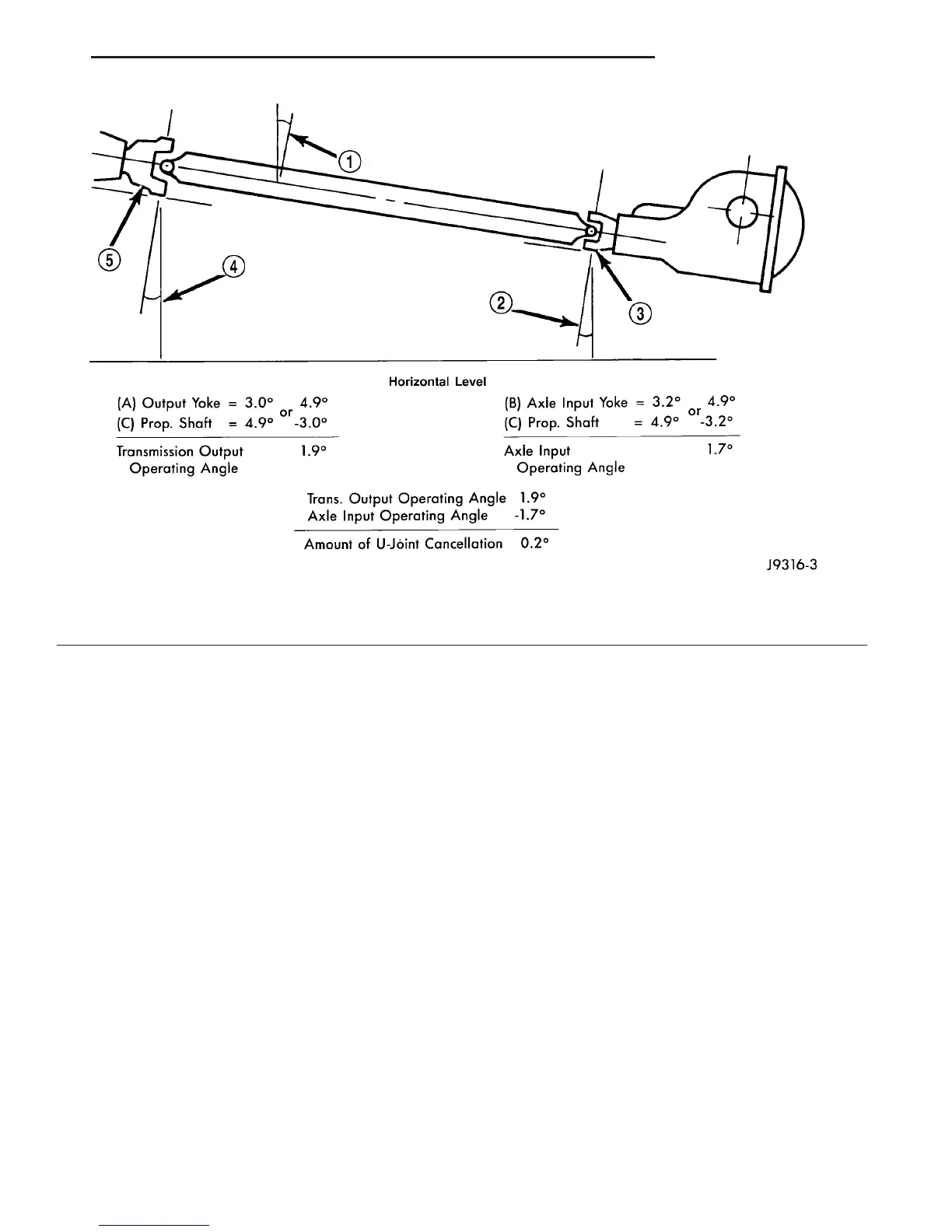

Fig. 4 UNIVERSAL JOINT ANGLE EXAMPLE
1 - 4.9° Angle (C)
2 - 3.2° Angle (B)
3 - Input Yoke
4 - 3.0° Angle (A)
5 - Output Yoke
VA PROPELLER SHAFT 3 - 5
