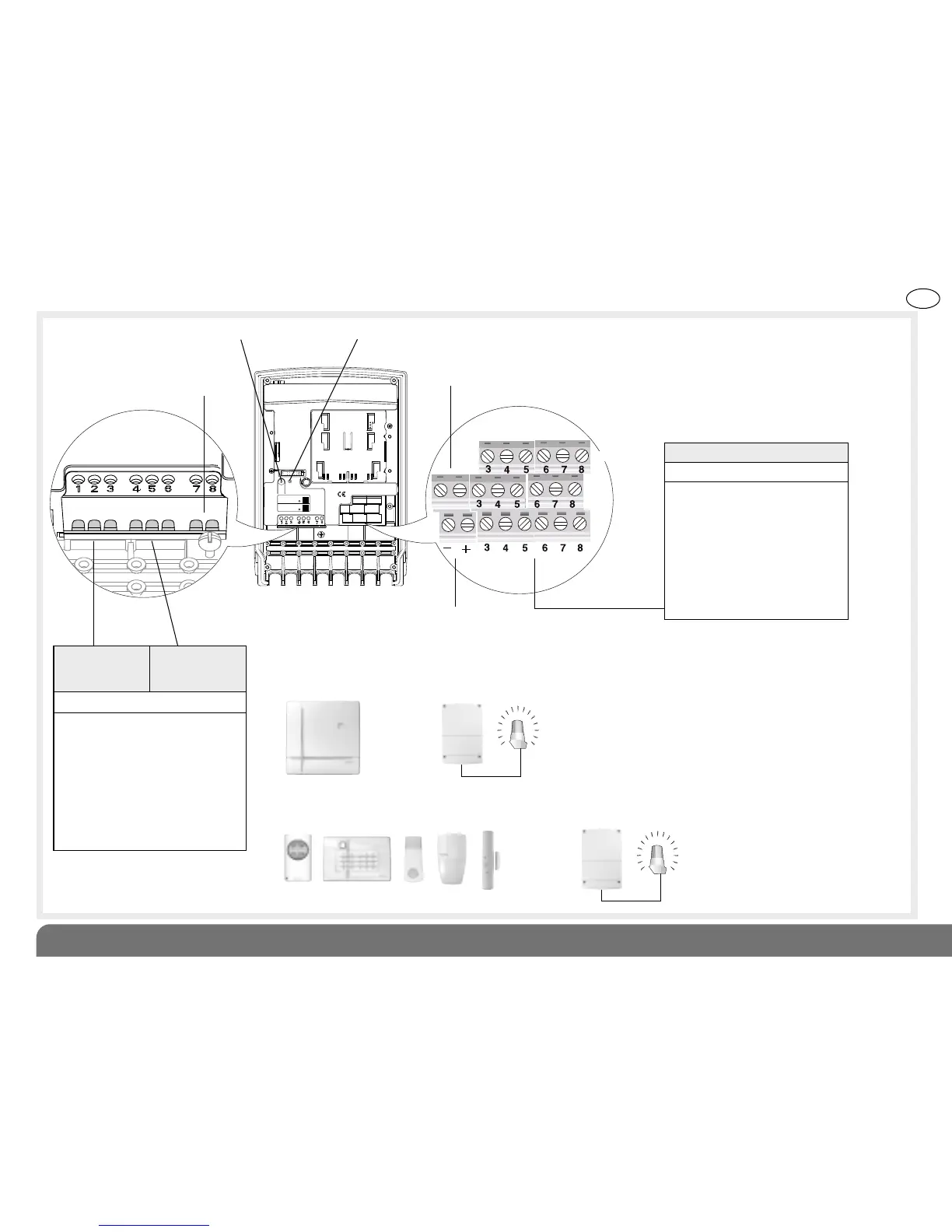

Test button LED
Anti-tamper loop connection
terminal block (loop enabled
only if wired on power-up)
Earthing connection terminal
block (terminals 7 and 8)
IMPORTANT: the two
terminals are connected
12 V DC external power supply terminal block
NO C NC NO C NC
Output 1
(terminals 1,
2 and 3)
Output 2
(terminals 4,
5 and 6)
2 high power outputs
• toggle switch
• ON/OFF mode
• 1.3 s pulse mode
• 2.5 s pulse mode
• timer for 5 durations:
- 10 s
- 90 s
- 3 min
- 15 min
- 30 min
Outputs 3 to 8
6 low power outputs
• toggle switch
• ON/OFF mode
• 1.3 s pulse mode
• 2.5 s pulse mode
• timer for 5 durations:
- 10 s
- 90 s
- 3 min
- 15 min
- 30 min
{
{
{
{
{
{
NO
C
NC
It is controlled:
• by the control panel if an alarm is triggered in order to activate various deterrents
and additional alerts (lighting, smoke generation, etc.),
• by other products directly (remote control units, keypads, pendants or detectors).
Refer to chapters:
• 3.1 Programming the receiver to be recognised
by the control panel
• 4.1 Setting the parameters of a receiver recognised
by a control panel
)))))
Refer to chapters:
• 3.2 Programming a product
to be recognised by the receiver
• 4.2 Setting the parameters
of a receiver recognised by
another product
)))))
AND/OR
