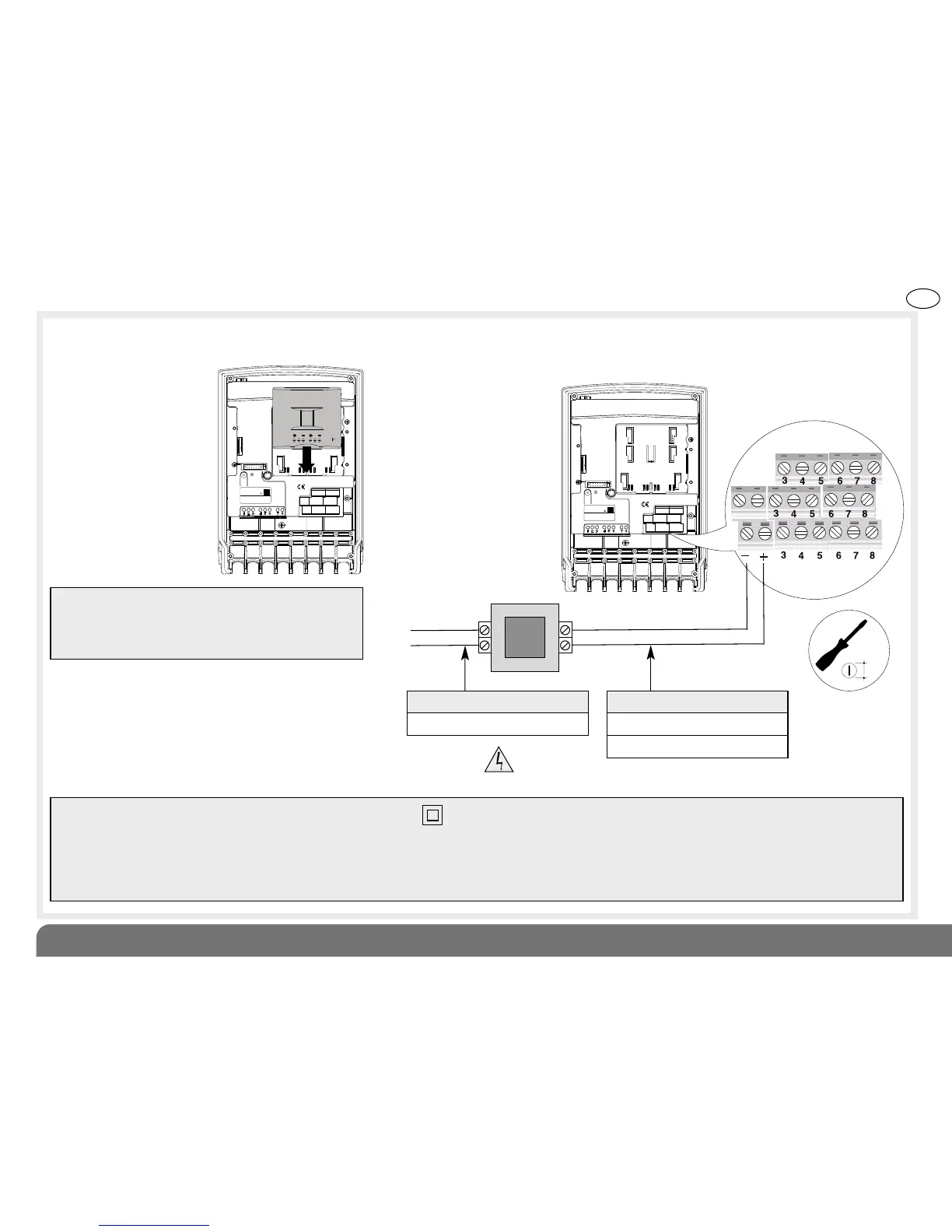

3. Two types of power supply are possible.
• Lithium battery pack
Connect the lithium
pack to its base. The
receiver beeps and
the LED lights up
green for 2 s.
• Power supply
Connect a 12 V DC
power supply
(10 V DC min/
15 V DC max) to
terminal blocks 1
and 2. The receiver
beeps and the LED
lights up green
for 2 s.
SH710AX
A1250A04823
3.5
SH710AX
A1250A04823
Trans-
former
12 V DC output230 V input
Cable length and cross-section
0 to 25 m fi 0.75 mm
2
Cable length and cross-section
0 to 10 m fi 0.32 mm
2
10 to 25 m fi 0.75 mm
2
IMPORTANT: the LED flashes red every 2 s. if
the magnet-based anti-removal system has not
been properly installed (see chapter 5.3 Fixing
the device in place).
Electrical shock hazard
OR
IMPORTANT
• The power supply used must bear the double insulation symbol (230 V power supply without earthing connection), 12 V/10 VA min.
• The power supply must be protected upstream by a circuit that can be isolated by a 16 A device.
• Make sure the battery is connected the right way round.
• Do not connect the external DC power supply at the same time as the lithium battery pack.
• Do not insert another source of power (power supplys, etc.) in the receiver box other than the power supplies intended; electrical disturbance and
power supply overheating can lead to receiver malfunctioning.
