Daitsu ASD7UC - Parts and Functions

ENGLISH
54
ASD7UC ( DS-7UC DOS-7UC )
ASD9UC ( DS-9UC DOS-9UC )
ASD12UC ( DS-12UC DOS-12UC )
Outdoor unit
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
41
1
2
3
4
2
3
4
1
2
2
3

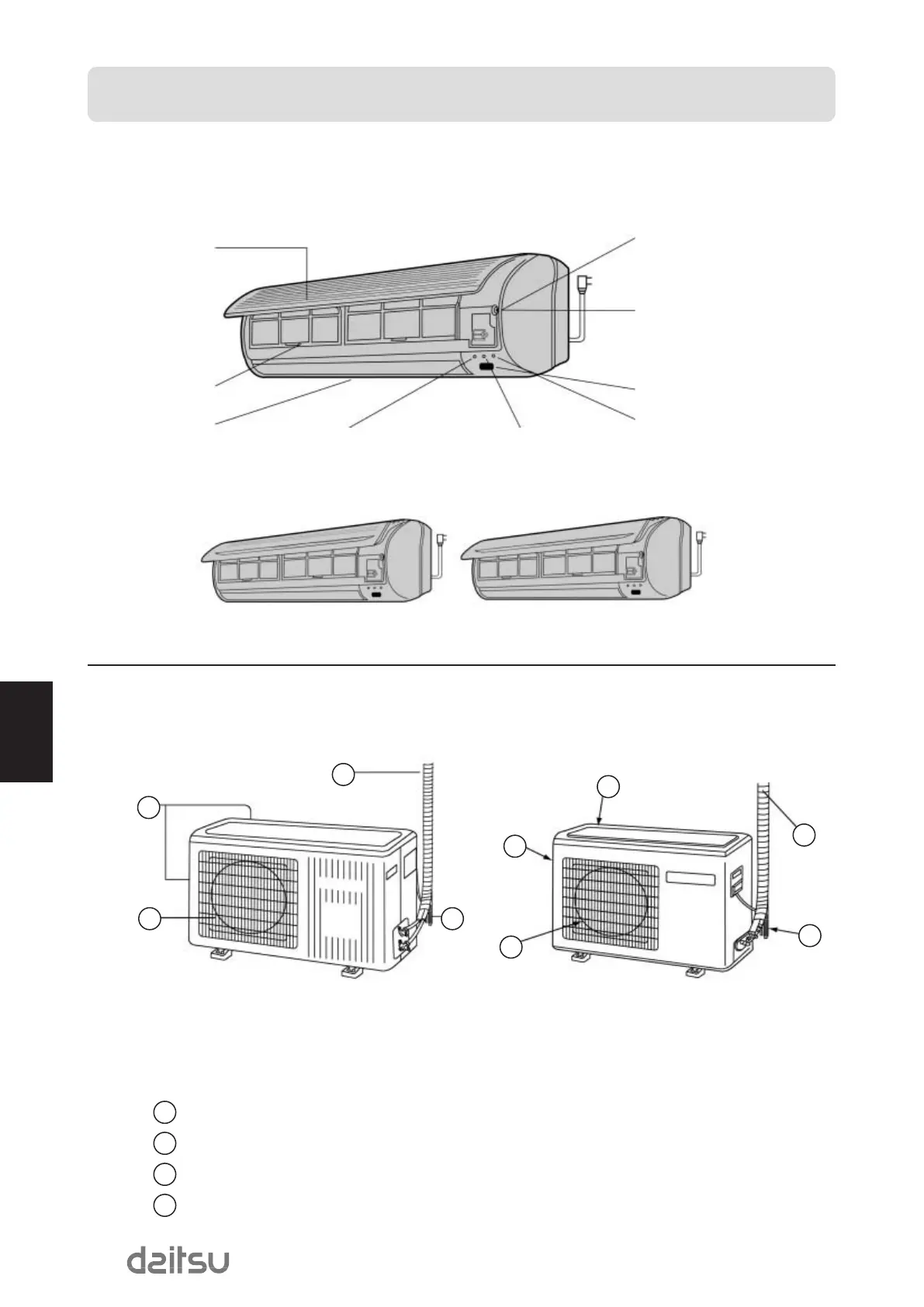

Indoor Unit
Inlet grille
Air filter
Vertical flap
Use remote controller to
adjust up and down air
flow. (Don't adjust it
manually.)
Power indicator
Lights up when unit starts.
Timer mode indicator
Lights up when Timer operation
is selected.
Test running switch (manual)
Used only for test running in cooling
when room temp. is below 16ºC.
Don't use it in normal operation.
Emergency switch (manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Operation mode indicator
Lights up during compressor
running.
Actual inlet grille may vary from the one shown in the manual according to the product purchased.
PARTS AND FUNCTIONS
