Dali OBERON C Series - OBERON 1 C Wall Hanging Procedure; OBERON ON-WALL C Wall Hanging Procedure; Rubber Feet and Logo Orientation

OBERON 1C
• Once the preferred speaker
positions have been established,
insert a mounting screw in the wall
on the centre line of the speaker
position, 30mm (1.25inches)
below the speaker top panel.
• Aach the supplied adhesive
rubber feet to the rear corners
of the speakers. Using the rubber
feet reduces the possibili of the
speakers vibrating against the wall.
• The speakers can now be lied
onto the screws so that the screw
heads engage with the keyhole
slots.

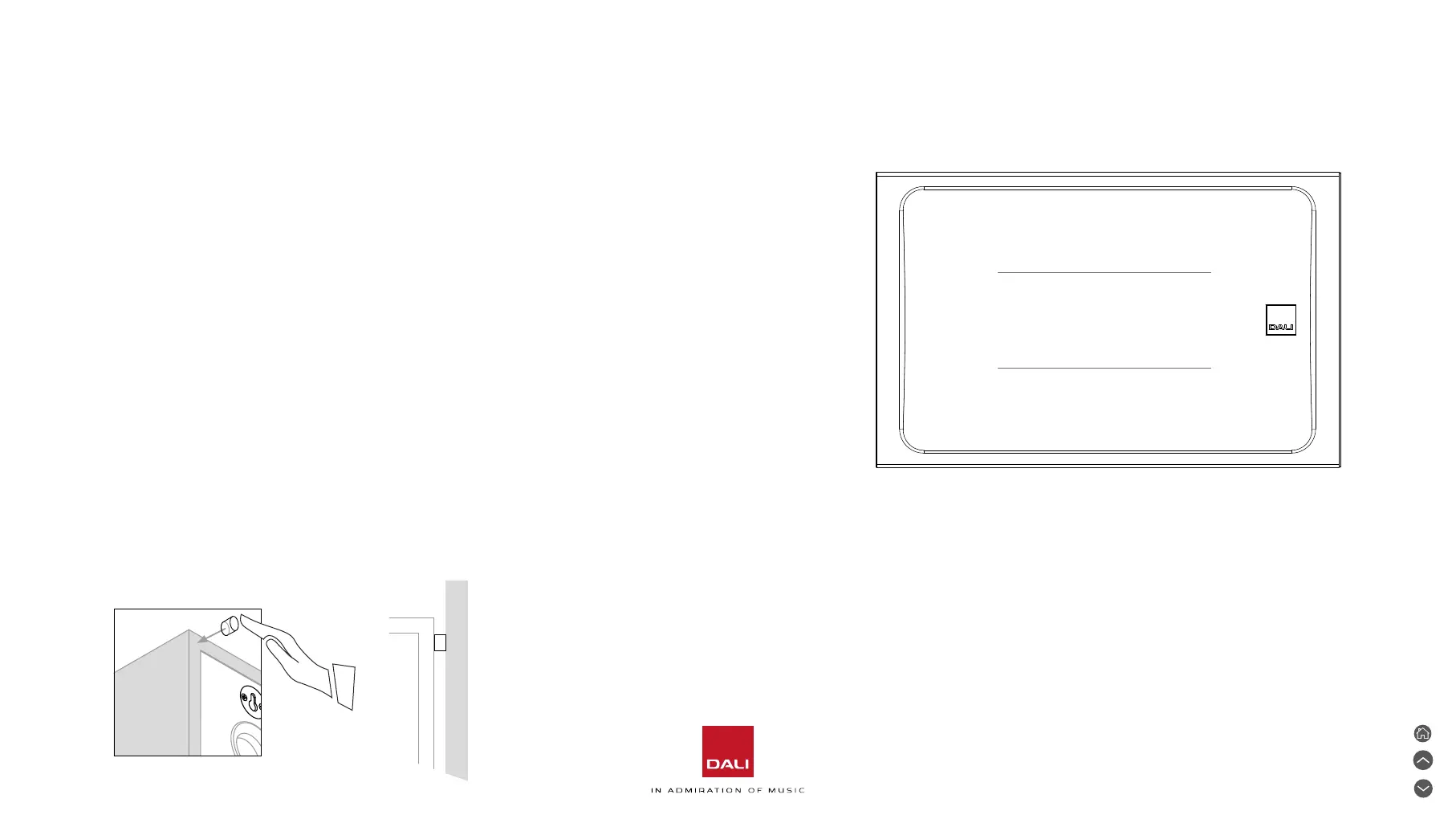

3.4 Using OBERON 1C and ON-WALL C wall hanging features
NOTE:
The front grille DALI logo
can be rotated 90° for
landscape orientation.
OBERON ON-WALL C
• For portrait speaker orientation, once
the preferred speaker positions have
been established, insert a mounting
screw in the wall on the centre
line of the speaker position 30mm
(1.25inches) below the speaker top
panel.
• For landscape speaker orientation,
once the preferred speaker positions
have been established, insert two
mounting screws in the wall 321mm
(12.6inches) apart on the speaker
position horizontal centre line.
• Aach the supplied adhesive rubber
feet to the rear spacing pads of
each speaker. Using the rubber feet
reduces the possibili of the speakers
vibrating against the wall.
• The speakers can now be lied onto
the screws so that the screw heads
engage with the keyhole slots.
x 4
12
