Dali OBERON C Series - Using OBERON 1 C and ON-WALL C Wall Hanging; Wall Fitting Assessment and Screw Specifications

The OBERON 1C and ON-WALL C
incorporate keyhole slots on their rear panels
that enable them to be directly wall-mounted.
Before you begin you must be confident that
the wall and wall fiings you intend to use
are easily able to support the weight of the
speaker. If you are unsure of the suitabili of
the wall, or of your abili to securely insert a
screw, you should seek advice.
OBERON 1C and ON-WALLC wall hanging is
illustrated in Diagram5.
OBERON 1C: Use wall-mounting screws of
3–5mm (0.12-0.20inches) shank diameter
and 10mm( 0.4 inches) maximum head
diameter. Leave 15mm (0.6 inches) screw
length protruding from the wall surface.
OBERON ON-WALL C: Use wall-mounting
screws of 3–5mm (0.12–0.20inches) in shank
diameter and 9mm (0.35inches) maximum
head diameter. Leave 7mm (0.28inches)
screw length protruding from the wall surface.
3.4 Using OBERON 1C and ON-WALL C wall hanging features

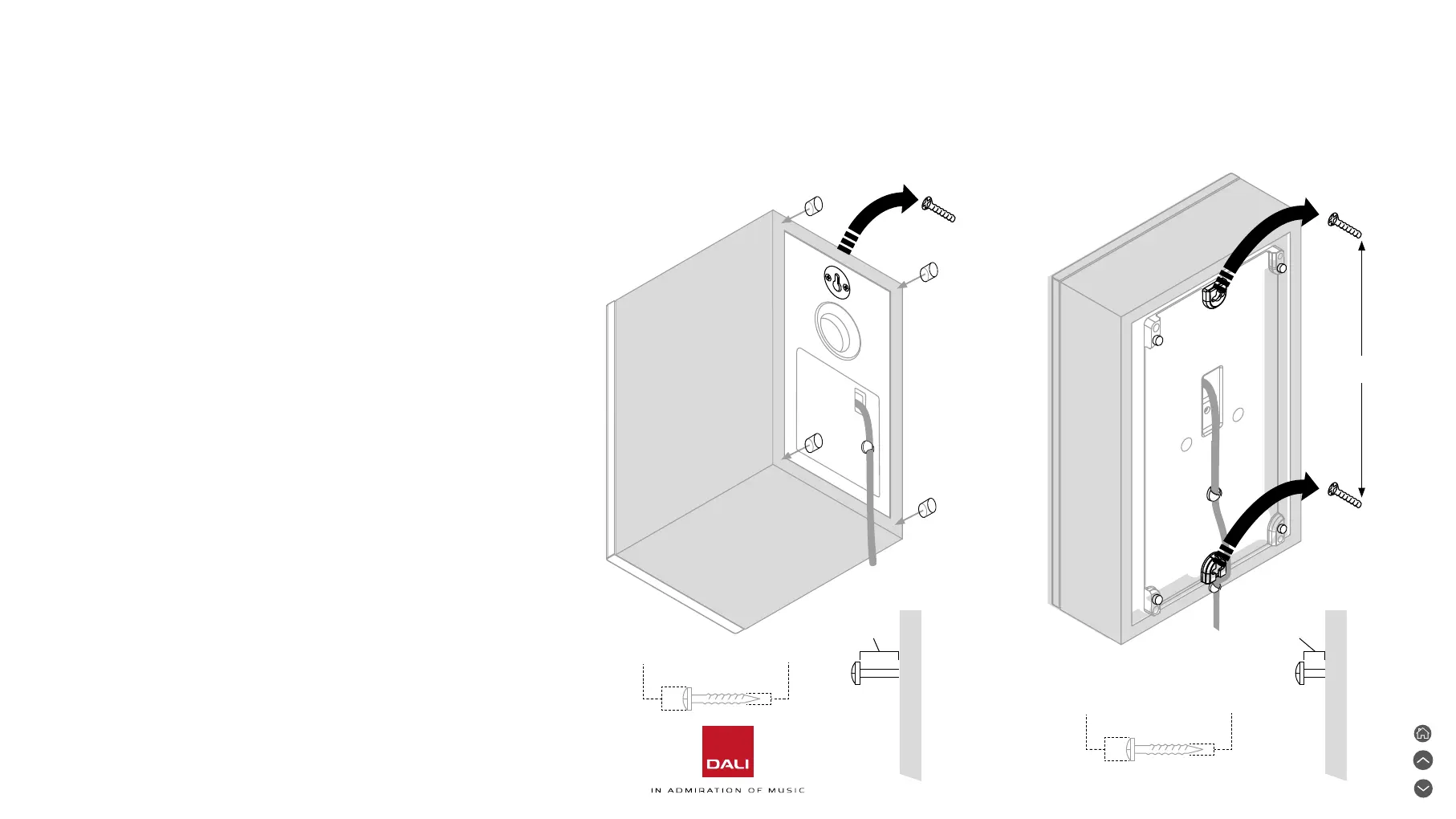

DIAGRAM 5
32cm
7mm15mm
Max. 5mm
Max. 5mm
Max. 9mm
Max. 10mm
11
