Dali OBERON C Series User Manual

7
Although OBERONC
speakers need no wired
signal connection, they
require connection to a
mains power supply. Use
the cables supplied to
connect the speaker rear
panel mains sockets to
mains power. The location
of the mains sockets is
illustrated in the rear panel
Diagram 4.
3. Positioning and Installation

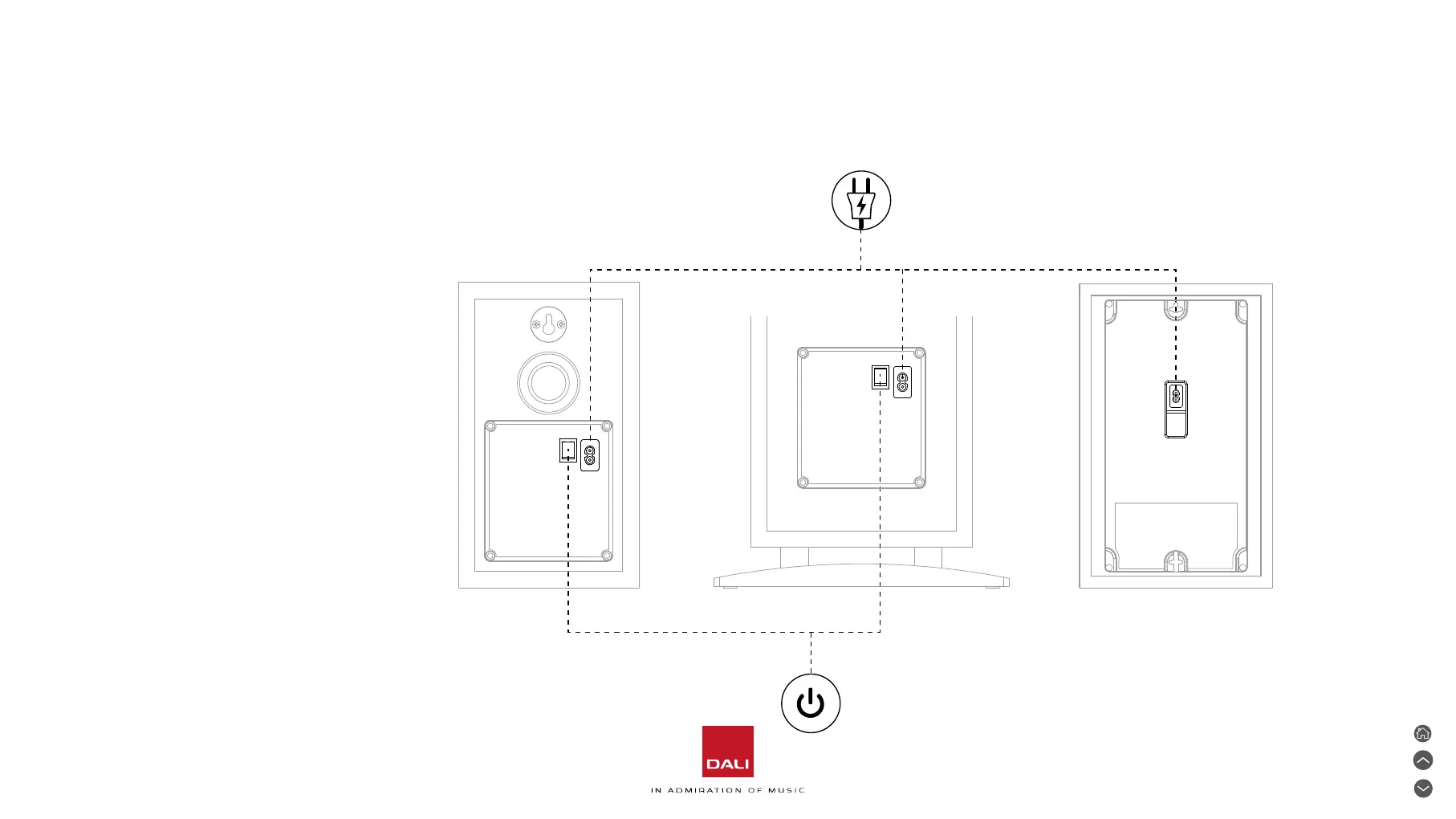

DIAGRAM 4
OBERON 1C OBERON 7C ON-WALL C

Dali OBERON C Series Specifications

General

Woofer	5.25" Wood Fibre Cone
Enclosure Type	Bass Reflex
Type	Active Speaker
Frequency Range	39 - 26, 000 Hz
Inputs	Wireless
Dimensions	162 x 274 x 234 mm
Sensitivity	N/A (Active Speaker)
Impedance	N/A (Active Speaker)
Maximum SPL	106dB
Recommended Amplifier Power	N/A (Active Speaker)
Tweeter	29 mm Soft Textile Dome
