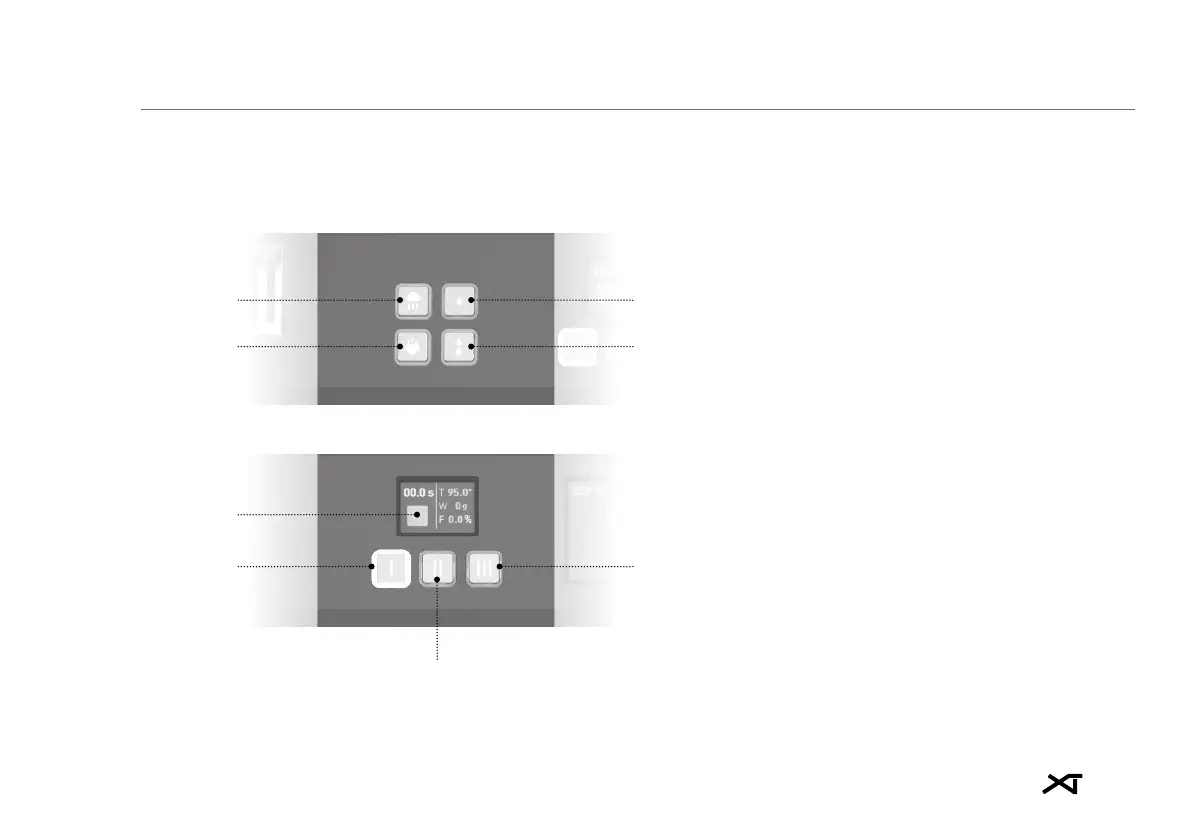

Fig.3
Brew group push-button panel
P0
Selection button 1
(default single small shot
coffee)
P1 Selection button 2
(default double small shot
coffee)
P2 Selection button 3
(default continuous brewing)
Touch-screen button
P3 Selection button 4
(default flush)
Service push-button panel
P4 Cup warmer switch button
P5 Hot water dose button 1
P6 MCS switch button
P7 2 Hot water dose button 2
P5P4
P7P6
P2P0
P1
P3
